Product Description
Titanium, Stainless steel, Nickel pipe flange fittings

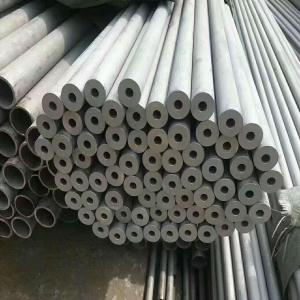

We provide titanium,stainless steel or nickel pipes, balls, valves, elbows, reducers (small/big head), Tee-fittings, flange, as well as other branch connections, casing caps, tube sockets from China.
Titanium, Stainless steel, Nickel pipe flange fittings
We provide titanium,stainless steel or nickel pipes, balls, valves, elbows, reducers (small/big head), Tee-fittings, flange, as well as other branch connections, casing caps, tube sockets from China.
- integral pipe flange, steel pipe flange, threaded flange, slip-on flange (SO); slip-on welding flange, socket welding flange, lap joint flange (LJF) , welding neck flange (WNF), blind flange, blind, orifice flange, reducing flange, pad type flange, loose hubbed flange, welding plate flange, welding neck collar, welding-on collar, stub end, lap, lapped pipe end, loose plate flange
- Elbows of 45 °, 90 °, 180 ° and any arbitrary bending from titanium, nickel and other alloys, Hastelloy alloys as well as other special metals.
- DN80-DN1200 welded pipes of titanium, nickel and other alloys, Hastelloy alloys as well as other special metals.
- We implement and refer to technical standards such as GB12459-2000, GB13401-1990, HG3651-1999, and ASTM B363.
- Titanium Fittings
DN Outer diameter D (end) Dimensions (center to end) Dimensions (center to center) Dimensions (back to end) 45° Elbow H 90° Elbow F 180° Elbow P 180° Elbow K A series B series Long radius Long radius Short radius Long radius Short radius Long radius Short radius 15 21.3 18 16 38 -- 76 -- 48 -- 20 26.9 25 16 38 -- 76 -- 51 -- 25 33.7 32 16 38 25 76 51 56 41 32 42.4 38 20 48 32 95 64 70 52 40 48.3 45 24 57 38 114 76 83 62 50 60.3 57 32 76 51 152 102 106 81 65 76 76 40 95 64 191 127 132 100 80 89 89 47 114 76 229 152 159 121 90 102 -- 55 133 89 267 178 184 140 100 114 108 63 152 102 305 203 210 159 125 140 133 79 190 127 381 254 262 197 150 168 159 95 229 152 457 305 313 237 200 219 219 126 305 203 610 406 414 313 250 273 273 158 381 254 762 508 518 391 300 324 325 189 457 305 914 610 619 467 350 356 377 221 533 356 1067 711 711 533 400 406 426 253 610 405 1219 813 813 610 450 457.0 480 284 686 457 1372 914 914 686 500 508 530 316 762 508 1524 1016 1016 762 550 560 - 347 838 560 - - - - 600 610 630 380 914 610 - - - - 650 660 - 410 990 660 - - - - 700 711 720 442 1067 711 - - - - 750 762 - 473 1143 762 - - - - 800 813 820 505 1219 813 - - - - 850 864 - 537 1295 864 - - - - 900 914 920 568 1372 914 - - - - 950 965 - 600 1448 965 - - - - 1000 1016 1020 631 1524 1016 - - - - 1050 1067 - 663 1600 1067 - - - - 1100 1120 1120 694 1676 1120 - - - - 1150 1168 - 726 1753 1168 - - - - 1200 1220 1220 758 1829 1220 - - - -
Please inquire about other fittings specifications.
Titanium Flange Material Grade Gr1, Gr1, Gr2,Gr7, Gr9, Gr23, TI-6Al4v, Certification ISO9001:2008 BV Standard ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5 size 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) Pressure Class PN0.25~32Mpa (DIN) PN6,PN10,PN16,PN25 though PN250 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB Technique Forged and CNC Machined type WNRF , SORF , BLIND ,SW, PL Flange surface FF,RF,TG,RJ etc Application products used in cars, glasses,medical equipment , electronics , petrochemical equipment Advantage 1. Long service life 2. corrosion -resistant 3.high yeiled strength and tensile strength.
ti valve, ti elbow, ti fitting, ti flange, integral pipe flange, steel pipe flange, threaded flange, slip-on flange (SO); slip-on welding flange, socket welding flange, lap joint flange (LJF) , welding neck flange (WNF), blind flange, orifice flange, reducing flange, pad type flange, loose hubbed flange, welding plate flange, welding neck collar, welding-on collar, stub end, lap, lapped pipe end,loose plate flange,titanium or nickel ball, reducer,branch connections, casing cap, tube socket, Ti pump
China
