The belt conveyors consist of standard parts and they have the advantages of large transfer quantity, simple structure, and easy maintenance. They are widely used in mining, metallurgy and coal industry to transfer sandy or lump materials or packaged materials.
(1)Divided by driving method:
-It's driven by cycloidal pinwheel reducer (with outdoor motor ) and chain-drive mechanism.
-STDJ II Mechanical Drive Series
-It adopts upside-down reducer and belt-drive mechanize.
-STD-Electric Rotor Drive Series. It's driven by electric rotor.
(2)Divided by Structures: U-steel,L-steel,TRUSS.
(1)Divided by driving method:
-It's driven by cycloidal pinwheel reducer (with outdoor motor ) and chain-drive mechanism.
-STDJ II Mechanical Drive Series
-It adopts upside-down reducer and belt-drive mechanize.
-STD-Electric Rotor Drive Series. It's driven by electric rotor.
(2)Divided by Structures: U-steel,L-steel,TRUSS.

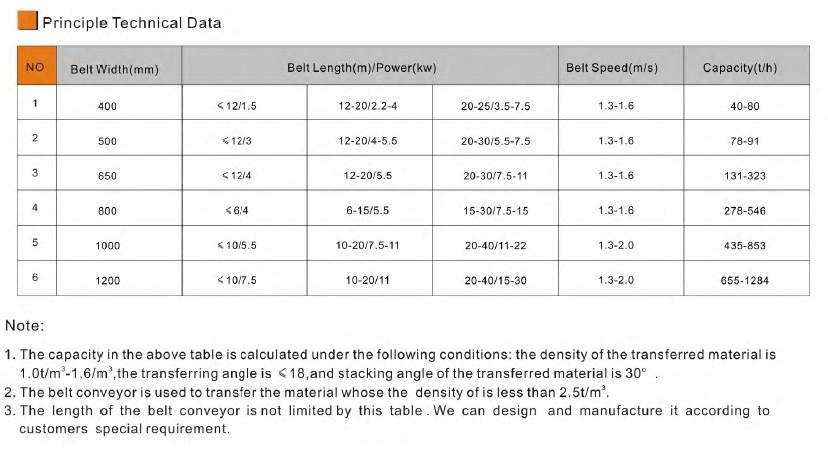

PRODUCT DETAILS
| Belt Width(mm) | Belt Length (m) | Belt Speed(m/S) | Capacity(t/h) |
| 400 | ≤12/1.5 | 0.8-2.0 | 40 - 80 |
| 500 | ≤12/3 | 0.8-2.0 | 40 - 80 |
| 650 | ≤12/4 | 0.8-2.0 | 131- 323 |
| 800 | ≤6/4 | 1.0-2.0 | 278 - 546 |
| 1000 | ≤10/5 | 1.0-2.0 | 435 - 853 |
| 1200 | ≤10/7.5 | 1.0-2.0 | 655 - 1284 |
