I.Equipment Application:
Mainly used for cable production line for single or double traction before and after use.II.Structure character:
1.The whole frame is made of high qualified steel plate after bending, welding, novel appearance.2.Equipment used motor, gearbox, reducer, helical gear up and down, the shoe wheel hard drive structure, stable transmission, Bearing capacity big, easy to maintain.
3.All series of 200 kg to 15000 kg more than ten specifications, there are two speed or Z4 dc motor frequency conversion motor Structure for the user to choose from.
4.Equipped with electronic meter, can display the line speed and meter length in a timely manner.
5.With the earth's axis transmission structure for users in cabling, armored, copper tape screened and round bag production line.
6.Tension tractor adopts magnetic powder tension control, used for insulated and sheathed extrusion line traction before use, zhang On-line instantaneous adjustable, prevent bruises in the sink after wire extrusion, and effectively solve the synchronization problems And the pay-off tension unevenness affect wire diameter.
7.Small tractor equipped with mobile rack or to move the overall structure, convenient user used in the special process, and Improve the crawler repeat service life.

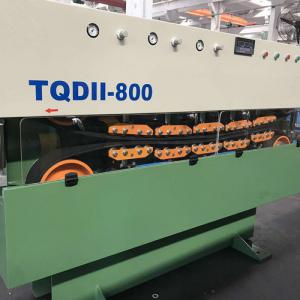

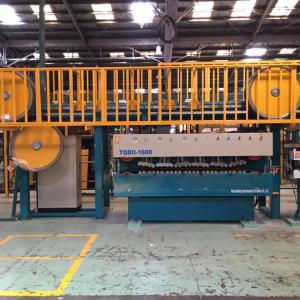

III.Main specification of TQD series pneumatic belt caterpillar
| Type & Spec. | Type 200 | Type 300 | Type 500 | Type 800 | Type 1250 | Type 1600 |
| Dia. of cable through max(mm) | 2~20 | 5~25 | 5~40 | 8~60 | 10~80 | 15~100 |
| Max. traction force(kg) | 200 | 300 | 500 | 800 | 1250 | 1600 |
| Speed(m/min) | 150 | 150 | 100 | 100 | 80 | 80 |
| Belt grip lengh(mm) | 520 | 620 | 750 | 1200 | 1500 | 1900 |
| Belt width(mm) | 70 | 70 | 80 | 100 | 120 | 120 |
| Number of cylinder(pair) | 3 | 3 | 3 | 5 | 5 | 6 |
| Motor power(kw) | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 |
| Motor speed(rpm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Center height(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Overall dimension (LxWxH) | 1450x720x1500 | 1500x720x1500 | 1800x1000x1600 | 2500x1150x1650 | 2750x1150x1700 | 3100x1150x1700 |
| Type & Spec. | Type 2000 | Type 2500 | Type 3200 | Type 4000 |
| Dia. of cable through max(mm) | 20~120 | 20~130 | 25~150 | 30~180 |
| Max. traction force(kg) | 2000 | 2500 | 3200 | 4000 |
| Speed(m/min) | 60 | 60 | 45 | 40 |
| Belt grip lengh(mm) | 2100 | 2400 | 2700 | 2900 |
| Belt width(mm) | 135 | 140 | 145 | 165 |
| Number of cylinder(pair) | 7 | 8 | 9 | 9 |
| Motor power(kw) | 11 | 15 | 15 | 18.5 |
| Motor speed(rpm) | 1500 | 1500 | 1500 | 1500 |
| Center height(mm) | 1000 | 1000 | 1000 | 1000 |
| Overall dimension (LxWxH) | 3450x1200x1750 | 3800x1200x1750 | 4500x1280x1820 | 4600x1300x1900 |
| Type & Spec. | Type 5000 | Type 6000 | Type 10000 | Type 15000 |
| Dia. of cable through max(mm) | 50~200 | 60~200 | 80~300 | 80~300 |
| Max. traction force(kg) | 5000 | 6000 | 10000 | 15000 |
| Speed(m/min) | 30 | 25 | 25 | 20 |
| Belt grip lengh(mm) | 3250 | 3600 | 4800 | 5000 |
| Belt width(mm) | 165 | 170 | 240 | 180x2(articale)90x2 articale |
| Number of cylinder(pair) | 10 | 11 | 14 | 14+14 |
| Motor power(kw) | 22 | 30 | 37 | 55 |
| Motor speed(rpm) | 1500 | 1500 | 1500 | 1500 |
| Center height(mm) | 1000 | 1000 | 1000 | 1000 |
| Overall dimension (LxWxH) | 5000x1350x1950 | 5350x1400x1950 | 7400x1630x2100 | 7500x2800x2200 |
