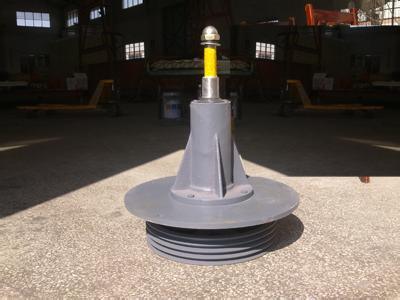

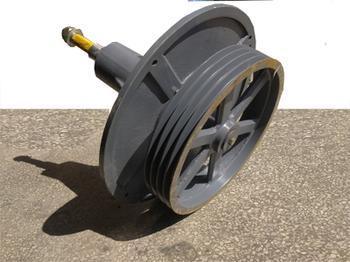

Square Type Cooling Tower Belt Reducer Specification.
Model
| Nos.of Groove | H | H1 | H2 | H3 | Ø1 | Ø2 | Ø3 | Ø4 | N-ØD | K | T |
ST-8
|
4 |
85 |
55 |
420 |
105 |
430 |
580 |
540 |
38 |
4-Ø14 |
41 |
8 |
ST-10
|
4 |
85 |
55 |
480 |
117 |
430 |
580 |
540 |
50 |
4-Ø14 |
53 |
12 |
ST-12
|
4 |
85 |
205 |
700 |
133 |
608 |
730 |
688 |
50 |
4-Ø16 |
53 |
12 |
ST-14
|
5 |
105 |
205 |
700 |
143 |
660 |
765 |
720 |
60 |
4-Ø18 |
63 |
12 |
ST-16
|
8 |
165 |
205 |
800 |
153 |
660 |
765 |
720 |
75 |
4-Ø18 |
79.5 |
20 |
Remark: Above installation data is only for reference. Customization is acceptable
we supply speed reducer for Newin, Marley, Liangchi, BAC cooling tower
