JS500 concrete mixing agitator
JS500 concrete mixing agitator
Description:

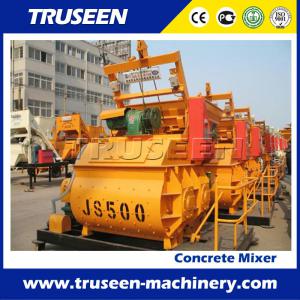

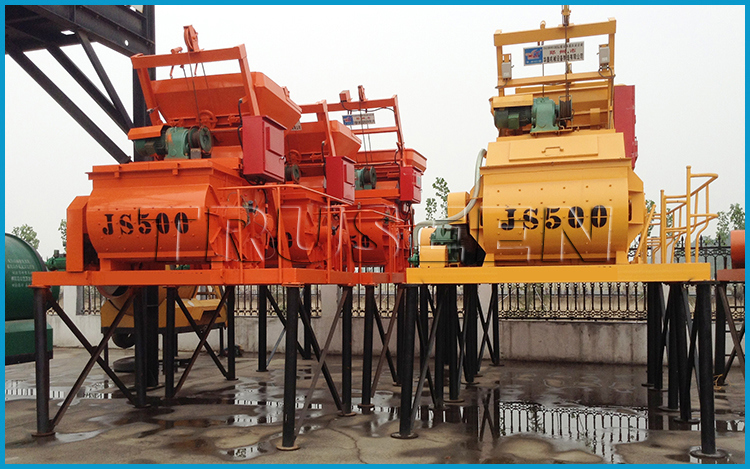

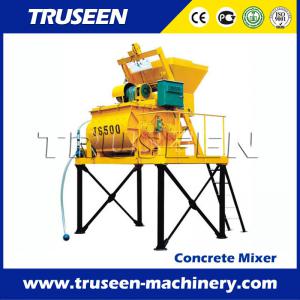

- JS500 Type of Concrete Mixer Price is twin shaft horizontal forced type mixer, and it is easy to operate and work stably.
- The concrete mixer can mix dry hard concrete, plastic concrete, flowing concrete, light weight aggregate concrete and various mortar.
- JS500 Type of Concrete Mixer Price has dual superiorities of working solely or forming simple concrete mixing plant with PLD series batching machine, and can also mixer for HZS25 concrete batching plant
Parameters
| Model | JS500 | JS750 | JS1000 | |
| Discharge capacity(L) | 500 | 750 | 1000 | |
| Charge capacity(L) | 800 | 1200 | 1600 | |
| Theory productivity(m3/h) | ≥25 | ≥35 | ≥60/50 | |
| Max. aggregate diameter(mm) | ≤40/50 | ≤40/60 | ≤60/80 | |
| Working cycle time(s) | 72 | 72 | 60/72 | |
| Total weight(kg) | 4000 | 5500 | 7800 | |
| Outline dimension(mm) | Transporting | 3050×2530×2680 | 3110×2620 ×2580 | 3800×2200×2800 |
| Operating | 4461×3050×4180 | 5025×3100×5680 | 10460×3400×9050 | |
| Agitating vane | Rotational speed | 26(r/min) | 26(r/min) | 29.6(r/min) |
| Count | 2×7 | 2×7 | 2×8 | |
| Agitator motor | Model | Y180M-4 | Y200L-4 | Y180L-4 |
| Power(KW) | 18.5 | 30 | 2×18.5 | |

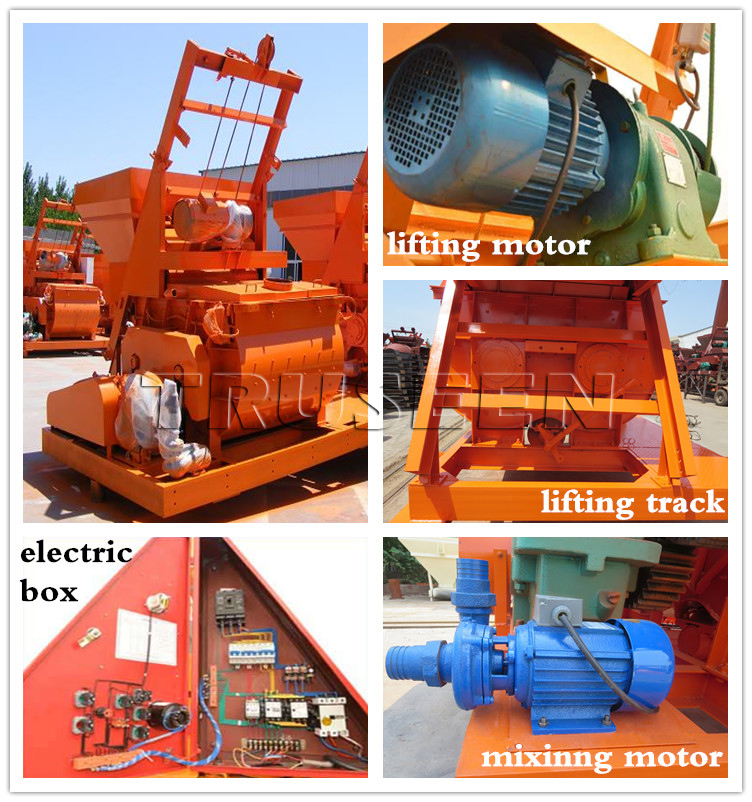

| Hoist motor | Model | YEZ132S-4 | YEZ132M-4 | YEZ160L-4 |
| Power(KW) | 5.5 | 7.5 | 15 | |
| Pump motor | Model | BL12-12-1.1 | BL18-16-1.1 | 80JDB-45 |
| Power(KW) | 1.1 | 1.1 | 3 |
Advantages
- JS concrete mixer with high mixing efficiency, good uniformity, good sealing performance, safety, and reliability etc.advantages.

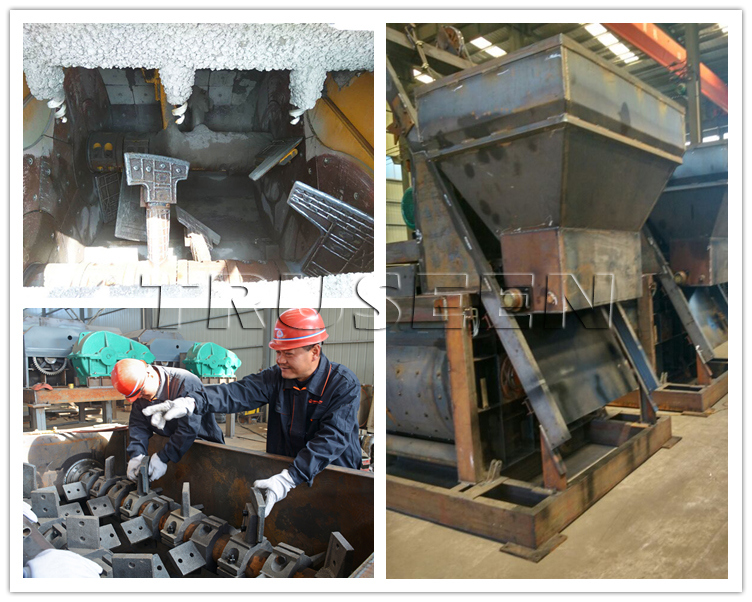

- Mixing barrel is welded together, mixing cylinder liner inlaid with fine kinds, with countersunk head screws are firmly coupled with the barrel. Ensure the liner interchangeability.
- Spindle seal with new Xinfeng patented sealing technology, multiple seals, imported original seal, ensure the sealing reliability.

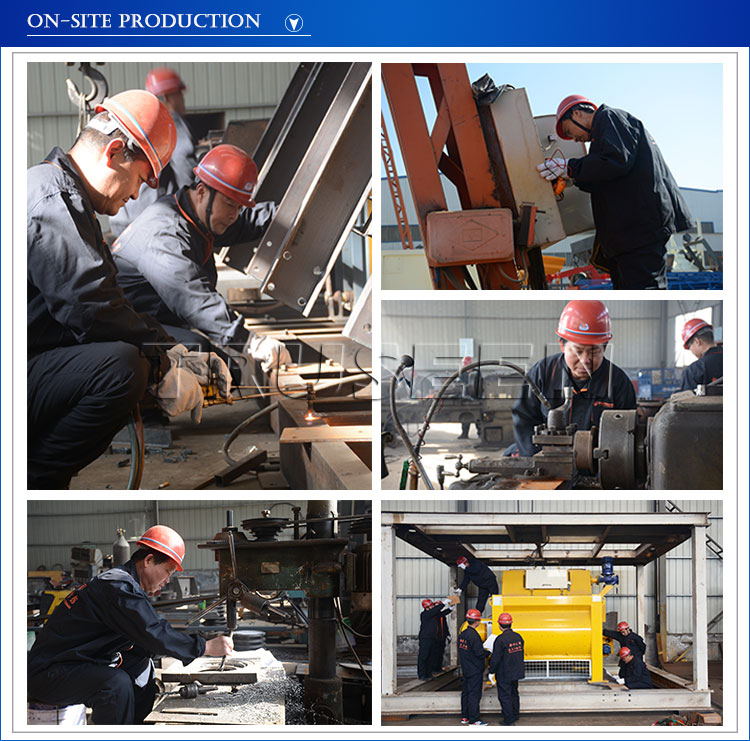

- Each piece is bent, molded, cut, welded and painted at XINFENG's factory. Before leaving the plant, an extensive quality control check is completed to ensure every unit performs as promised
Service:1. Training the operator for free in our factory.
2. Professional suggestions on your plant's layout, according to your construction site.
3. Foundation drawing for you to prepare foundations firstly.
4. Under the condition of foundation ready, professional engineer can visit your site, guide the installation according to your requirements.
