2017 Hot Sale Base Oil Agitator Machine for Sale
I.2017 Hot Sale Base Oil Agitator Machine for Sale
Introduction
2017 Hot Sale Base Oil Agitator Machine for Sale is the last important step in lubricating oil making. This YNZSY-JB equipment can put base oil and kinds of additives into the blending tank with certain proportion and order by vacuum reverse-absorption. It mixes base oil with additives by blender while recycling by pumps. With help of Lube Oil Blending Plant, final lubricating oil is good at viscosity, low-temperature nature, pour point, anti-oxidation in higher temperature, stability and flash point.
II. 2017 Hot Sale Base Oil Agitator Machine for Sale
Technical Parameter
Name:2017 Hot Sale Base Oil Agitator Machine for Sale | Qty (set): | ||
Site: indoor use | Model: YNZSY-JB250 | ||
Item | Techniques | Remarks | |
Medium | Main component | Base oil, additives |
|
Ambient temp. | 0-45ºC | ||
Performance parameter | Working temp. | 40ºC-150ºC | |
Capacity | 250L/Batch | ||
Pressure loss | ≤0.05Mpa | ||
Vacuum degree | -0.06MPa- -0.095MPa | ||
Blending method | Mechanical blending + recycling by pumps | ||
Structure | Combined | ||
Material | Spare parts | Raw material from supplier | |
Pipes | Q235A | ||
other Material | Q235A | ||
others | Base oil/additives input method | Feeding additives automatically + weigh or metering automatically | |
Mean Time Between Failure | ≥3000H |
III. 2017 Hot Sale Base Oil Agitator Machine for Sale
program
1 . main parts of the product

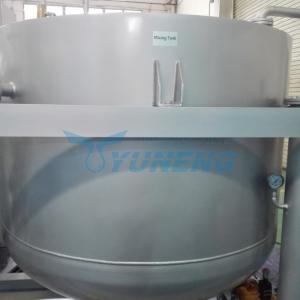

(1) Mixing tank
Loading capacity:250L ( for other loading capacity, please contact me for more information)
(2) Circulating pumping pump
(3) Heater
(4) Heat-transfer oil pump
(5) Weighing system
(6) Vacuum system
(7) Electronic control system
(8) Mechanical stirring type
2. Working environment
environment temperature: 0ºC to +45ºC
Power source: At buyer's option
Control mode: Automatic program control + manual control

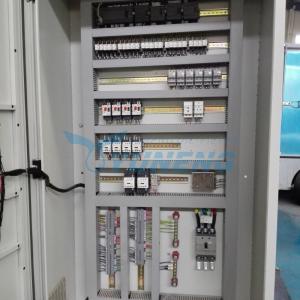

3 Electronic control system
(1)Panel display: Loading capacity; Operating Temperature Status display; Operation mode; Operating state; Running time
(2)Fault Alarm or machine halt: Motor Overload; Fan Motor Overload; motor reverse(APRS Phase inversion controller); control power failure
4 structure of equipment
(1)The equipment is a combination type,composed of mixing tank, frame and additives containing box.
(2)Equipped with a gas condensing unit
(3)When the liquid level in the mixing tank goes beyond security level, the machine will alarm in time.
(4)Equipped with a oil outlet pump
2017 Hot Sale Base Oil Agitator Machine for Sale

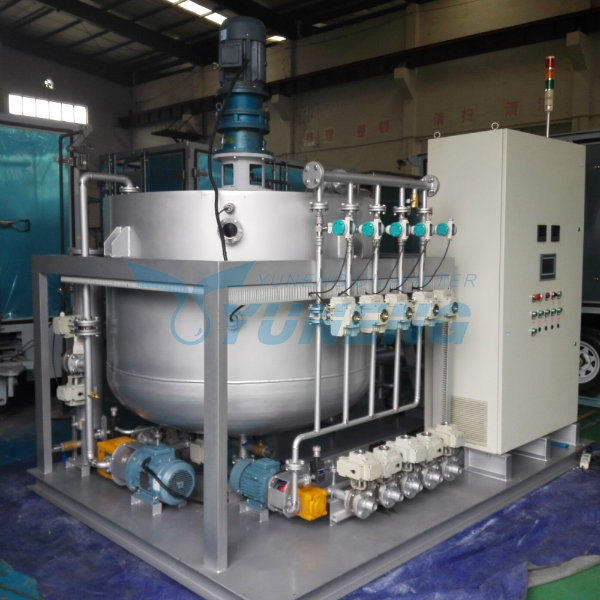

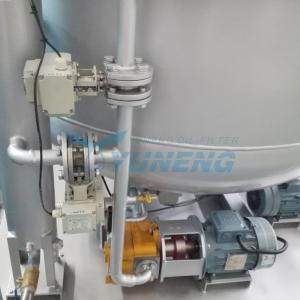

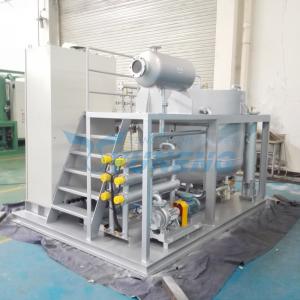

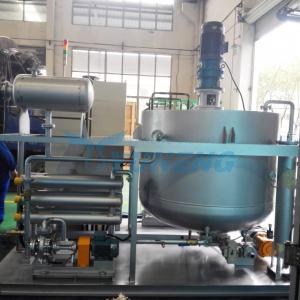

Photo for reference:
Founded in 1997, our company Yuneng has been specialized in designing and manufacturing a series of oil purifier for nearly 20 years, such as transformer oil purifier, air pumping unit, dry air generator, turbine oil purifier, lubricating oil purifier, fire-resistance oil purifier, (EHC oil) , waste oil regeneration machine and etc. The proud history makes Yuneng top supplier in oil purification field in China.
We are also the supplier of the Big Transformer Company TBEA in India, hope we could also be your supplier in the near future.
If you are interested in our products, please get back to me for more details.Thank you.
Free design of fixtures as customers required.
On site staff training for installation and operation of the machine is available.
1. Installation service:
1). The customers can install the machine by themselves. We'll do the debugging on site before shipment and attach the detailed operation manual with the machine,so normally the installation is done by the customers.
2) You can come to our factory before shipment. On the one side, you can inspect the machine before shipping; On the other side, you can receive a free training course at our factory.
3) If you need us to send our engineer to service oversea, please contact us for more details.
