High Shear Emulsifier
Inline High Shear Homogenizing Agitator
Stainless Steel High Shear Emulsifier, You Can Buy Various High Quality Stainless Steel High Shear Emulsifier Products from us

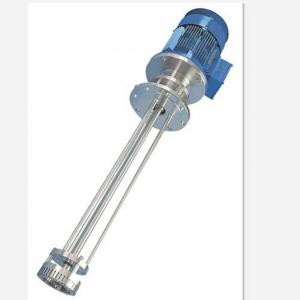

2900RPM high speed emulsifier,
homogenizer agitator
HIGH SHEAR EMULSIFIERS ... multi-functional high shearSanitary stainless steel high shear mixer
Primary functions:

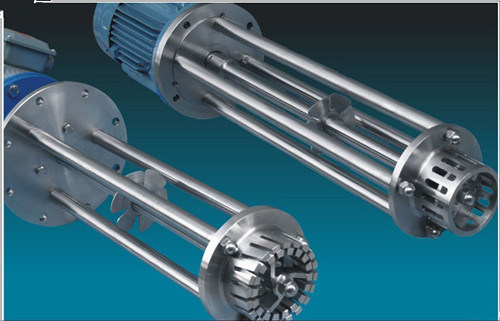

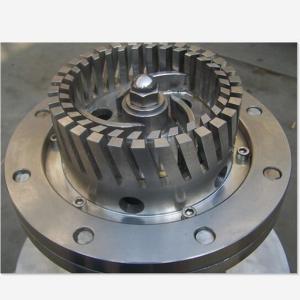

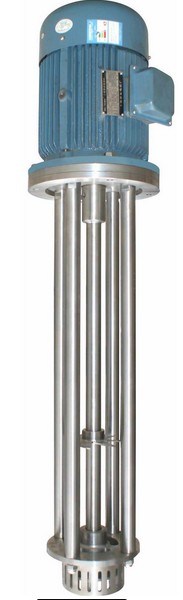

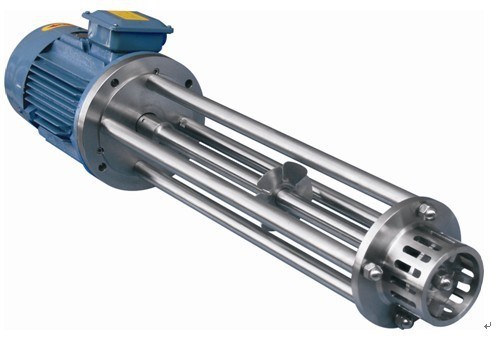

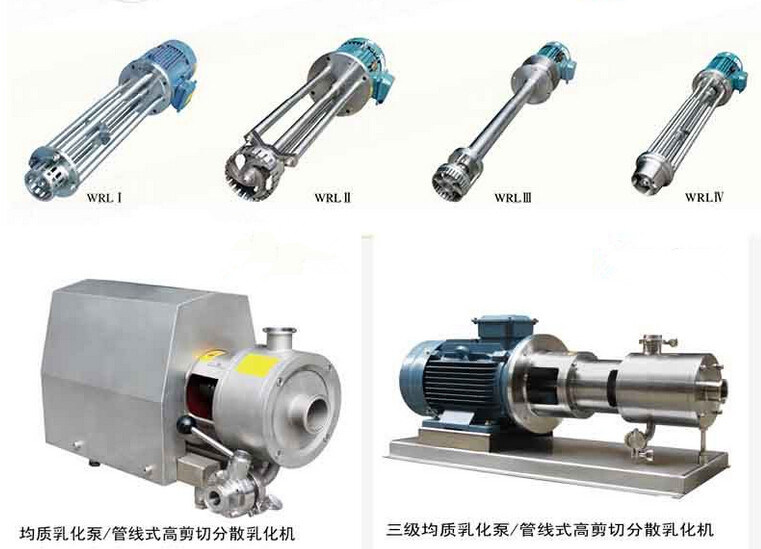

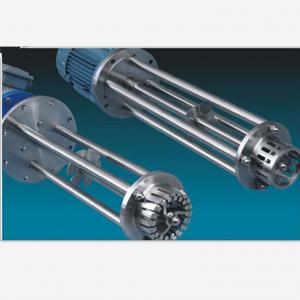

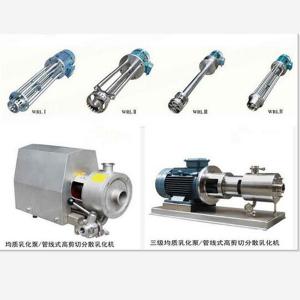

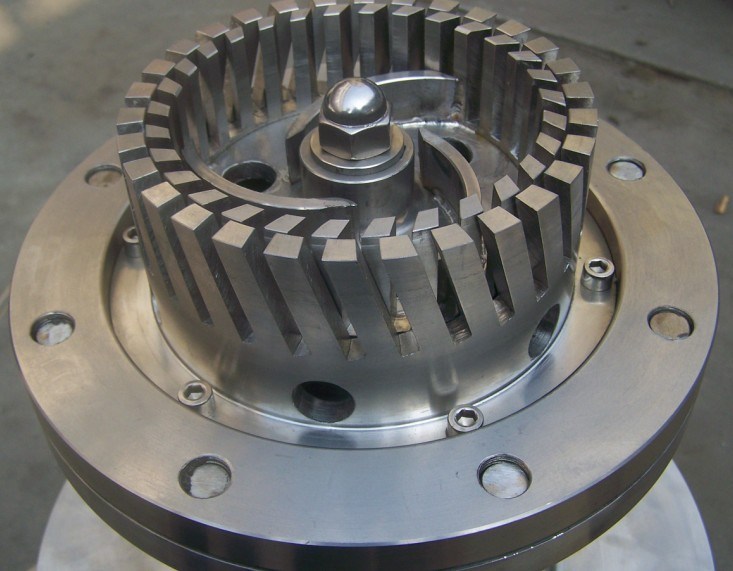

The WRL series of intermittent type high-shearing homogenization emulsion machine are high-powered stirring systems. Lower part has particular stator-rotor structure to make the material be high-shearing dispersed, homogenized and emulsified intensively. Middle has high speed dispersed propeller-blade to assist with blending and homogenization. Upside has liquid flow under press type dispersed propeller-blade to control flow fluid effectively and process more thoroughly.
The equipment is applicable to blending, dispersing, homogenization and emulsification of fluid liquid material.
Application scope:
Food industry: Edible coloring matter, chocolate coating, filling food, syrup, flavoring, various additive, etc;
Medicine industry: Medical ointment, ointment, lotion, cream, various vitamin, etc
Chemical industry concerned with product of daily use: Shampoo, detergent, cream, tooth paste, paraffin liquor, hair dye, etc.
Adhesive industry: Rubber liquor, polyester sulfured, silicone, hot-melt adhesive, polyurethane, etc.
Inline High Shear Homogenizing Agitator
Inline High Shear Homogenizing Agitator
Stainless Steel High Shear Emulsifier, You Can Buy Various High Quality Stainless Steel High Shear Emulsifier Products from us
2900RPM high speed emulsifier,
homogenizer agitator
HIGH SHEAR EMULSIFIERS ... multi-functional high shearSanitary stainless steel high shear mixer
Primary functions:
The WRL series of intermittent type high-shearing homogenization emulsion machine are high-powered stirring systems. Lower part has particular stator-rotor structure to make the material be high-shearing dispersed, homogenized and emulsified intensively. Middle has high speed dispersed propeller-blade to assist with blending and homogenization. Upside has liquid flow under press type dispersed propeller-blade to control flow fluid effectively and process more thoroughly.
The equipment is applicable to blending, dispersing, homogenization and emulsification of fluid liquid material.
Application scope:
Food industry: Edible coloring matter, chocolate coating, filling food, syrup, flavoring, various additive, etc;
Medicine industry: Medical ointment, ointment, lotion, cream, various vitamin, etc
Chemical industry concerned with product of daily use: Shampoo, detergent, cream, tooth paste, paraffin liquor, hair dye, etc.
Adhesive industry: Rubber liquor, polyester sulfured, silicone, hot-melt adhesive, polyurethane, etc.
| Type | Power (Kw) | Voltage | Revolution (RPM) | Length ( Mm ) | Processing capacity ( L/H ) | Material |
| WRL-90 | 1.5 | 380V/50Hz | 2900 | 430 | 5-50 | SS304 |
| WRL-100 | 2.2 | 380V/50Hz | 2900 | 650 | 50-100 | SS304 |
| WRL-120A | 3 | 380V/50Hz | 2900 | 750 | 100-200 | SS304 |
| WRL-120 | 4 | 380V/50Hz | 2900 | 750 | 100-300 | SS304 |
| WRL-140A | 5.5 | 380V/50Hz | 2900 | 850 | 200-600 | SS304 |
| WRL-140 | 7.5 | 380V/50Hz | 2900 | 900 | 200-800 | SS304 |
| WRL-160 | 11 | 380V/50Hz | 2900 | 1000 | 300-1000 | SS304 |
| WRL-170 | 15 | 380V/50Hz | 2900 | 1100 | 400-1200 | SS304 |
| WRL-180 | 18.5 | 380V/50Hz | 2900 | 1150 | 500-1500 | SS304 |
| WRL-200 | 22 | 380V/50Hz | 1170 | 1200 | 800-2000 | SS304 |
| WRL-220 | 30 | 380V/50Hz | 1170 | 1350 | 1000-3000 | SS304 |
| WRL-240 | 37 | 380V/50Hz | 1470 | 1400 | 1500-5000 | SS304 |
| WRL-270 | 55 | 380V/50Hz | 1470 | 1650 | 2000-8000 | SS304 |
Inline High Shear Homogenizing Agitator
