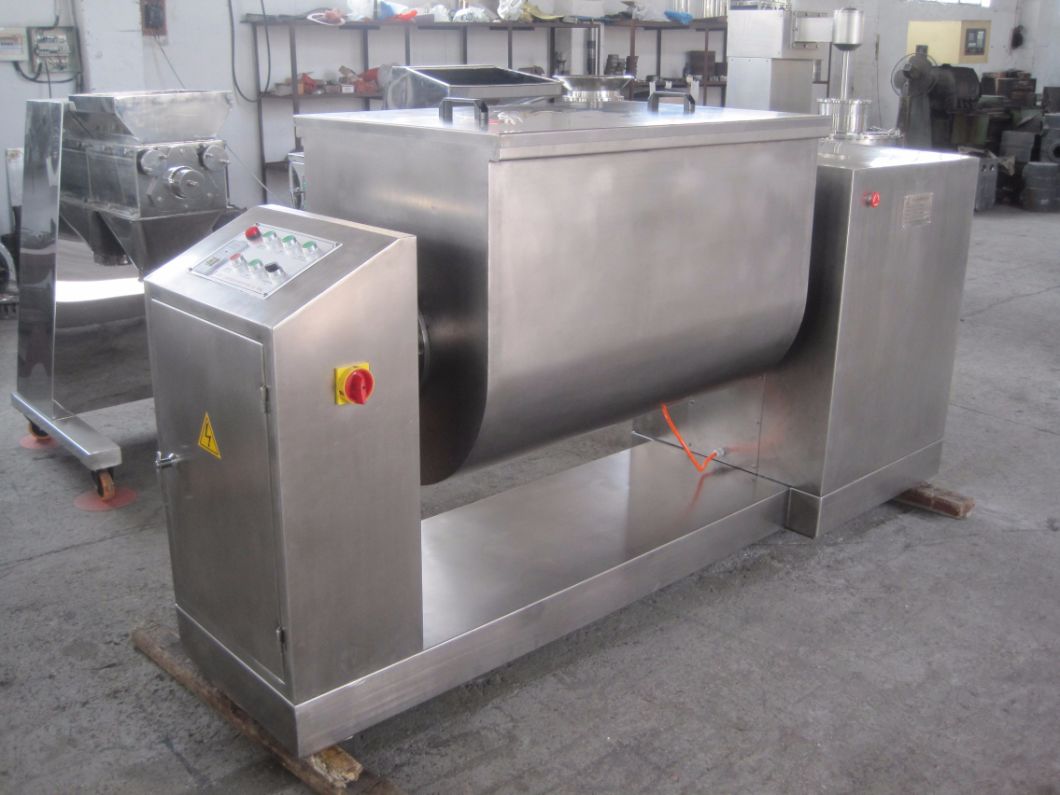

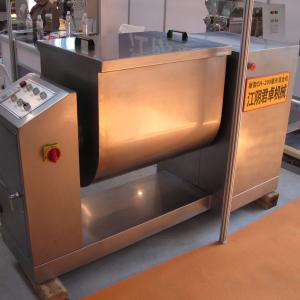

CH-400 Trough Mixer
INTRODUCTION:The trough blender mixes raw materials within a U-shaped trough.This machine is widely used in laboratory, which can evenly mix different proportions of mixed powder or solid materials.All parts contacted with raw material are made of stainless steel. Stirring shaft has sealing device to prevent material leakage.

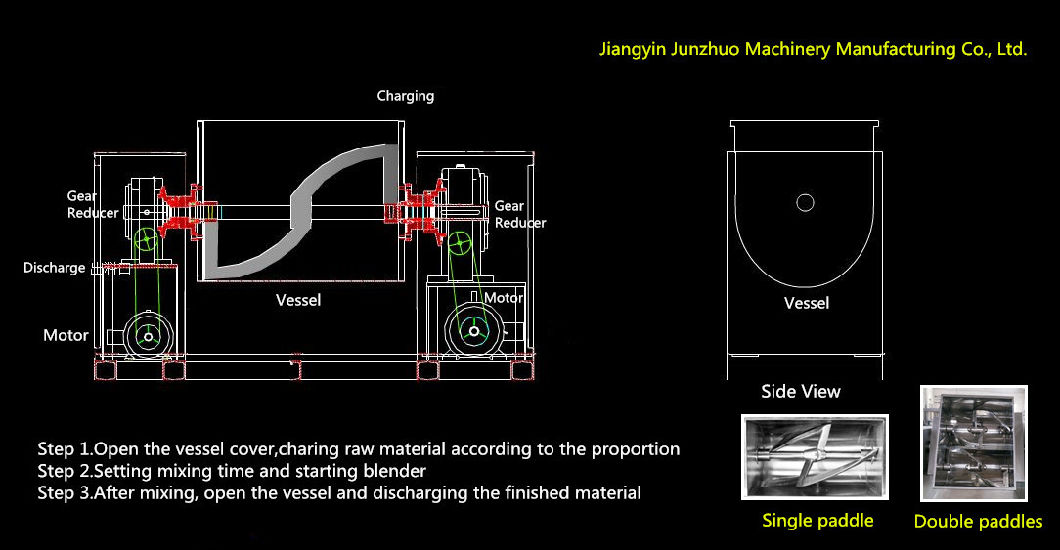

WORKING PRINCIPLE:
A mixer filled through an opening at its top; for concrete, usually a pan or drum within which mixing blades revolveabout the vertical axis; usually a trough within which mixing paddles revolve about the horizontal axis.
SALIENT FEATURES:
Twin shaft paddles and split shaft seal are available for your selection.
(CH100 to CH-1000)
TECHNICAL DATA:
OUR SERVICE:
Jiangyin Junzhuo Machinery Manufacturer Co.,Ltd offers a sophisticated lines of mixers, crushers, granulators and blenders to meet all requirements of cGMP. Our history starts in 2008, as an ever-evolving industry and a full-service provider, we are committed to delivering solutions for the pharmaceutical, nutraceutical, food, chemical and cosmetic industries.
Pre-Sales Service After-Sales Service
* Inquiry and consult *Installation training
* Sample test *Engineering support
* View our factory *One year warranty
Sample Test: Customize Service:
*It is free after getting your material *100% personal design
*Test it as your requirement *100% privacy protection
INTRODUCTION:The trough blender mixes raw materials within a U-shaped trough.This machine is widely used in laboratory, which can evenly mix different proportions of mixed powder or solid materials.All parts contacted with raw material are made of stainless steel. Stirring shaft has sealing device to prevent material leakage.
WORKING PRINCIPLE:
A mixer filled through an opening at its top; for concrete, usually a pan or drum within which mixing blades revolveabout the vertical axis; usually a trough within which mixing paddles revolve about the horizontal axis.
SALIENT FEATURES:
- Repeatable mixing
- Noise level minimum.
- Easy to clean-up
- Low maintenance
- Long service life

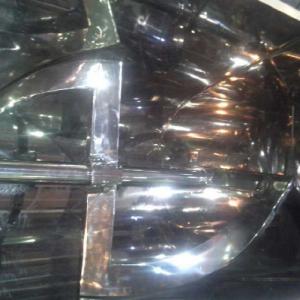

Twin shaft paddles and split shaft seal are available for your selection.
(CH100 to CH-1000)
TECHNICAL DATA:
| Model | Vessel Volume(L) | Mixing Volume(L) | Rotation (RPM) | Motor Power(KW) | Overall Size(mm) | Approx Weight(KG) |
| CH-1 | 1.3 | 1 | 24 | 0.2 | 430*220*475 | 30 |
| CH-3 | 3.5 | 3 | 24 | 0.37 | 430*220*475 | 35 |
| CH-30 | 33 | 30 | 24 | 0.75 | 1020*420*580 | 150 |
| CH-40 | 42 | 40 | 24 | 0.75 | 1020*420*600 | 180 |
| CH-50 | 55 | 50 | 24 | 1.1 | 1050*500*800 | 200 |
| CH-100 | 110 | 100 | 24 | 3 | 1400*500*1000 | 350 |
| CH-150 | 170 | 150 | 24 | 4 | 1660*600*995 | 600 |
| CH-200 | 220 | 200 | 24 | 5.5 | 1660*600*995 | 620 |
| CH-300 | 320 | 300 | 22 | 5.5 | 2200*680*1100 | 800 |
| CH-400 | 430 | 400 | 22 | 7.5 | 2400*710*1200 | 920 |
| CH-500 | 535 | 500 | 24 | 11 | 2400*850*1260 | 950 |
| CH-1000 | 1050 | 1000 | 18 | 18.5-22 | 3150*1000*1500 | 2100 |
SUITABLE MATERIALS:
- Pharmaceuticals
- Chemicals
- Detergents
- Pigments
- Foods
- Fertilizers
- Plastics
- And more
OUR SERVICE:
Jiangyin Junzhuo Machinery Manufacturer Co.,Ltd offers a sophisticated lines of mixers, crushers, granulators and blenders to meet all requirements of cGMP. Our history starts in 2008, as an ever-evolving industry and a full-service provider, we are committed to delivering solutions for the pharmaceutical, nutraceutical, food, chemical and cosmetic industries.
Pre-Sales Service After-Sales Service
* Inquiry and consult *Installation training
* Sample test *Engineering support
* View our factory *One year warranty
Sample Test: Customize Service:
*It is free after getting your material *100% personal design
*Test it as your requirement *100% privacy protection
PACKAGE&DELIVERY
Packing details:
We usually use wooden case for package.(Size: L*W*H).
Wooden case can be fumigated as customer's requirement.
If the container is compact,we will use PE film to protect it.
Packing details:
We usually use wooden case for package.(Size: L*W*H).
Wooden case can be fumigated as customer's requirement.
If the container is compact,we will use PE film to protect it.
If the equipment is large, we will fix it with steel wires and nails.
Don't worry the machine will move in the container.
EXHIBITION
Don't worry the machine will move in the container.
EXHIBITION
In our current world, all of kinds of businesses are competitive and competent. a trade show is the major part in establishing everything about our company to make our company more prominent.We pay much attation about your feedback and suggestion. Junzhuo has attended exhibitions since 2011, and we will participate in the exhibition every year.
