Rj Single Impeller Leaching Mixing Barrel Agitator

Product Description                                                                                                                                So far, this product is the most common

Technical Feature

  • Qingdao, China
  • 100piece/Month
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Mechanical Agitating Tank
  • 0.75-18.5kw
  • Mineral Leaching Process, Viscous Fluid, for Gold,
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$500~8

PRIMARY PARAMETERS

Model NO.
RJ
Automation
Automatic
Warranty
12 Months
Customized
Customized
Condition
New
Impeller Speed
240-690 R/Min
Impeller Diameter
150-760mm
Material
Carbon Steel
Operation Training
Provide
Price
Negotiable and Reasonable
Quality
High Reputation
Color
Customerized
Trademark
Fulin
Transport Package
Export Standard Container
Specification
as per model
Origin
Shandong, China (Mainland)
HS Code
8479820090

DETAIL DESCRIPTION

Product Description
So far, this product is the most commonly used ordinary agitator tank, the impeller is located at the lower part of the circulating cylinder, the pulp and the medicament are added into the circulating cylinder to stirring. The company through the experiment, the design of the new impeller is different from the original type, high stirring efficiency. According to user needs to produce rubber impeller, nylon impeller and other products, ordering need to specify. According to user requirements to set the relative location of the motor, feeding port and discharge port , relevant parts are usually installed on site. RJ agitator can be divided into cone bottom and flat bottom, cone bottom type need to specify.

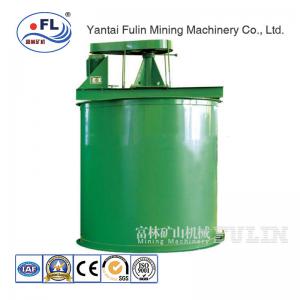

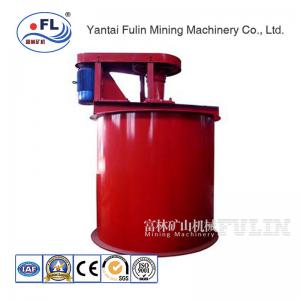

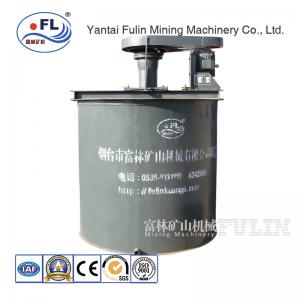

Products Show
Rj Single Impeller Leaching Mixing Barrel Agitator

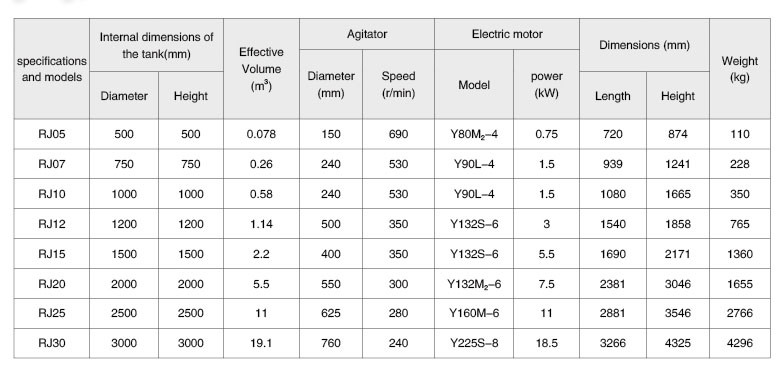

Technical  parameters
Rj Single Impeller Leaching Mixing Barrel Agitator

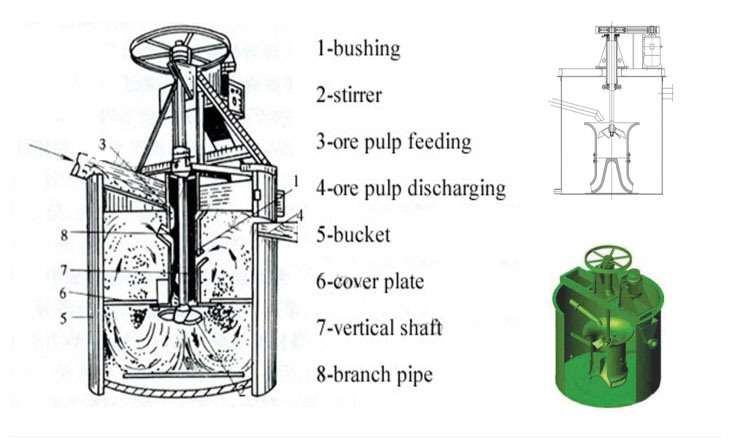

Working Principle


Mixed Stirring Barrels for a variety of metal ores, mainly for pre-mixing flotation, are pharmaceutical products, with the well-mixed slurry can also be used for other non-metallic mineral mixing. It is used in concentrations of not more than 30% (by weight) a fixed component of the particle size is less than 1mm. It is a flat-bottomed bucket of radiation in the form of circular screw-type impeller mechanical agitation.Triangle by the electric motor rotating impeller rotation, will be full of drugs and pulp mixture to increase the role of the mineral reactions pharmaceutical and strengthen drug reactions necessary equipment.
Rj Single Impeller Leaching Mixing Barrel Agitator


Feature of Agitator
1.High efficiency and low power consumption.
2.Easy maintenance and reliable operation.
3.High circulating ability and strong agitating capacity.
4.Uniquely designed impeller, uniform agitation.
5.Excellent mixing result.
Packing & Delivery
Rj Single Impeller Leaching Mixing Barrel Agitator

Rj Single Impeller Leaching Mixing Barrel Agitator
Rj Single Impeller Leaching Mixing Barrel Agitator
