XS/MS series Single Stage Double Suction Split Case Centrifugal Pump is a new generation of single stage double suction centrifugal split pump with high performance upgraded from SH, S, SA, SLA and SAP type, it is mainly applied to liquid transferring occasions, including water works, air conditioner circulation water, heat supply pipe network system, building water supply, irrigation, drainage pump station, power station, industrial water supply system, fire fighting system, ship industry, water supply and drainage for mines.

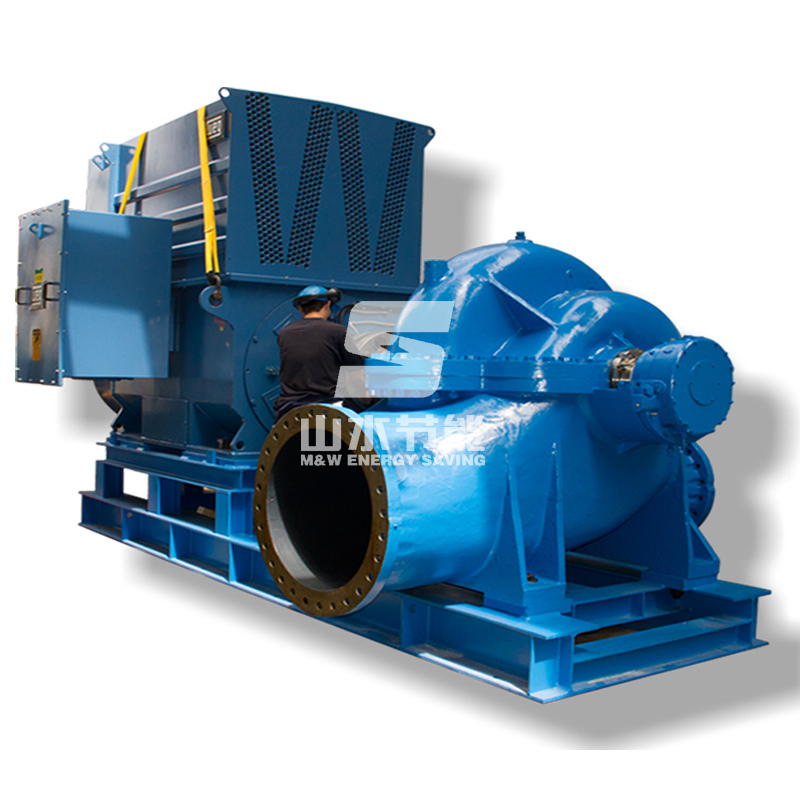

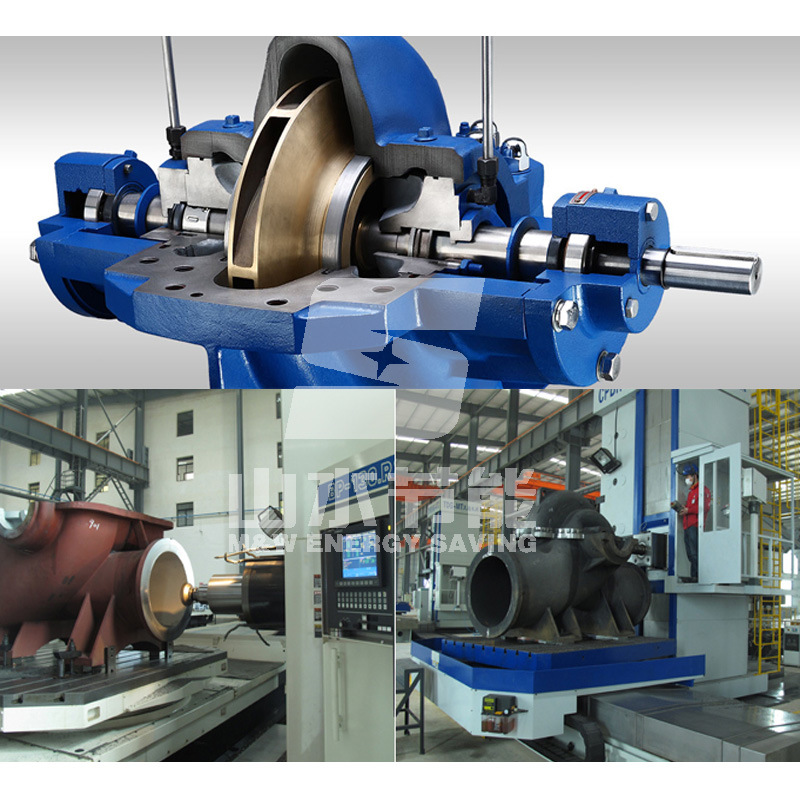

Single Stage Double Suction Split Case Centrifugal Pump XS/MS series(Dia. 100-1600mm)
XS/MS series horizontal single-stage, double suction, split case pumps are suitable for transporting water or water-like liquids at temperature -20 deg C~105 deg C (XS type), -60 deg C~200 deg C (XS-R type). The horizontal single-stage, double suction, split case pumps are commonly used for water supply and sewage drainage systems in industrial and municipal infrastructure, irrigation systems in farms as well as other hydraulics projects.
Material of flow passage components:
The pump case adopts grey cast iron, ductile cast iron or cast steel. The impeller adopts grey cast iron, silicon brass or stainless steel. The main shaft adopts stainless steel or high quality carbon steel. Other materials can be applied as per customers' requirements.
Specifications
XS/MS series single stage double suction horizontal mounted split case centrifugal pump
a) Diameter: 80-1,600mm
b) Flow: 65 - 11,600cbm/h
c) Head: 7-200m
Features:
a) Compact structure
b) Attractive design
c) High efficiency, steady performance
d) High flow, medium pressure
e) High concentricity of components
2) Applications:
a) Waterworks
b) Circulation water for air-condition
c) Water supply for industry and building
d) Irrigation and drainage pumping station
e) Power station
The instruction of pump model
For example: 500MS35A
500_inlet diameter ( mm ).
MS_Single stage double suction horizontal split case centrifugal pump.
Model and Specification sample
Single Stage Double Suction Split Case Centrifugal Pump XS/MS series(Dia. 100-1600mm)
XS/MS series horizontal single-stage, double suction, split case pumps are suitable for transporting water or water-like liquids at temperature -20 deg C~105 deg C (XS type), -60 deg C~200 deg C (XS-R type). The horizontal single-stage, double suction, split case pumps are commonly used for water supply and sewage drainage systems in industrial and municipal infrastructure, irrigation systems in farms as well as other hydraulics projects.
Material of flow passage components:
The pump case adopts grey cast iron, ductile cast iron or cast steel. The impeller adopts grey cast iron, silicon brass or stainless steel. The main shaft adopts stainless steel or high quality carbon steel. Other materials can be applied as per customers' requirements.
Specifications
XS/MS series single stage double suction horizontal mounted split case centrifugal pump
a) Diameter: 80-1,600mm
b) Flow: 65 - 11,600cbm/h
c) Head: 7-200m
Features:
a) Compact structure
b) Attractive design
c) High efficiency, steady performance
d) High flow, medium pressure
e) High concentricity of components
2) Applications:
a) Waterworks
b) Circulation water for air-condition
c) Water supply for industry and building
d) Irrigation and drainage pumping station
e) Power station
The instruction of pump model
For example: 500MS35A
500_inlet diameter ( mm ).
MS_Single stage double suction horizontal split case centrifugal pump.
Model and Specification sample
Type | Capacity | Head | Speed | Shaft power | Motor power | EFF | NPSH | ||
| (m³/h) | (l/s) | (m) | (r/min) | (kw) | (kw) | (%) | (m) | ||
| 900MS35 | 6048 7560 9072 | 1680 2100 2520 | 39.5 35 30.5 | 730 | 750 800.6 890 | 1000 | 86 90 86 | 8 | |
| A | 5760 7200 8640 | 1600 2000 2400 | 35 31 25 | 730 | 615 683 705 | 800 | 86 89 84 | 7.8 | |
| 1200MS22 | 7920 9612 10800 | 2200 2670 3000 | 25.5 22 18 | 485 | 644 662 638 | 1120 | 85.5 87 83 | 5.8 | |
| 1400MS15 | 16056 20415 23292 | 4460 5670.8 6470 | 21.5 18.1 15 | 375 | 1076 1132 1125 | 1250 | 87.4 88.9 87.4 | 6.7 7 7.8 | |
| 1400MS30 | 16812 20556 22392 | 4670 5710 6220 | 30 27 24.3 | 375 | 1615 1674 1636 | 2000 | 85.6 | 7.13 8.24 8.78 |
