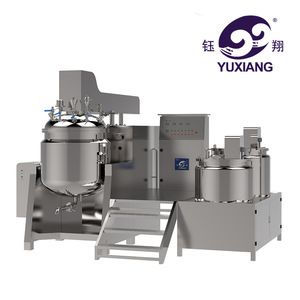

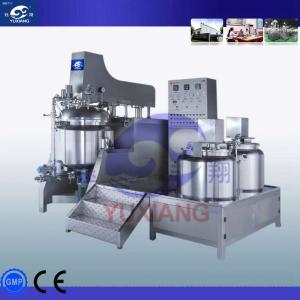

RHJ-A 500L Bottom homogenizer type vacuum emulsifying machine

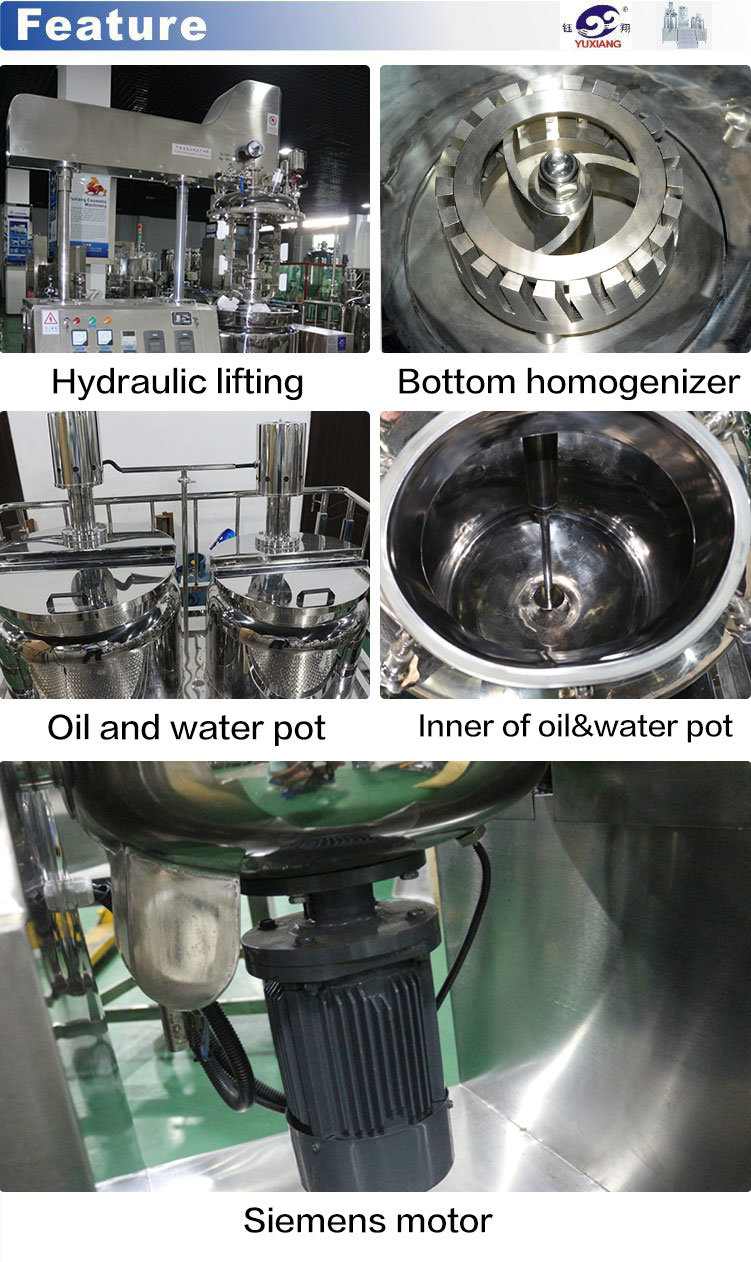

Feature:
RHJ-A Vacuum emulsifying machine of bottom homogenizer type, this type machine the homogenizer is fixed in
RHJ-A Vacuum emulsifying machine of bottom homogenizer type, this type machine the homogenizer is fixed in
the machine bottom, increase the power of the motor, more thoroughly and more powerful, machine lid can be
hydraulic lifting. More details is as below:
1, Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2, Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3, Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few
production, it can exert homogenizing effect fully;
4, Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid
high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream; boiler body and pipe surface
mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5, Customer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min.
Technical Parameter:
Application:
This RHJ-A Vacuum emulsifying mixer machine is mainly applied in such industries as daily chemical care products, cosmetic, pharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical Industry, printing and dyeing auxiliaries, fine chemical industry, etc. This type machine the homogenizer is fixed in the machine bottom, increase the power of the motor, more thoroughly and more powerful, machine lid is can hydraulic lifting. The emulsifying effect is more prominent for materials of high base viscosity. Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream.
hydraulic lifting. More details is as below:
1, Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2, Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3, Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few
production, it can exert homogenizing effect fully;
4, Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid
high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream; boiler body and pipe surface
mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5, Customer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min.
Technical Parameter:
| Model | Main pot | Water pot | Oil pot | Main pot power | Hydraulic System | Vacuum pump power(Kw) | |
| Volume(L) | Wall scraping | Homogenizer | |||||
| RHJ-5L | 5L | 0.18 | 1.1 | 0.75 | 0.55 | ||
| RHJ-10L | 10L | 7 | 5 | 0.37 | 1.1 | 0.75 | 0.75 |
| RHJ-20L | 20L | 14 | 10 | 0.75 | 1.5 | 0.75 | 0.75 |
| RHJ-50L | 50L | 35 | 25 | 1.1 | 2.2 | 1.5 | 1.5 |
| RHJ-100L | 100L | 70 | 50 | 1.5 | 3 | 1.5 | 1.5 |
| RHJ-200L | 200L | 140 | 100 | 2.2 | 4 | 1.5 | 2.2 |
| RHJ-300L | 300L | 210 | 150 | 3 | 5.5 | 1.5 | 2.2 |
| RHJ-500L | 500L | 350 | 250 | 4 | 7.5 | 1.5 | 2.2 |
| RHJ-1000L | 1000L | 700 | 500 | 5.5 | 11 | 2.2 | 3 |
Application:
This RHJ-A Vacuum emulsifying mixer machine is mainly applied in such industries as daily chemical care products, cosmetic, pharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical Industry, printing and dyeing auxiliaries, fine chemical industry, etc. This type machine the homogenizer is fixed in the machine bottom, increase the power of the motor, more thoroughly and more powerful, machine lid is can hydraulic lifting. The emulsifying effect is more prominent for materials of high base viscosity. Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream.
Function and usage
The machine is suitable for the production of various kinds of paste, cream products in cosmetic and pharmaceutical factory.
Package: Standard Plywood Case Packing

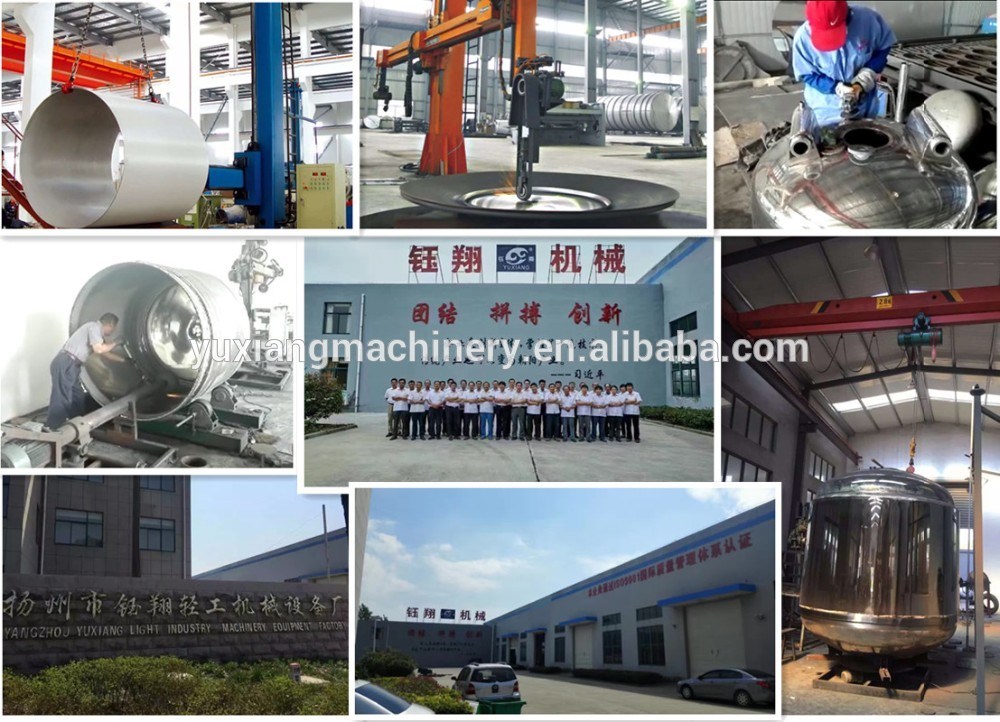

Yuxiang factory:
