Dates Auto Thermoforming Vacuum Packaging Machine

         AdvantagesHigh efficiency, at least 10000 packages per day.Safe and easy to operate with PLC touch screen operating system.Outstanding packaging with customized forming mold and functions for automated packaging.Provide full after-sale

Technical Feature

  • Shanghai, China
  • Poly Wooden Case
  • T/T
  • Automatic
  • Dairy Products, Vegetable, Fruit, Snack
  • Forming Filling Sealing Machine
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$100~60

PRIMARY PARAMETERS

Model NO.
DZL
Material Type
Solid
Packaging
Tray
Packaging Material
Film
Material
304 Stainless Steel
Trademark
Utien Pack
Specification
CE
Origin
China
HS Code
84223090

DETAIL DESCRIPTION



      Advantages

  • High efficiency, at least 10000 packages per day.
  • Safe and easy to operate with PLC touch screen operating system.
  • Outstanding packaging with customized forming mold and functions for automated packaging.
  • Provide full after-sale service, engineers are able to service overseas.





    Packages.





Dates Auto Thermoforming Vacuum Packaging Machine

Dates Auto Thermoforming Vacuum Packaging Machine

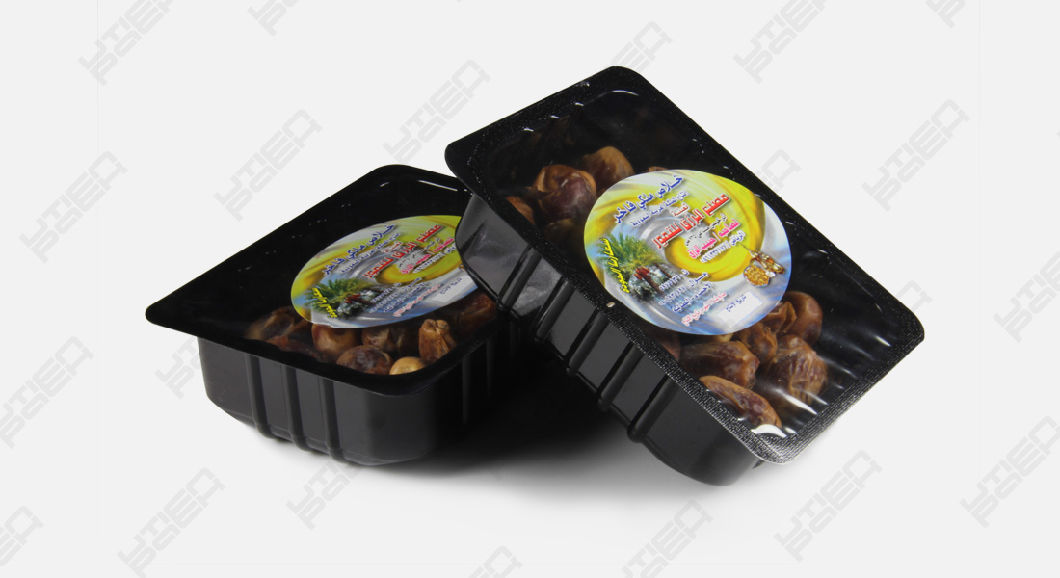

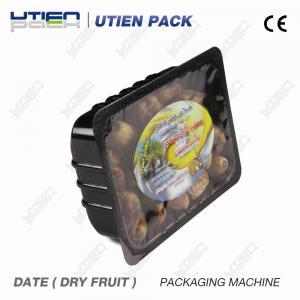

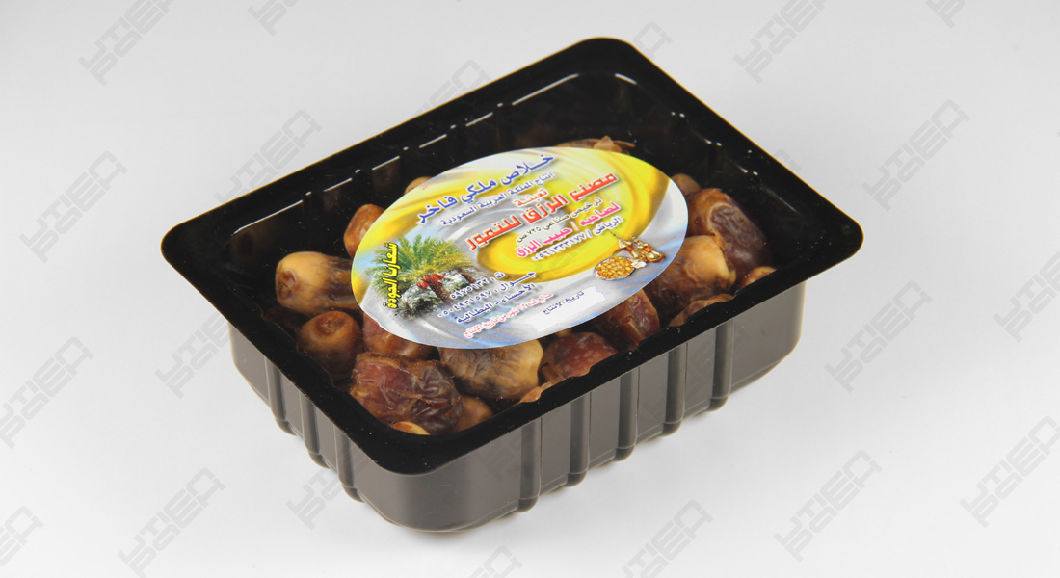

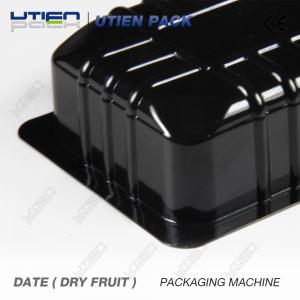

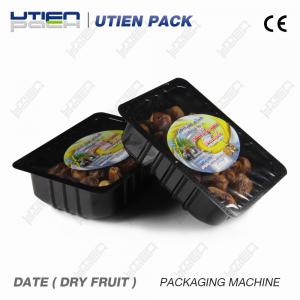

Rigid date package is a good protection for the date. Keep a better shape and better to eat while opened. Rigid package can be stored in order. And easy to carry. The rigid package also can be used as a container for the date which no longer require a bowl or other container to hold.





    Advantage of the Package

  • longer shelf-life
  • protect from contamination
  • prevent from squeezing
  • Less waste problems and more economic
  • totally customizable





    Machine

Dates Auto Thermoforming Vacuum Packaging Machine

Automatic Production

Highly integrated package machine with tray forming, product filling area, sealing, gas flushing and die cutting. Reduce the risk of contacting insanitary source.





Dates Auto Thermoforming Vacuum Packaging Machine

Safety

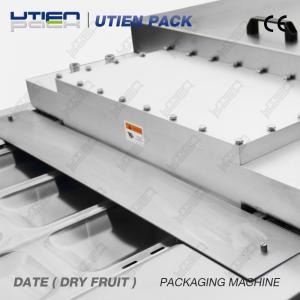

To ensure the security of people and property we make several design on the machine such as stainless steel cover for different section to keep the hand out of moving parts. Safety sensors are installed under the cover, inside the door and other removable parts to make sure the machine can auto-stop while the covers and doors are open.





Dates Auto Thermoforming Vacuum Packaging Machine

Easy Operating

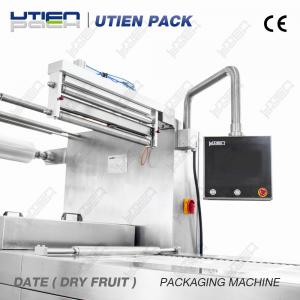

Large size 10" touch screen make the operation easy and safe. The system is simple to learn and easy to use. The machine also have easy mold changing design which makes the mold changing fast and easy.





Working Schematic

Dates Auto Thermoforming Vacuum Packaging Machine



This machine is based on thermoforming technology, which heat and forming the bottom tray of the package from a roll of plastic film which is multi-layer co-extruded film. Different working section work at same time makes the procedure fast and less defects.





Technical Data

Machine Parameters

Dimensions6000mm*1300mm*1870mm

Weight

2000kg
Working Height1000mm
Operating Panel Height1600mm
Loading Area Length1500mm(Customizable)
Working Parameters
Bottom Film Width≤520mm
Advance Length≤500mm
Forming Depth≤150mm
Top Film
MaterialSealable PEPA Multi-layer Co-extruded Plastic Film
PrintPre-printed Top Film or Transparent Top Film
Roll Diameter250mm at most
Thickness≤200um
Bottom Film
MaterialSealable PEPA Multi-layer Co-extruded Plastic Film
PrintUnprinted Color Bottom Film or Transparent Film
Roll Diameter500mm
Thickness≥300um
Components
Vacuum PumpBUSCH(Germany)
Electrical ComponentsScheneider(French)
Pneumatic ComponentsSMC(Japanese)
PLC, Touch Screen & Servo MotorDELTA(Taiwan)

The parameter in this sheet is for reference only, some of the data may be different with different case.







FAQ



Q1:How long does it take to deliver the machine after the order & deposit?

A1:Usually it will take 90 working days to manufacture the machine and make it ready to deliver. At first 30 days the technical drawing will be made. The second 30 days start manufacturing the parts and ready to assemble. In the last 30 days the machine will be assembled and tuned to make sure it is ready to deliver.



Q2:What do you need to make a specific offer for my product?

A2:To make a special offer we will need the dimension(s) of the package(s) you want to use on this machine. We also need the approximate production volume you need per day. If with other special request please also inform us before we make the project.



Q3:Can you offer oversea service?

A3:Yes, if request. But we suggest online problem solving at first. If the problem still shows we can arrange engineer to go to your factory personally to solve the issue.







Utien Pack
Company profile

Utien Pack Co,. Ltd. Known as Utien Pack is a technical enterprise aiming at developing highly automated packaging line. Our current core products covered multiple products over different industries such as food, chemistry, electronic, pharmaceuticals and household chemicals. Utien Pack is founded in 1994 and becoming a well-known brand through 20 years' development. We've achieved 4 national standards drafting and have more than 20 patent technology. Our products are produced under ISO9001:2008 certification requirement. We build high quality packaging machines and make a better life for everyone using the safe packaging technology. We are offering solutions to make a better package and a better future.
