WENZHOU DAJIANG is the first company to specialized in the R&D and manufacture of table top vacuum packaging machines in China when it's established in 1995. The DZ table top vacuum packaging machines series were designed with the user in mind. It's the ideal solution for the quick and easy packaging of smaller products. The gas flushing processes are pressure-controlled and thus guarantee are a reproducible packing quality. The table top machines are easy to operate, clean and maintain. It's affordable enough to be purchased simply as a backup while maintaining superior quality that one can rely on during years of heavy use.
DZ Table Top Vacuum Packaging Machines Series constructed of a high-quality stainless steel. It's quick and easy packaging of smaller products, it's easy to operate, clean and maintain.
Technical Character
DZ Table Top Vacuum Packaging Machines Series constructed of a high-quality stainless steel. It's quick and easy packaging of smaller products, it's easy to operate, clean and maintain.
Technical Character

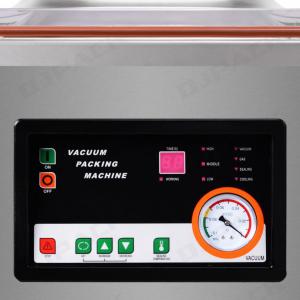

1. Control System: The PC control panel provides several control modes for user's selection.
2. Material of Main Structure: 304 stainless steel.

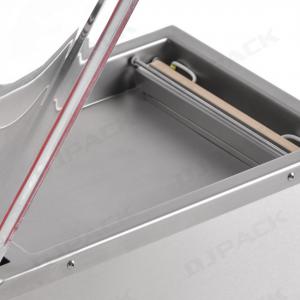

3. Hinges on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in dally work, so that they handle it with ease.
4. "V" Lid Gasket: The "V" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduce its changing frequency.
5. Electrical requirement and plug could be custom according to customer requirement.
Technical Specifications| Model | DZ-350/MS |
| Machine Dimension(mm) | 560 × 425× 490 |
| Chamber Dimension(mm) | 450 × 370 × 220(170) |
| Sealer Dimension(mm) | 350 × 8 |
| Pump Capacity(m3/h) | 20 |
| Power Consumption(kw) | 0.75 |
| Voltage(V) | 110/220/240 |
| Frequency(Hz) | 50/60 |
| Production Cycle(times/min) | 1-2 |
| G. W(kg) | 68 |
| N. W(kg) | 58 |
| Shipping Dimensions(mm) | 610 × 490 × 530 |
