Chocolate Pump Cam Rotor Pump Lobe Pump Mono Pump
Chocolate Pump Cam Rotor Pump/Lobe Pump
Sanitary Stainless Steel Cam Rotor Pump/Lobe Pump
Applications: Food industry, Daily chemical industry, The pharmaceutical industry, Chemical industry., etc.
It adopts stainless steel and quick open structure. Non-pollution to materials,
It is convenient to clean and up to GMP quality standard. The interface of this machine adopts ISO standard yoke coupling.
The whole body uses the stainless steel materials, equipping with common or anti-explosion electric motor. It's suitable for conveying liquid materials in various places and makes sure the production procedure in accordance with GMP quality standard.
Teachnical Parameters
Cam Rotor Pump Operation Principle
Rotor pump is also named rotary lobe pump, three lobe pump, sole pump etc. When the two simultaneous reverse rotating rotors (with 2-4 gears) revolve, it produces suction force at the inlet (vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and revolve in the sequence of A--B--C--D. When it revolves to position A, only housing I is filled with medium .When it revolves to position B, housing B encloses part of the medium; when it goes to position chousing A encloses medium, and finally it goes to position D, then housing A ,B and II are interlinked and the medium is transported to the outlet. As this process is repeated, medium material is transported continuously.

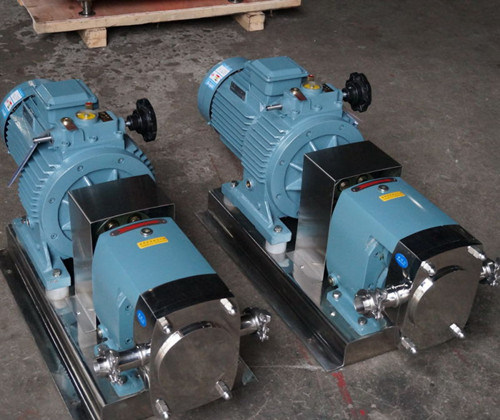

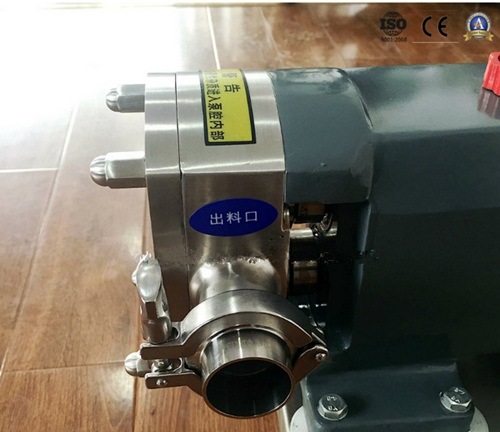

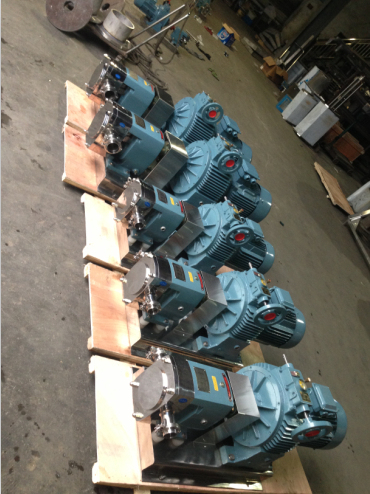

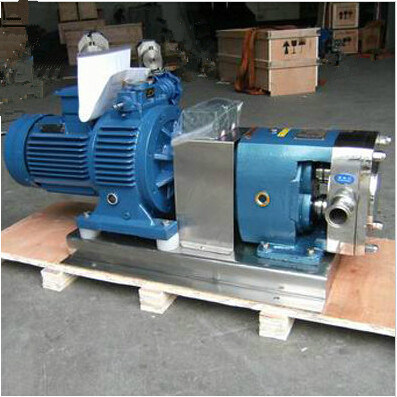

Sanitary stainless steel Cam rotor pump
Sanitary Stainless Steel Cam Rotor Pump/Lobe Pump
Chocolate Pump Cam Rotor Pump Lobe Pump Mono Pump
Chocolate Pump Cam Rotor Pump/Lobe Pump
Sanitary Stainless Steel Cam Rotor Pump/Lobe Pump
Applications: Food industry, Daily chemical industry, The pharmaceutical industry, Chemical industry., etc.
It adopts stainless steel and quick open structure. Non-pollution to materials,
It is convenient to clean and up to GMP quality standard. The interface of this machine adopts ISO standard yoke coupling.
The whole body uses the stainless steel materials, equipping with common or anti-explosion electric motor. It's suitable for conveying liquid materials in various places and makes sure the production procedure in accordance with GMP quality standard.
Teachnical Parameters
| lobe pump Model | (L) Capacity / per centum Rotate | (RPA) Speed | (L/H) Flow | (KW) Power |
| KQ-3 | 3L | 200-500 | 300-800 | 0.55 |
| KQ-6 | 6L | 200-500 | 650-1600 | 0.75 |
| KQ-8 | 8L | 200-500 | 850-2160 | 1.5 |
| KQ-12 | 12L | 200-500 | 1300-3200 | 2.2 |
| KQ-20 | 20L | 200-500 | 2100-5400 | 3 |
| KQ-30 | 30L | 200-400 | 3200-6400 | 4 |
| KQ-36 | 36L | 200-400 | 3800-7600 | 4 |
| KQ-52 | 52L | 200-400 | 5600-11000 | 5.5 |
| KQ-66 | 66L | 200-400 | 7100-14000 | 7.5 |
| KQ-78 | 78L | 200-400 | 9000-18000 | 7.5 |
| KQ-100 | 100L | 200-400 | 11000-22000 | 11 |
| KQ-135 | 135L | 200-400 | 15000-30000 | 15 |
| KQ-160 | 160L | 200-400 | 17000-34000 | 18.5 |
| KQ-200 | 200L | 200-400 | 21600-43000 | 22 |
Cam Rotor Pump Operation Principle
Rotor pump is also named rotary lobe pump, three lobe pump, sole pump etc. When the two simultaneous reverse rotating rotors (with 2-4 gears) revolve, it produces suction force at the inlet (vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and revolve in the sequence of A--B--C--D. When it revolves to position A, only housing I is filled with medium .When it revolves to position B, housing B encloses part of the medium; when it goes to position chousing A encloses medium, and finally it goes to position D, then housing A ,B and II are interlinked and the medium is transported to the outlet. As this process is repeated, medium material is transported continuously.
Sanitary stainless steel Cam rotor pump
Sanitary Stainless Steel Cam Rotor Pump/Lobe Pump
Chocolate Pump Cam Rotor Pump Lobe Pump Mono Pump
