Applicatioin
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The self-priming jet pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Operating Conditions
Liquid temperature up to 60degree
Ambient temperature up to 40degree
Total suction lift up to 8m.
Motor
Two-pole induction motor (n=2850 r.p.m)
Insulation Class B
Protection IP44
Continuous service S1
Thermal protector for single phase
Single phase 220V/50Hz, 60Hz if request
Three phase 380V/50Hz, 60Hz if request
Component Construction
Pump body: Cast iron
Pump support: Cast iron
Motor housing: Aluminum
Impeller: Brass, PPO or Noryl if request
Diffuser: Noryl or PPO if request
Motor shaft: Carbon steel, AISI420/304 SS if request
Mechanical seal: Ceramic/Graphite
Q (Question) & A (Answer)
Q: What is your MOQ of this item?
A: Our MOQ is 500pcs, but for the first time cooperation, we accept sample orders to check quality.
Q: Can the product packed into a color box with customer's design?
A: Yes, order over 500pcs can make designed color box.
Q: Is it all right to make customers'own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
Q: How long is your warranty?
A: One year after receive B/L.
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
Q: Do you accept other currency payment?
A: Yes, CNY, EURO, etc. is also acceptable.
Q: Can you do CIF terms?
A: Yes, we can
Q: Can you make wave shape for this model?
A: Yes, wave shape is very special, and we can make it as below:
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The self-priming jet pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Operating Conditions
Liquid temperature up to 60degree
Ambient temperature up to 40degree
Total suction lift up to 8m.
Motor
Two-pole induction motor (n=2850 r.p.m)
Insulation Class B
Protection IP44
Continuous service S1
Thermal protector for single phase
Single phase 220V/50Hz, 60Hz if request
Three phase 380V/50Hz, 60Hz if request
Component Construction
Pump body: Cast iron
Pump support: Cast iron
Motor housing: Aluminum
Impeller: Brass, PPO or Noryl if request
Diffuser: Noryl or PPO if request
Motor shaft: Carbon steel, AISI420/304 SS if request
Mechanical seal: Ceramic/Graphite
Q (Question) & A (Answer)
Q: What is your MOQ of this item?
A: Our MOQ is 500pcs, but for the first time cooperation, we accept sample orders to check quality.
Q: Can the product packed into a color box with customer's design?
A: Yes, order over 500pcs can make designed color box.
Q: Is it all right to make customers'own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
Q: How long is your warranty?
A: One year after receive B/L.
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
Q: Do you accept other currency payment?
A: Yes, CNY, EURO, etc. is also acceptable.
Q: Can you do CIF terms?
A: Yes, we can
Q: Can you make wave shape for this model?
A: Yes, wave shape is very special, and we can make it as below:

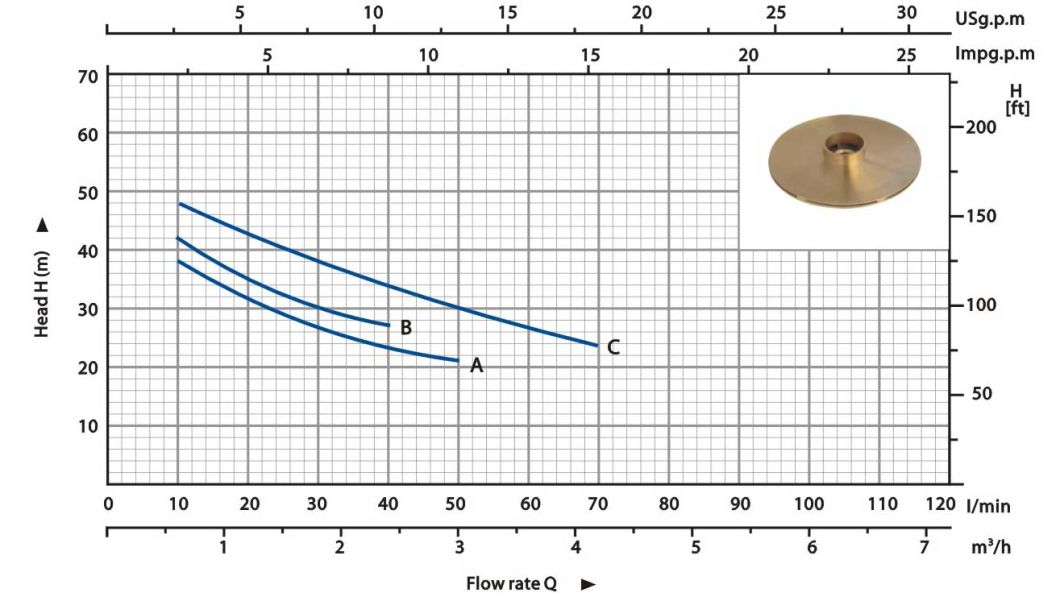

| NO. | Model | Power | Max Flow | Max Head | Inlet x Outlet | Gross Weight | Packing size |
| A | JET-60 | 370W | 40L/min | 35M | 1"x1" | 12.5kgs | 450x215x235mm |
| B | JET-80 | 550W | 42L/min | 48M | 1"x1" | 13.5kgs | 450x215x235mm |
| C | JET-100 | 750W | 50L/min | 53M | 1"x1" | 14.5kgs | 450x215x235mm |
| D | JET-150 | 900W | 70L/min | 56M | 1"x1" | 24.5kgs | 525x230x275mm |
| E | JET-180 | 1100W | 85L/min | 61M | 1.25"x1" | 25kgs | 525x230x275mm |
| F | JET-200 | 1500W | 95L/min | 66M | 1.5"x1.25" | 26kgs | 525x230x275mm |
