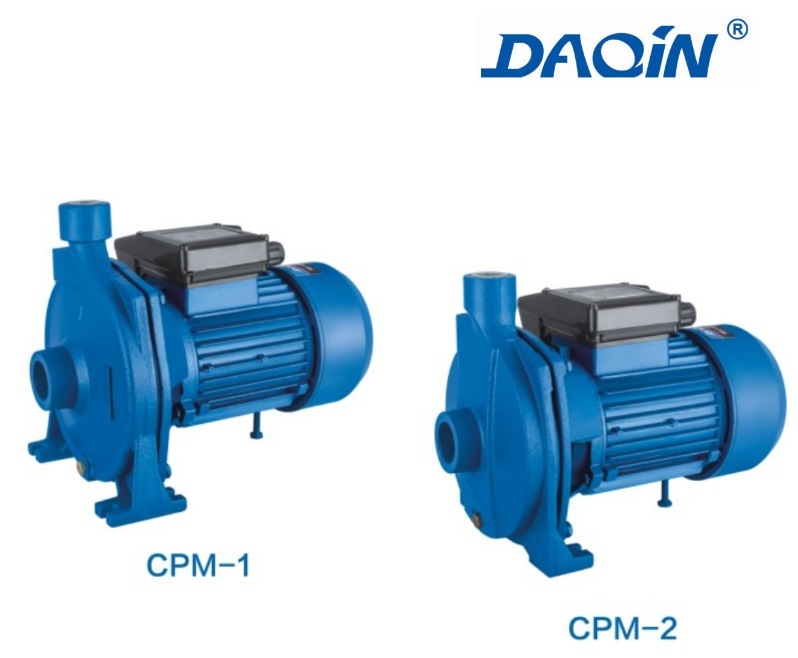

Surface Self Priming Centrifugal Agricultural Water Pump Cpm130 0.37kw

Centrifugal water pumpOperating LimitsTrans medium pH 6-8.5Fluid temperature limit: 40oCMax ambient temperature: 55oCInsulation Class: BProtection Class: IP44Component MaterialPump body: Cast ironPump support: Cast ironMotor housing: AluminumImpeller

Technical Feature

  • 30 Pieces
  • 400000PCS/Year
  • Carbon Box
  • L/C, T/T
  • Cast Iron
  • Single-stage Pump
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
CPM130 0.37KW
Application
Clarified Water Pump
Industry
Agricultural & Household
Media
Clear Water
Performance
Low Temperature
Theory
Centrifugal Pump
Pump Body and Support
Cast Iron
Impeller
Brass
Shaft with Motor
AISI 304ss and 45steel
Bearing
C&U / NSK
Trademark
DAQIN
Specification
CE SGS NEMA
Origin
China
HS Code
8413709190

DETAIL DESCRIPTION

Centrifugal water pump

Operating Limits
Trans medium pH 6-8.5
Fluid temperature limit: 40oC
Max ambient temperature: 55oC
Insulation Class: B
Protection Class: IP44

Component Material
Pump body: Cast iron
Pump support: Cast iron
Motor housing: Aluminum
Impeller: Brass
Diffuser: Noryl
Shaft with rotor: 45# steel/ AISI416/304 SS
Mechanical seal: Carbon/ Ceramic
Bearing: NSK/ C&U
Surface Self Priming Centrifugal Agricultural Water Pump Cpm130 0.37kw
Surface Self Priming Centrifugal Agricultural Water Pump Cpm130 0.37kw
