RICE stone removing destoning machine is mainly separate and remove stones in seeds like soya,bean ,soyabean,green lentil, pepper, wheat corn ,rice ,soybean, pean ,RICE seed ,melon seed , paddy rice basmati rice fragrant rice

The destoning rate could reach more than 99% ,like hand pick.
Except rice destoner ,this destoner for pine seed ,destoner for cocoa seed,cashew nuts destoner ,Pumpkin kernel destoning machine,Coix seed detoner,waxgour stone stone removing ,herb stone ,cassia stone cleaning machine ,rape stone destoner processing machine,dodder stone de-stoning cleaner ,wolfbearry seed,ginkgo seed, chickpea destoner

1. Introduction of grain cereals seed destoner machine
The principle is based on the proportion of grain corn and cobble density differences,by adjusting the pressure and vibration frequency separate the stone and grain.

This specifit gravity de stoner machine is equiped with a multi blade fan with high accuracy, by adjusting the air pressure the lighter grain of paddy , peanut, rice ,wheat will be floated by the wind, and the higher density stones will be cling to the stainless steel wire mesh.

And then by adjusting the vibration frequency ,the stoner table vibrates so as to achieve the purpose of separation.

This gravity separator destoning machine is equiped with frequency conversion control equipment,which can be subtle regulation,even if the proporation of the difference is very small, stones also be separated.

This blowying type gravity destoner is equiped with frequency conversion control equipment,which can be subtle regulation,even if the proporation of the difference is very small, stones also be separated.

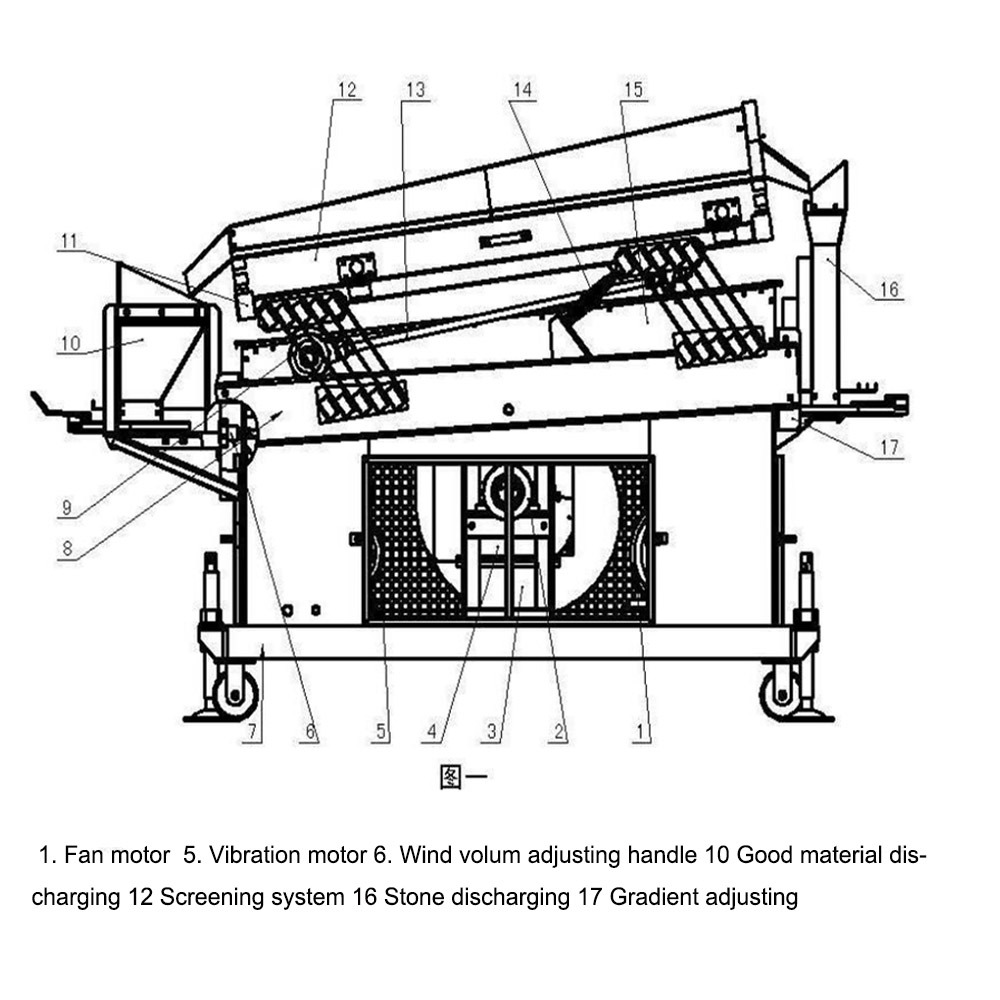

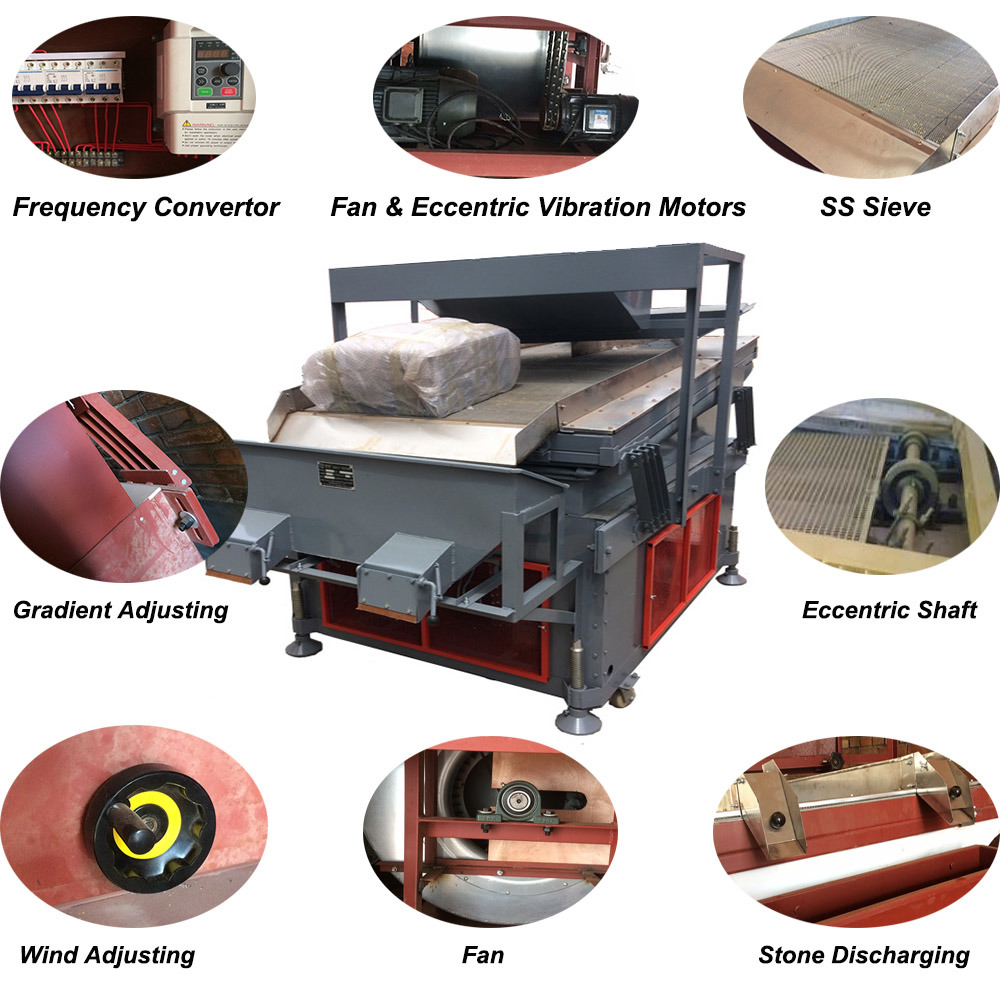

2.Rice destoner machine Structure:

Feading hopper

Bucket elevator
Vibration sieve SS304
Fan
Fan motor
Eccentric shaft
Motor for Eccentric shaft
Wind adjusting handle
Control box including frequency convertor
Air adjusting system
Driver

This specifit gravity de-stoning machine is equiped with a multi blade fan with high accuracy, by adjusting the air pressure the lighter grain of paddy , peanut, rapeseed ,wheat will be floated by the wind, and the higher density stones will be cling to the stainless steel wire mesh.

3.Wheat rice coffe seed destoner Parameter

Power for eccentric motor:5.5KW
Power for fan:1.1KW
Cleaning rate:more than 99%

The de stoner machine for rice mill
The eccentric vibration is adjusted by frequency convertor
The wind is adjusted by air volume handle
The material input quantity is adjusted
Vibration sieve is SUS304 material
The vibration table gradient is adjusted

 This agriculture sideline production processing machinery is used widely in farm products and grain seeds processing:

1 Small volume to save area

2 Small weight make transportaion easy.

3 Simple structure make it high efficiency

4.Work smoothy

5.Low noisy.

 wheat Destoner

QSC-5X Seed Destoner Machine seed de stone  is used to remove heavy foreign impurity like stone, metallic and glass pieces etc on the principle of weight difference.

With the combination of fluidization and deck oscillation, heavy particles migrate to upper levels of the deckdischarged from outlets and the light particles move to the lower level of the deck.

l Excellent performance and high capacity

l Wide application for all kinds of seeds, beans, raw materials

l Elevator available

l Durable quality with favorable pwheat

l Easy operation and maintenance


This seed destoner machine is going to separate the stone from farm products,grain and seeds cereals.for example peanut,mung beans maize, rice,quinoa ,wheat corn soybean etc

It is used for

1.Seed company

2.Farm equipment

3.Seed breeding

4.Grain and oil processing

5. Agricultural product and by product processing

6. Seed processing line

6. Packaging
The seed destoner machine packed by wooden box or in bulk in container

our this seed cleaner machine very popular in many of the world countries.
The cleaning effect is very good.
If you have question,just contact with me directly.
