Product description:

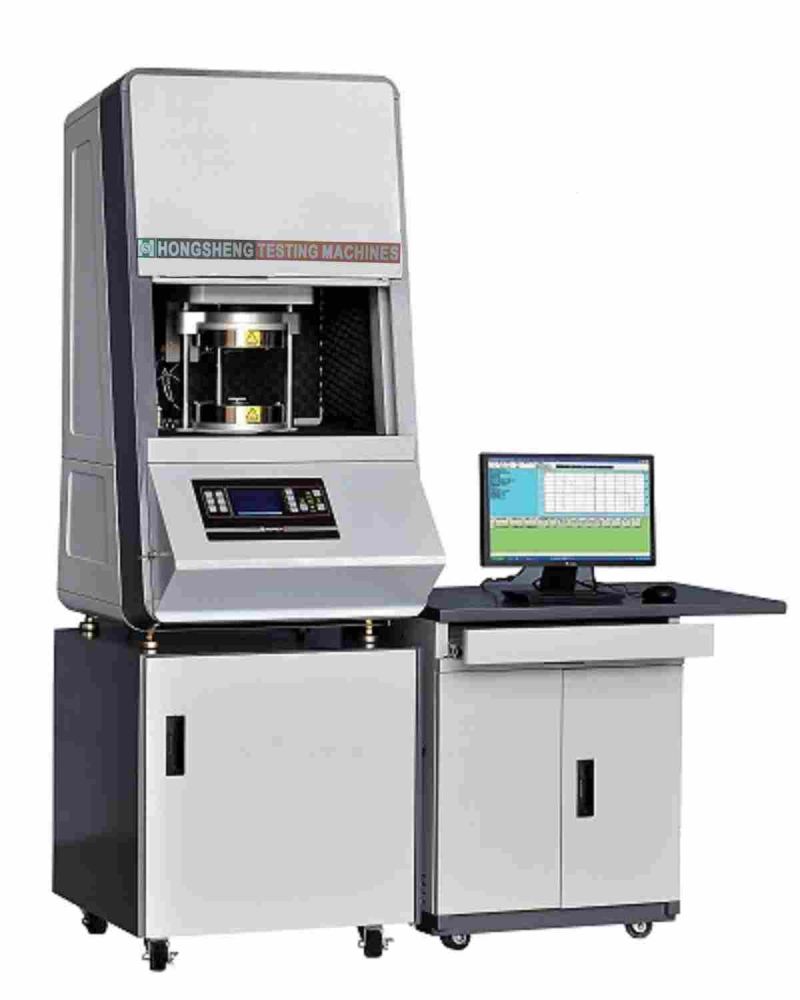

The Mooney viscometer adopts a new microprocessor and LCD touch screen with built-in automatic balance and calibration device, it can automatically calibrate by pressing the button. With an accurate specimen temperature control system and high torque measuring precision, this machine is highly sensitive to changes in rubber materials, and has a better repeatability and reproducibility. The rotor speed can be changed from 0.1 to 30rpm. After programmed, it can automatically change the speed and continue testing during testing.
Product parameter:
Package and delivery:
The machines will be surrounded by foam and then packed by standard wooden carton. It is very safety!
For the machines we have in stock, we can ship them out wihitn 7 working days and for the ones we have not in stock, we will send them out 15-35 working days after we get the deposit.
Our Service
Our Company

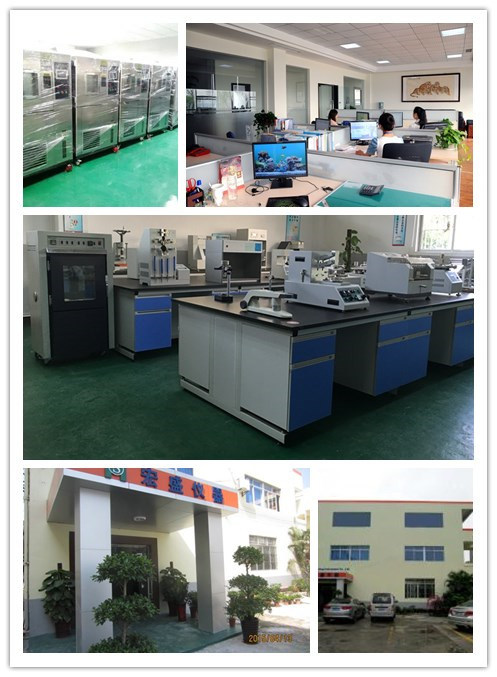

Dongguan Hongsheng Testing Instruments Co., Ltd. was founded in 2010. We are professionally engaged in production and R&D of various materials' physical properties testing equipment. Our main products mainly include: testing equipment for footwear and leather, rubbers and tires, plastic and polymer, paper and packaging, electric, appliance, furniture, luggage, sporting equipment and all kinds of enviromental testing machines.
We have been adopting the world standards and regulations such as ISO, ASTM,DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, and CSA.
With many years of experience in research and development, we help our customers in various fields to create the superior testing system. In the near future, Hongsheng will continuously improve our testing techniquesto adapt new changes in markets.
The Mooney viscometer adopts a new microprocessor and LCD touch screen with built-in automatic balance and calibration device, it can automatically calibrate by pressing the button. With an accurate specimen temperature control system and high torque measuring precision, this machine is highly sensitive to changes in rubber materials, and has a better repeatability and reproducibility. The rotor speed can be changed from 0.1 to 30rpm. After programmed, it can automatically change the speed and continue testing during testing.
Product parameter:
| Temp. control | Controlled by computer&PID.SSR Room temp~200°C |
| Grade of temp.sensor | Class A |
| Temp. precision | Tmp.Tolerance ± 0.3 °C Min. reading of temp. 0.1 °C |
| Heating rate | 30°C ~100°C < 5` |
| Temp. returning time | Retrieve temp. to 100 ° ‹ 60 s |
| Rotor speed | 0.1~30 rpm |
| MOONEY range | 1-250 Mooney units (Auto or manual range.Selectable in software.) |
| Torque unit | kg-cm, lb-in, N-m, dN-m, mooney |
| Min. torque reading | 0.001 unit |
| Function | Mooney Viscosity 3 different speeds can be set for each test. Mooney Scorch Stress Relaxation |
| Test time duration | No time limit |
| Rotor size | L(large) and S(small) type |
| Pressure | 3.6 kg/cm2 (0.36Mpa)Prepared by user |
| Dimension(W×D×H) | 68 × 80 × 130 cm |
| Weight(approx.) | 220 kg |
| Power | 1∮ ,AC 220V±10%, 50/60Hz,10A (Specified by user) |
Package and delivery:
The machines will be surrounded by foam and then packed by standard wooden carton. It is very safety!
For the machines we have in stock, we can ship them out wihitn 7 working days and for the ones we have not in stock, we will send them out 15-35 working days after we get the deposit.
Our Service
Our Company
Dongguan Hongsheng Testing Instruments Co., Ltd. was founded in 2010. We are professionally engaged in production and R&D of various materials' physical properties testing equipment. Our main products mainly include: testing equipment for footwear and leather, rubbers and tires, plastic and polymer, paper and packaging, electric, appliance, furniture, luggage, sporting equipment and all kinds of enviromental testing machines.
We have been adopting the world standards and regulations such as ISO, ASTM,DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, and CSA.
With many years of experience in research and development, we help our customers in various fields to create the superior testing system. In the near future, Hongsheng will continuously improve our testing techniquesto adapt new changes in markets.
