Oilfield Cementing Lab Testing Instrument

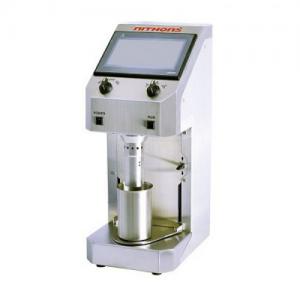

Rotational Viscometer Instrument
Rotational Viscometer Instrument

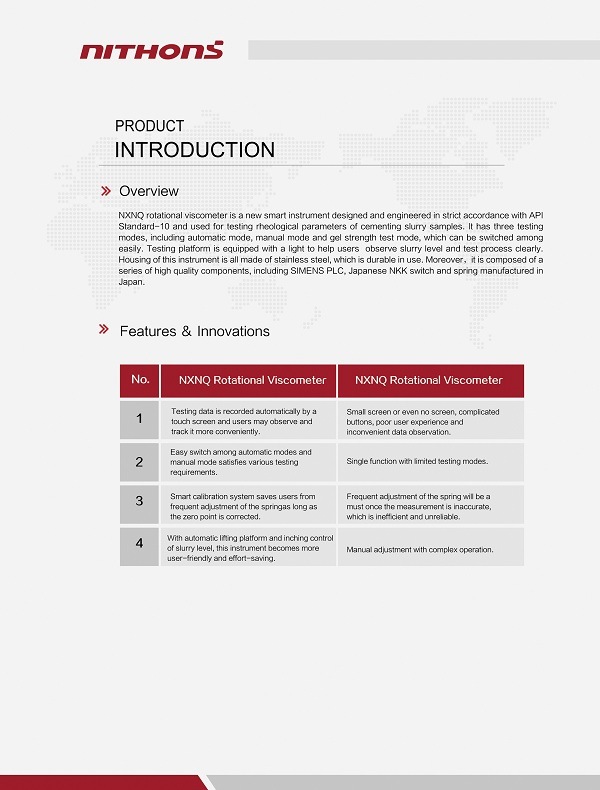

Overview

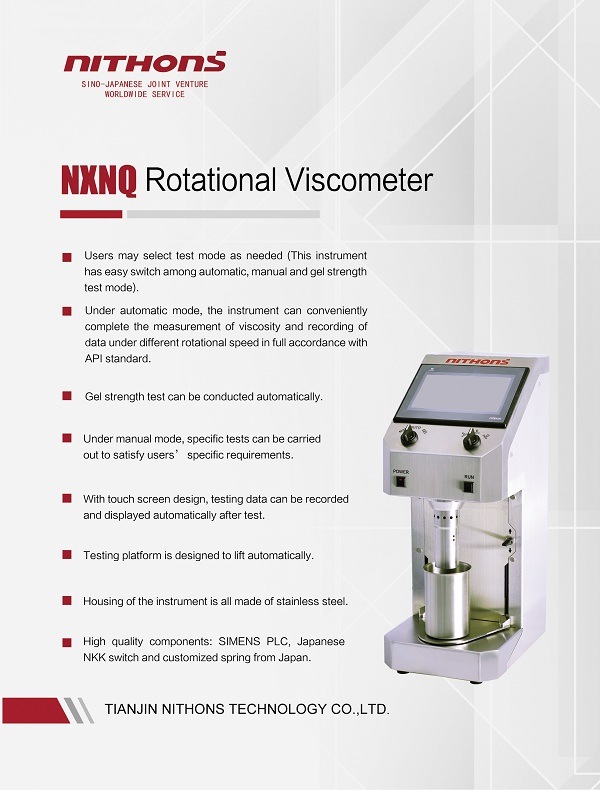

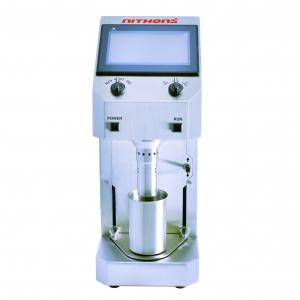

NXNQ rotational viscometer is a new smart instrument designed and engineered in strict accordance with API
Standard-10 and used for testing rheological parameters of cementing slurry samples. It has three testing

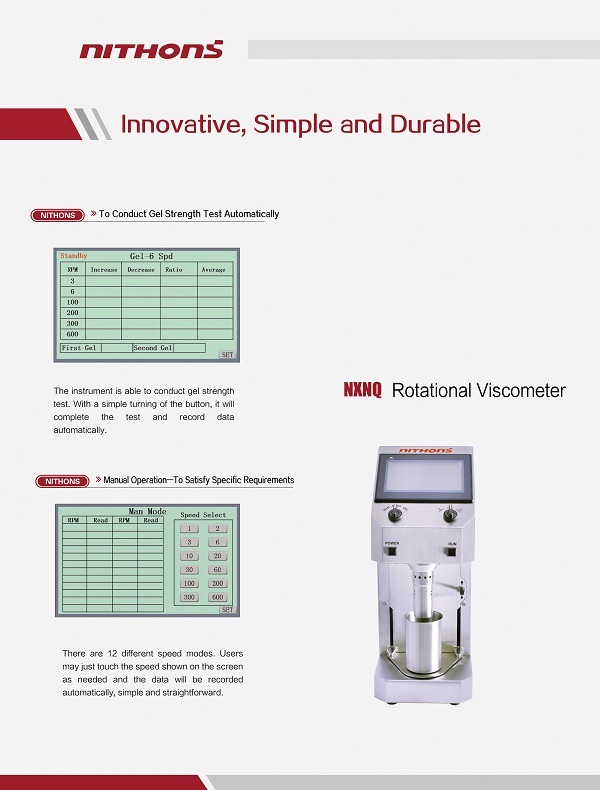

modes, including automatic mode, manual mode and gel strength test mode, which can be switched among easily.

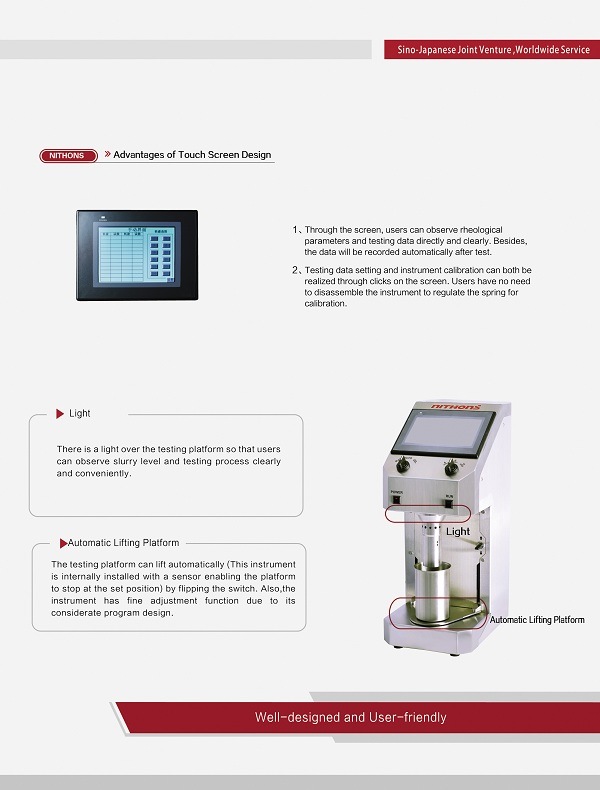

Testing platform is equipped with a light to help users observe slurry level and test process clearly.

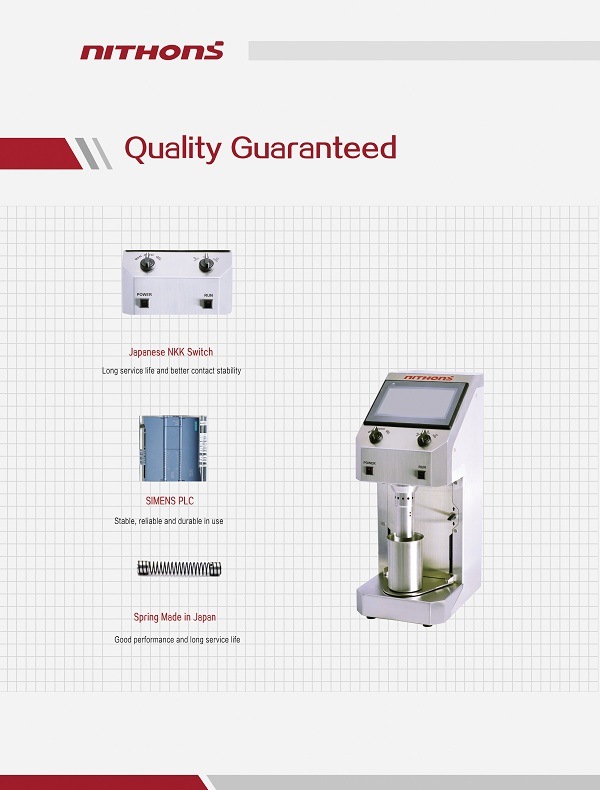

Housing of this instrument is all made of stainless steel, which is durable in use. Moreover,it is composed
of a series of high quality components, including SIMENS PLC, Japanese NKK switch and spring manufactured
in Japan.
Features & Innovations
| No. | NXNQ Rotational Viscometer | NXNQ Rotational Viscometer |

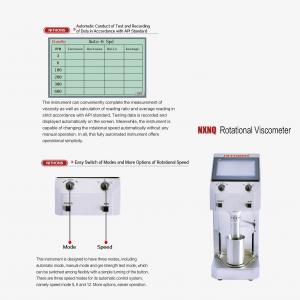

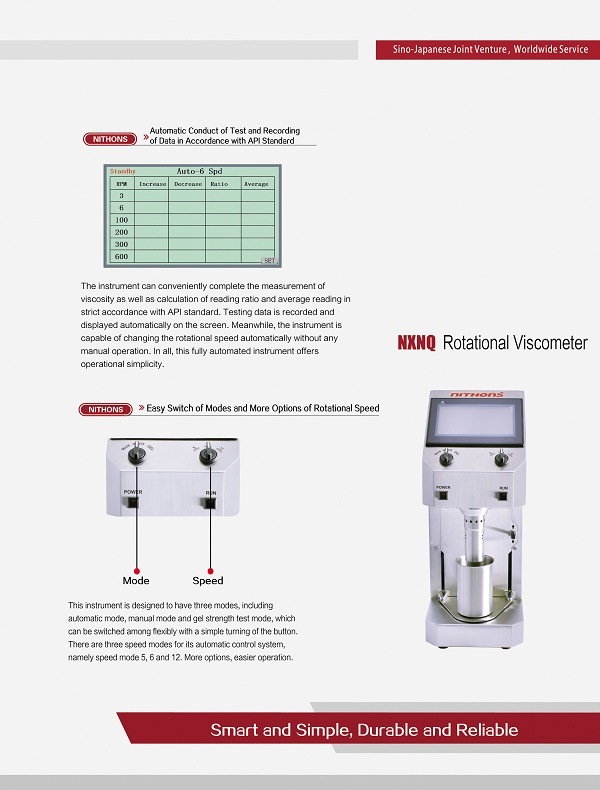

| 1 | Testing data is recorded automatically by a touch screen and users may observe and track it more conveniently. | Small screen or even no screen, complicated buttons, poor user experience and inconvenient data observation. |

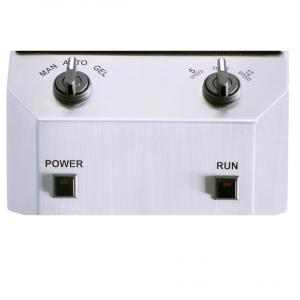

| 2 | Easy switch among automatic modes and manual mode satisfies various testing requirements. | Single function with limited testing modes. |
| 3 | Smart calibration system saves users from frequent adjustment of the springas long as the zero point is corrected | Frequent adjustment of the spring will be a must once the measurement is inaccurate, which is inefficient and unreliable. |
| 4 | With automatic lifting platform and inching control of slurry level, this instrument becomes more user-friendly and effort-saving. | Manual adjustment with complex operation. |
Specifications
| Viscosity Range | 0-450mPa.s | Volume of Slurry Cup | 350ml |
| Input Voltage | AC100-230V | Input Power | 200W |
| Dimensions | 21*27*60cm | Weight | 23Kg |
| Rotational Speed | 1,2,3,6,10,20,30,60,100,200,300,600rpm/min |
Codes of Parts
| Name | Code | Name | Code |
| Slurry Cup | PXN001 | Spring | PXN002 |
If have any questions about our equipments or technical issues ,welcome to contact us !
