The most advanced dot detecor and densimeter: Ecoo Densimeter, equipped with Android OS with HD 720 capacitive touching screen,
Dot mainly expresses hue and gradation in printing industry. They are foundation of copy and color reproduction of printed products. Dot, tiniest unit to adsorb ink in offset print, reflects hue, gradation and tone of source products in printed. Changes of dots results in problems of printed products including sharpness, gradation, hue, contrast, tone of printing ink, ink density and black overprint.
Ecoographix densitometer equipped with advanced dot measurement technology is used for detecting and controlling plate and quality of dot. It supports all kinds of screening technologies used at present including amplitude screening, frequency modulation screening, specialized screening and hybrid screening technology.
Specification
Kit (packed in a carton per unit )
Conditions
Working conditions: temperature 0~40ºC, relatively humidity ≤ 85%, avoid violent collision, heavy dust ;
Storage conditions:temperature:-20~40ºC in dry and cool place.

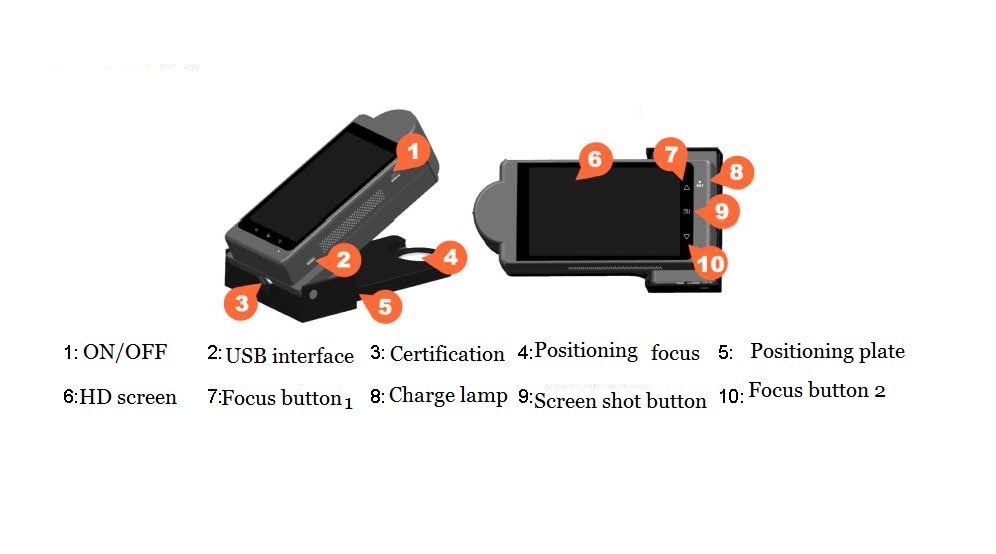

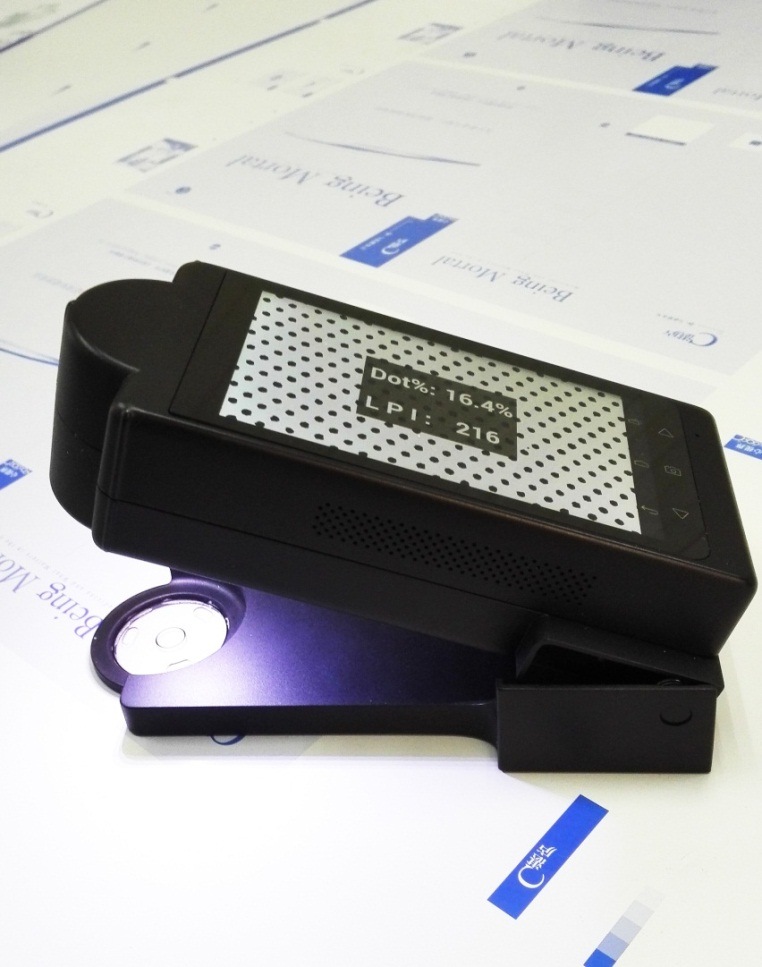

Image of details:
FEATURES:
* Android system, with photo taking, data measuring & saving, wifi connection functions;

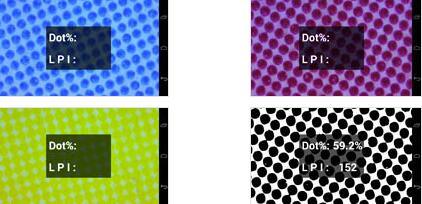

* 720P high resolution touch-screen can represent print image dots clearly;
* Auto-focusing camera can easily realize two different scopes magnifying representation;
* Advanced image processing technology, ensures the data measurement accuracy;

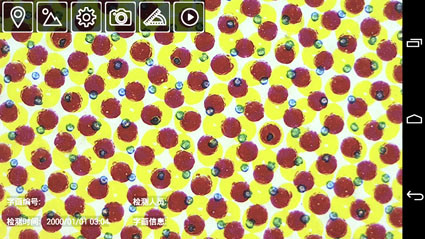

* Eight built-in measurement tools can fulfill not only dot percentage and image screening measuring, but also measure length, angle, area, etc.
Scan by wechart to see the video for more specification
RFQ
1. Do you have other accompanying products to make an easy purchase for some end users?
Yes, we offer full range of prepress and postpress products for offest printing, including CTP/CTcP plates at most favourite price. In addition, blanket, ink, developer, processors, cutting machine and binding machines..
2. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping.
3. What are your main products ?
Generally, we manage two types of products: prepress equipments and consumables, postpress equipments and consumables. Our category is as below:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.
4. How do you delivery the goods?
For small quantity, we delivery the cargo by express service. For large quantity, any kinds are available as customers require.
Contacting:
Tel: +0086 15057085561
Dot mainly expresses hue and gradation in printing industry. They are foundation of copy and color reproduction of printed products. Dot, tiniest unit to adsorb ink in offset print, reflects hue, gradation and tone of source products in printed. Changes of dots results in problems of printed products including sharpness, gradation, hue, contrast, tone of printing ink, ink density and black overprint.
Ecoographix densitometer equipped with advanced dot measurement technology is used for detecting and controlling plate and quality of dot. It supports all kinds of screening technologies used at present including amplitude screening, frequency modulation screening, specialized screening and hybrid screening technology.
Specification
| Model | Ecoo densitometer | Measuring time | 1 s |
| Magnification | 5-200 | Reoeatability | ±0.02 D(density),±1%(dot area) |
| Screen | 720P HD LCD touchable screen | Interface | Micro USB 2.0, HDMI |
| Opearation system | Android 5.0 | Storage | 16GB |
| Digital zoom | 2 | ROM | 2GB |
| Image format | BMP | Battery capability | 3200mAh |
| Net weight | 300g | Battery type | Rechargeable lithium battery |
| Set weight | 500g | Network | WIFI |
| Image size | 1280*720 | Dimension | 185*70*55 mm |
| Lighting | White light LTD*8pcs | Sensor | CMSO 1.3 megapixel |
Kit (packed in a carton per unit )
| 1 | Densitomer | 1 pc | 4 | charger | 1 pc |
| 2 | specification(instruction) | 1 pc | 5 | Wiping cloth | 1 pc |
| 3 | Interface USB cable | 1 pc | 6 | Calibration board | 1 pc |
Conditions
Working conditions: temperature 0~40ºC, relatively humidity ≤ 85%, avoid violent collision, heavy dust ;
Storage conditions:temperature:-20~40ºC in dry and cool place.
Image of details:
FEATURES:
* Android system, with photo taking, data measuring & saving, wifi connection functions;
* 720P high resolution touch-screen can represent print image dots clearly;
* Auto-focusing camera can easily realize two different scopes magnifying representation;
* Advanced image processing technology, ensures the data measurement accuracy;
* Eight built-in measurement tools can fulfill not only dot percentage and image screening measuring, but also measure length, angle, area, etc.
Scan by wechart to see the video for more specification
RFQ
1. Do you have other accompanying products to make an easy purchase for some end users?
Yes, we offer full range of prepress and postpress products for offest printing, including CTP/CTcP plates at most favourite price. In addition, blanket, ink, developer, processors, cutting machine and binding machines..
2. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping.
3. What are your main products ?
Generally, we manage two types of products: prepress equipments and consumables, postpress equipments and consumables. Our category is as below:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.
4. How do you delivery the goods?
For small quantity, we delivery the cargo by express service. For large quantity, any kinds are available as customers require.
Contacting:
Tel: +0086 15057085561
