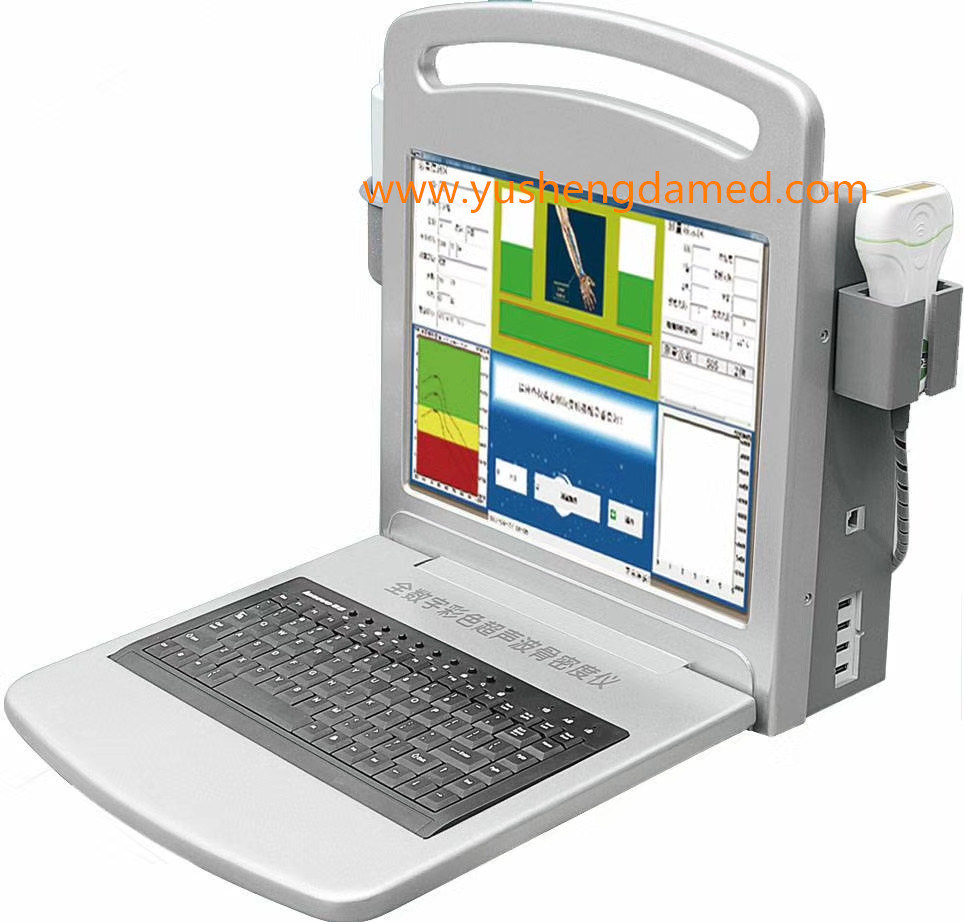

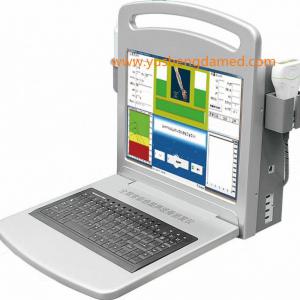

YSD8000A is full digital color ultrasonic bone density instrument ,is made by Chengdu YushengdaTechnology Co., Ltd newly introduces the international advanced technology to launch a new full digital ultrasonic bone density instrument. It has full Chinese operation interface .This product is equipped with adult version and Children's edition two sets of software. You can choose the version of your choice. This device contains different databases that are suitable for different races and gender. It meets the diagnostic criteria of WHO for osteoporosis.
Applicable Department
Obstetrics and Gynecology Department and Pediatrics
Department of Orthopedics and Medical Examination Center
Rehabilitation Department and Geriatric Department
Endocrine and Rheumatism Department
Osteoporosis Special Department
Department of Function
Sports Center and Fitness Center
Calcium and Nutrition Factory.
Suitable Crowd
Bone quality of pregnant woman
The bone density of pregnant women will be significantly changed during pregnancy and lactation pregnant women are the special people who need to be checked in bone density. Calcium supplement Too high or too low is not conducive to the normal growth of bone. Safety and non radiation bone mineral density examination is a reliable guarantee for the health of the mother and child.
Bone quality children
Childhood is an important period of rapid skeletal development .Disease and unhealthy state. They can cause bone growth is not normal and bone mineral deficiency. Regular bone density examination can check the abnormal bone mineral content in childhood in time. Through the analysis of the causes, it can improve the prevention and treatment of the effect.
Bone quality of middle aged and old people
The elderly because of special physical is very easy to calcium loss ,Which leads to osteoporosis. Middle aged women. Postmenopausal women and old men need have bone density examinations regularly. Calcium supplement as needed in time.
Bone quality of infants
The infant is in a period of rapid growth. The absorption of calcium is very high. It lays a solid foundation for the healthy bones in a child's life. This phase requires coordinate bone density examinations. This provides parents a scientific basis for the understanding of the absorption of vitamin D in infants.
Technical Specification:
- Measurement parts: radius and Tibia
- Measurement mode: double emission and double receiving
- Measurement parameters: Speed of sound (SOS)
- Analysis Data: T- Score, Z-Score, Age percent[%], Adult percent[%], BQI (Bone quality Index ), PAB[Year] (physiological age of bone),EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk).
- Measurement Accuracy : ≤0.3%
- Measurement Reproducibility: ≤0.3%
- Measurement time: <25 seconds
- Probe frequency : 1.20MHz
- Date analysis : it adopt a special intelligent real -time data analysis system, it selects the adult or child databases according to the age automatically .
- Temperature control: Perspex sample with temperature instructions
- Probe measurement navigation: this equipment display the Axial angle , the Horizontal Angle , the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data. It is easy to correct the measure angle quickly, improving the measure speed , improving the data Accuracy.
- Probe crystal indication: it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception.
- Daily Calibration: automatic calibrating after power on.
- All the people of the world. It measuring the people between the age Of 0 and 100,(Children: 0-12 years old, Teenagers: 12-20 years old, Adults:20-80 years old, The Elderly 80-100 yeas old, only need to input the age and recognizing automatically .
- Temperature display calibration block: the calibration with pure copper and Perspex, the calibrator display current temperature and standard SOS. The equipment leave the factory with Perspex sample.
- repot mode: color
- Report format: supply A4, 16K ,B5 and more size report
- Bone densitometer main unit: Drawing Aluminum mould manufacturing, it is exquisite and beautiful
- Bone densitometer main unit weight>3.3 kgs
- Bone densitometer probe connector: multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
- Computer Main Unit: the original Dell Rack business Computer. Signal processing and analysis are fast and accurate. (optional )
- Computer configuration: original Dell business configuration: G3240, dual core, 4G memory, 500G hard disk, original Dell recorder., wireless mouse. (optional )
- Computer Monitor: 20' color HD color LED monitor. (optional )

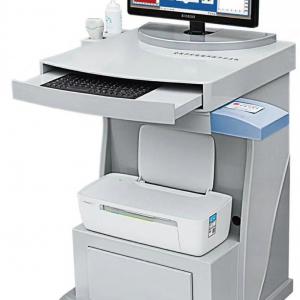

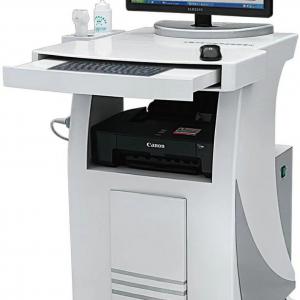

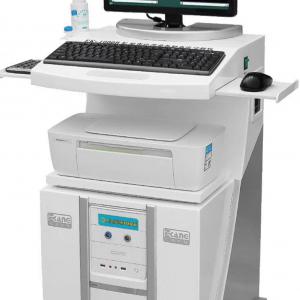

- Trolley(optional)
- Fluid Protection: main unit waterproof level IPX0, probe waterproof level IPX7
- External medical special power supply, power>60W
- Connect to the internet and provide remote services.
1. Ultrasound Bone Densitometer Main unit
2. 1.20MHz Probe
3. Intelligent Analysis System
4. Luxurious Trolley
5. Dell Business Computer with i3 CPU
6. Dell 19.5 Inch Color LED Monitor
7. Canon Color Ink Jet Printer IP2780
8. Calibrating Module (Perspex sample)
9. Disinfectant Coupling Agent
| Package Size: | 1. One Carton Size(cm): 61cm×58cm×49cm G.W.16 Kgs N.W:4 Kgs |
| 2. One Wooden Case Size(cm): 68cm×64cm×98cm G.W.40 Kgs N.W: 32 Kgs |
