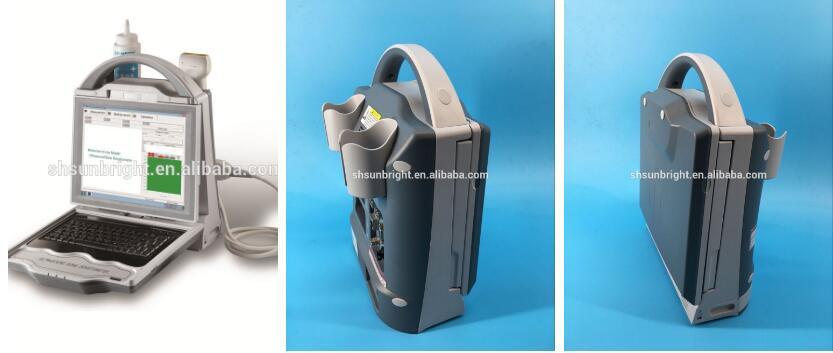

Sun-B2 Ultrasonic Diagnostic Automatic High quality Portable Bone Densitometer
Ultrasound Bone Densitometer SUN-B2 has extensive application. This portable model is the best choice for hospital outgoing examination, hospital wards, Mobile Inspection, Physical Examination Vehicle, Pharmaceutical factory, Pharmacy and Health Care Products promotion.
Our Ultrasound Bone Densitometer always used for Maternal and Child Health Centers, Geriatric Hospital, Sanatorium, Rehabilitation Hospital, Bone Injury Hospital, Physical Examination Center, Health Center, Community Hospital, Pharmaceutical factory, Pharmacy and Health Care Products Promotion
The Department of the General Hospital, Such as Pediatric Department, Gynecology and Obstetrics Department, Orthopedics Department, Geriatrics Department, Physical Examination, Department, Rehabilitation department
Detailed Features
Portable model, easy to move
Precise and Artistic Mould Manufactured
Full dry technology, Makes Diagnostic More Convenient.
Measurement parts: Radius and Tibia.
The measurement process is simple and fast
High measurement speed, short measurement time
High Measurement Accuracy
Good Measurement Reproducibility
The particular correction system to correct system error effectively.
Has different countries clinical database, including: European, American, Asian, Chinese and etc.
WHO international compatibility. It measuring the people between the age of 0 and 100.(Children and Adult)
English menu and Color Printer report
CE Certificate, ISO Certificate, CFDA Certificate
Precise and Artistic Mould Manufactured
Full dry technology, Makes Diagnostic More Convenient.
Measurement parts: Radius and Tibia.
The measurement process is simple and fast
High measurement speed, short measurement time
High Measurement Accuracy
Good Measurement Reproducibility
The particular correction system to correct system error effectively.
Has different countries clinical database, including: European, American, Asian, Chinese and etc.
WHO international compatibility. It measuring the people between the age of 0 and 100.(Children and Adult)
English menu and Color Printer report
CE Certificate, ISO Certificate, CFDA Certificate
Performance parameter
1.Measurement parts: radius and Tibia
2.Measurement mode: double emission and double receiving
3.Measurement parameters: Speed of sound (SOS)
4.Analysis Data: T- Score, Z-Score, Age percent[%], Adull percent[%], BQI (Bone quality Index ), PAB[Year] (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk).
5.Measurement Accuracy : ≤0.25%
6.Measurement Reproducibility: ≤0.25%
7.Measurement time: <25 seconds
8.Probe frequency : 1.20MHz
9.Date analysis, the machine adopts a special intelligent real -time data analysis system, and could select the adult or child databases according to the age automatically .
10. Temperature control: Perspex sample with temperature instructions
11.Probe measurement navigation: This equipment display the Axial angle, the Horizontal Angle, the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data. It is easy to correct the measure angle quickly, improving the measure speed, improving the data Accuracy.
12.Probe crystal indication: it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception.
13.Daily Calibration: automatic calibrating after power on.
14.All the people of the world. It measuring the people between the age Of 0 and 100,(Children: 0-12 years old, Teenagers: 12-20 years old, Adults:20-80 years old, The Elderly 80-100 yeas old, only need to input the age and recognizing automatically .
15. Temperature display calibration block: the calibration with pure copper and Perspex, the calibrator display current temperature and standard SOS. The equipment leave the factory with Perspex sample.
16. Repot mode: color
17. Report format: supply A4, 16K ,B5 and more size report
18. Portable model
19. Computer configuration: CPU dual core, 4G memory, electronic hard disk, wireless mouse
20.Bone densitometer probe connector: multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
21. External medical special power supply, power>60W
22. Connect to the internet and provide remote services.
23.Monitor: 10.4' color HD color LED monitor.
24. Fluid Protection: main unit waterproof level IPX0, probe waterproof level IPX7
25.Main unit weight< 4kgs, easy to carry
1.Measurement parts: radius and Tibia
2.Measurement mode: double emission and double receiving
3.Measurement parameters: Speed of sound (SOS)
4.Analysis Data: T- Score, Z-Score, Age percent[%], Adull percent[%], BQI (Bone quality Index ), PAB[Year] (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk).
5.Measurement Accuracy : ≤0.25%
6.Measurement Reproducibility: ≤0.25%
7.Measurement time: <25 seconds
8.Probe frequency : 1.20MHz
9.Date analysis, the machine adopts a special intelligent real -time data analysis system, and could select the adult or child databases according to the age automatically .
10. Temperature control: Perspex sample with temperature instructions
11.Probe measurement navigation: This equipment display the Axial angle, the Horizontal Angle, the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data. It is easy to correct the measure angle quickly, improving the measure speed, improving the data Accuracy.
12.Probe crystal indication: it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception.
13.Daily Calibration: automatic calibrating after power on.
14.All the people of the world. It measuring the people between the age Of 0 and 100,(Children: 0-12 years old, Teenagers: 12-20 years old, Adults:20-80 years old, The Elderly 80-100 yeas old, only need to input the age and recognizing automatically .
15. Temperature display calibration block: the calibration with pure copper and Perspex, the calibrator display current temperature and standard SOS. The equipment leave the factory with Perspex sample.
16. Repot mode: color
17. Report format: supply A4, 16K ,B5 and more size report
18. Portable model
19. Computer configuration: CPU dual core, 4G memory, electronic hard disk, wireless mouse
20.Bone densitometer probe connector: multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
21. External medical special power supply, power>60W
22. Connect to the internet and provide remote services.
23.Monitor: 10.4' color HD color LED monitor.
24. Fluid Protection: main unit waterproof level IPX0, probe waterproof level IPX7
25.Main unit weight< 4kgs, easy to carry
Configuration
1. Ultrasound Bone Densitometer Main Unit
2. 1.20MHz Probe
3. Famous Brand Embedded Industrial Control Computer
4.Sun-B2 Intelligent Analysis System
5. Calibrating Module (Perspex sample)
6. Disinfectant Coupling Agent
Note: Printer is optional
Package Size
One Carton
Size(cm): 42cm×34cm×44cm
G.W.11Kgs
N.W: 6 Kgs
