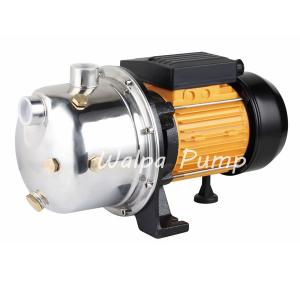

AUTO PRESSURE JETS100 SELF-PRIMING JET PUMPS
Applications & Installation

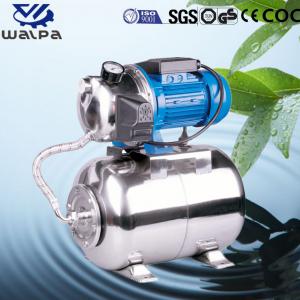

Self-priming JET pumps have the advantages of beautiful design, self-priming in short time, reliable performance, high head and deep suction. The construction is simple and easy to maintain. They are designed to pump clean water and non-aggressive fluids. It is suitable for gardening, water supply, washing, increase water pressure etc. It is usually can be combined with a pressure switch and a surge tank to be used as domestic water system for distributing water.
.
Performance
Working Limits
★ Max fluid temperature up to 80°C
★ Max ambient temperature up to 40°C
Motor
★Two-pole induction motor
★ The speed is 2850 r/min
★ Insulation Class: B/F is available on request
★ Protection Class: IP 44
★ Continuous duty
★ Cooling: External ventilation
★ Total suction lift up to 9 mt.
Materials
★ Pump Body: Cast iron
★ Front Cover: Cast iron
★ Motor Casing: Aluminum alloy
★ Impeller: Brass / Noryl / Stainless steel.
★ Shaft :45# steel/Stainless steel
★ Mechanical Seal: Ceramic/Graphite/ Silicon carbide
Notes
Pumps should be installed in a dry and covered area, protected against the weather.
FAQ
1.Products
a)Q:What products do you mainly produce?
A:We mainly produce many kinds of small electric water pumps,such as:peripheral pumps,self-suction pumps,centrifugal pumps,deep well pumps,JET self-priming pumps,multistage pumps,booster pumps,automatic pump station and electric motors ,generators etc.
b)Q:What do you use to pack the goods?
A:In general,the goods will be packed with strong color or brown carton boxes with foam.
(Also can be according to customers' requirements)
c)Q: What is your MOQ of the products?
A: 10-50PCS
d)Q: What is the delivery time?
A: 25-40 days after receiving your deposit or L/C.
e)Q: Is it all right to make customer's own brand name?
A: That's all right to make your own brand name. And please send us a authorization.
f)Q: Where is your Loading Port?
A: FuzhouPort,China
g)Q: What are your payment terms?
A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
h)Q: What is your company's available production capacity?
A: 35000 pieces per month.
2.Quality
a)Q:How about your products' quality?
A:99% qualified.
b)Q:How can you prove your goods is good quality?
A:We have a very strictly quality control systems,from the selection of materials to finished products,all should be checked by 3 times to make sure everything is right.
c)Q:how many QC procedures do you have?
A:At least 15 checking procedures,for example:inspection of the production plan, purchase plan,technical drawings,selection of raw materials;checking the quality ,appearance ,size,dimension of all raw materials before they come in our warehouse;our technicians will go to instruct our workers to assemble goods with proper way and go along with inspectors to check quality of goods when begin to produce goods;then we wil have a series tests to all goods to make sure our goods work perfectly.
Applications & Installation
Self-priming JET pumps have the advantages of beautiful design, self-priming in short time, reliable performance, high head and deep suction. The construction is simple and easy to maintain. They are designed to pump clean water and non-aggressive fluids. It is suitable for gardening, water supply, washing, increase water pressure etc. It is usually can be combined with a pressure switch and a surge tank to be used as domestic water system for distributing water.
.
Performance
| TYPE | Output | Power | Current | Capacitor | H.max | Q.max | Size | S.Head | N.W | Package Dimention |
| Kw | HP | (A) | (uF) | (m) | (L/min) | (inch) | (m) | (kg) | L×W×H(mm) | |
| AUTOJETS100 | 0.75 | 1 | 5 | 20 | 50 | 52 | 1"*1" | 9 | 19 | 470 x 290 x 540 |
Working Limits
★ Max fluid temperature up to 80°C
★ Max ambient temperature up to 40°C
Motor
★Two-pole induction motor
★ The speed is 2850 r/min
★ Insulation Class: B/F is available on request
★ Protection Class: IP 44
★ Continuous duty
★ Cooling: External ventilation
★ Total suction lift up to 9 mt.
Materials
★ Pump Body: Cast iron
★ Front Cover: Cast iron
★ Motor Casing: Aluminum alloy
★ Impeller: Brass / Noryl / Stainless steel.
★ Shaft :45# steel/Stainless steel
★ Mechanical Seal: Ceramic/Graphite/ Silicon carbide
Notes
Pumps should be installed in a dry and covered area, protected against the weather.
FAQ
1.Products
a)Q:What products do you mainly produce?
A:We mainly produce many kinds of small electric water pumps,such as:peripheral pumps,self-suction pumps,centrifugal pumps,deep well pumps,JET self-priming pumps,multistage pumps,booster pumps,automatic pump station and electric motors ,generators etc.
b)Q:What do you use to pack the goods?
A:In general,the goods will be packed with strong color or brown carton boxes with foam.
(Also can be according to customers' requirements)
c)Q: What is your MOQ of the products?
A: 10-50PCS
d)Q: What is the delivery time?
A: 25-40 days after receiving your deposit or L/C.
e)Q: Is it all right to make customer's own brand name?
A: That's all right to make your own brand name. And please send us a authorization.
f)Q: Where is your Loading Port?
A: FuzhouPort,China
g)Q: What are your payment terms?
A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
h)Q: What is your company's available production capacity?
A: 35000 pieces per month.
2.Quality
a)Q:How about your products' quality?
A:99% qualified.
b)Q:How can you prove your goods is good quality?
A:We have a very strictly quality control systems,from the selection of materials to finished products,all should be checked by 3 times to make sure everything is right.
c)Q:how many QC procedures do you have?
A:At least 15 checking procedures,for example:inspection of the production plan, purchase plan,technical drawings,selection of raw materials;checking the quality ,appearance ,size,dimension of all raw materials before they come in our warehouse;our technicians will go to instruct our workers to assemble goods with proper way and go along with inspectors to check quality of goods when begin to produce goods;then we wil have a series tests to all goods to make sure our goods work perfectly.
