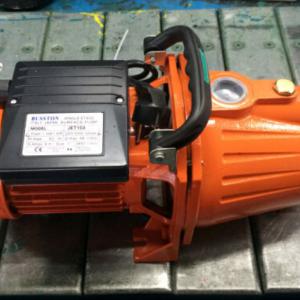

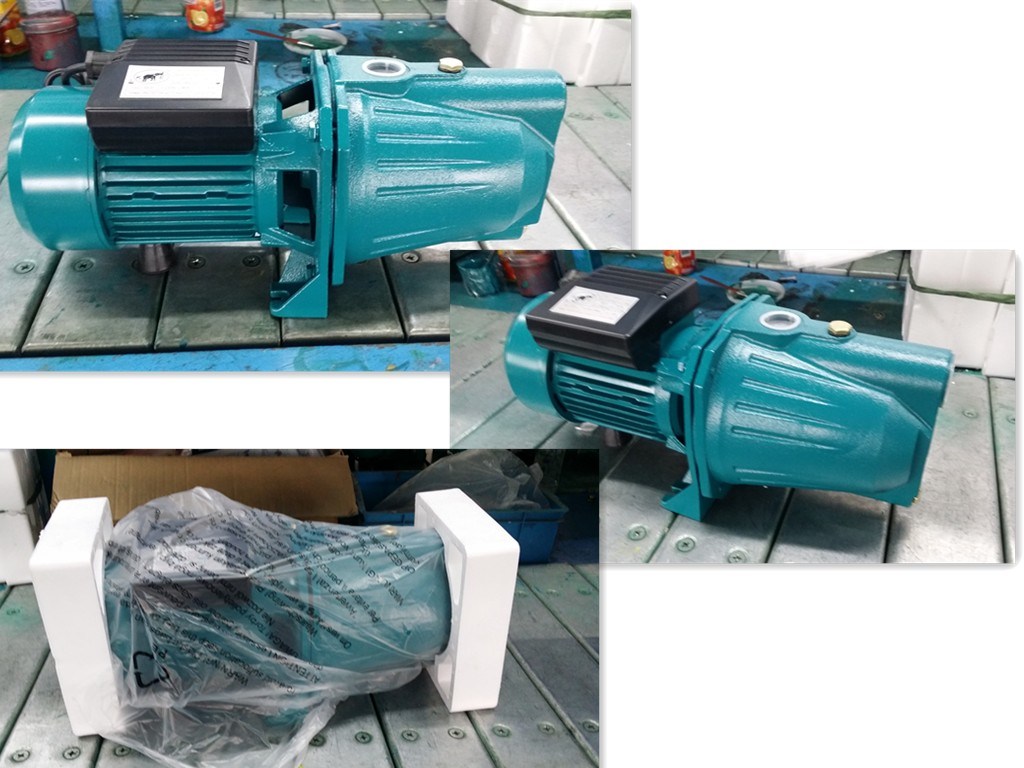

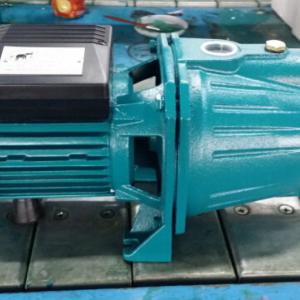

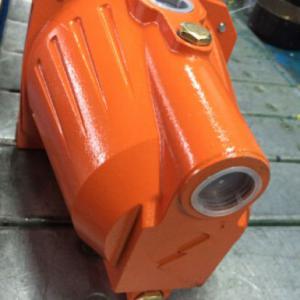

0.75kw /1.0HP Cast Iron Brass Impeller Electric Self-Priming Jet Pump
Applications
JET-L series self-priming pumps are high efficient jet pumps with excellent suction even when there are air bubbles.The pump consists of a single impeller,centrifugal pump and a jet pipe with a nozzle.The series pumps are particularly suitable for water supplying in domestic installations,small-scale agriculture watering and where self-priming operation is demanded.
OPERATING CONDITIONS
.Liquid temperature up to 60ºC
.Ambient temperature up to 40ºC
.Total suction lift up to 9m
.Continuous duty
CONSTRUCT
PUMP
Pump Body:Cast Iron
Impeller:Brass/Techno-polymer/Aluminum
Mechanical Seal:Carbon /Ceramic/ Stainless Steel
Nozzle:P.P.O/Aluminum
JET Pipe: P.P.O/Aluminum
Diffussor: P.P.O/Aluminum/ Cast Iron

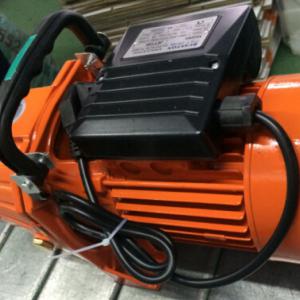

MOTOR
Single Phase
Heavy Duty Continuous Work
Motor Housing:Aluminum
Shaft:Carbon Steel/Stainless Steel
Insulation:Class B/Class F
Protection:IP44/IP54
Cooling:External Ventilation
Performance Chart
| DN1 | DN2 | DIMENSIONS(mm) | ||
| n | h | f | ||
| 1" | 1" | 173 | 198 | 402 |
| 1" | 1" | 180 | 203 | 420 |
| 1" | 1" | 180 | 203 | 420 |
| 1" | 1" | 180 | 203 | 402 |
| 1" | 1" | 173 | 203 | 420 |
| 1 1/4" | 1" | 216 | 215 | 440 |
PERFORMANCE DATA 50Hz
| MODEL | P2 | DELIVERY n≈2850 r/min | ||||||||||
| 1~ 220V/240V | KW | HP | Q | m³/h | 0 | 0.6 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 |
| l/min | 0 | 10 | 20 | 40 | 60 | 80 | 100 | 120 | ||||
| JET60B | 0.37 | 0.5 | H(m) | 36 | 26 | 20 | 7 | |||||
| JET80B | 0.55 | 0.75 | 42 | 32 | 26 | 12 | ||||||
| JET100M(100A100B100S) | 0.75 | 1 | 47 | 38 | 32 | 24 | 9 | |||||
| JET102M | 0.75 | 1 | 50 | 42 | 36 | 28 | 20 | |||||
| JET150M | 1.1 | 1.5 | 50 | 45 | 40 | 32 | 21 | 15 | 10 | 8 |
