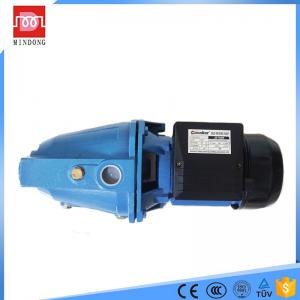

JETB Series self-priming jet water pump
The JETB series are injection type clean water pumps, which are composed of a centrifugal pump and a nozzle, have the advantages of beautiful design, self-priming in short time, reliable performance, high head and deep suction. They are suitable for pumping clean water and non-aggressive liquid. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and pressure boosting etc.
Pumps should be installed in a covered area, protected against the weather.
Operating limitations
Max ambient temperature up to 40ºC
Max fluid temperature up to 40ºC
Max pressure up to 10 bar

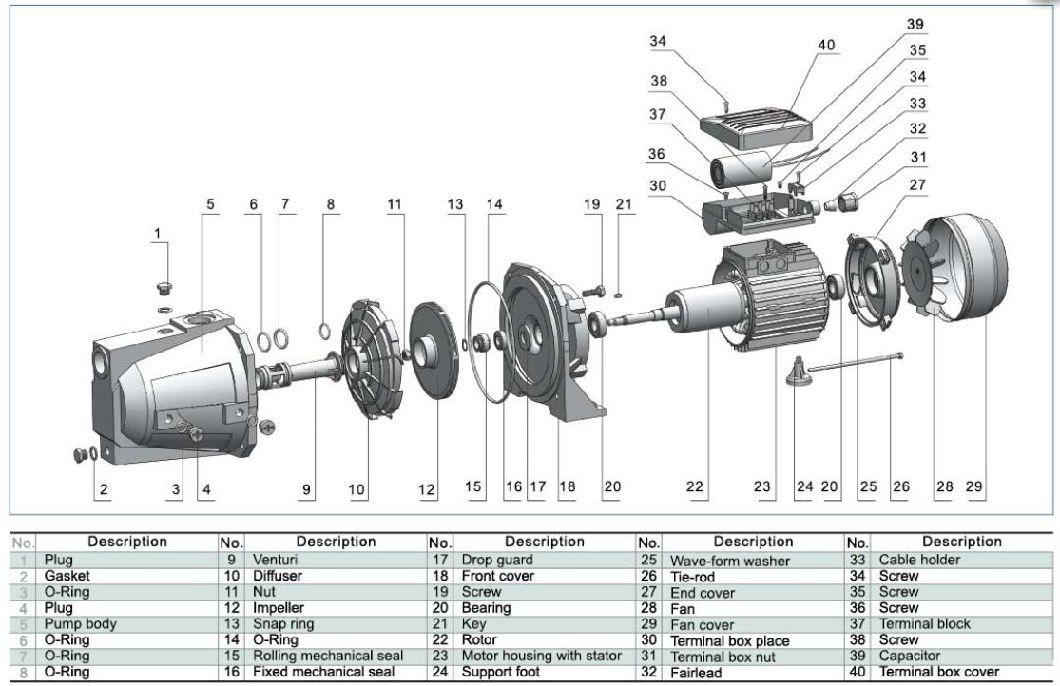

Construction features
Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45# steel /stainless steel
Impeller: Brass/Stainless Steel/PPO optional
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44 /IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/metalized carbon
The JETB series are injection type clean water pumps, which are composed of a centrifugal pump and a nozzle, have the advantages of beautiful design, self-priming in short time, reliable performance, high head and deep suction. They are suitable for pumping clean water and non-aggressive liquid. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and pressure boosting etc.
Pumps should be installed in a covered area, protected against the weather.
Operating limitations
Max ambient temperature up to 40ºC
Max fluid temperature up to 40ºC
Max pressure up to 10 bar
Construction features
Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45# steel /stainless steel
Impeller: Brass/Stainless Steel/PPO optional
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44 /IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/metalized carbon
