Our company
WELTOP MACHINERY Co., Ltd. is specialized in professionally producing centrifugal casting machine.
Our factory is very famous in the foundry industry which has 16 years manufacture experience. We're providing the most competitive price in the world. We can guarantee the quality to assure the order, let all customer trust us. We always strive to deliver what we promised because of our excellent technology. We have a very professional development team indoor, they're all senior engineer. The machines' electronic control system is completely developed by ourselves. Our machine is widely used in the aluminum products factory which including the high demand of Chinese military enterprises and large auto manufacturers.
Welcome to visiting our factory, you will surely satisfied our products better after the visiting.
Non-standard equipment are individually customized with your technological requirements. So email us and we will design equipment as your demand.

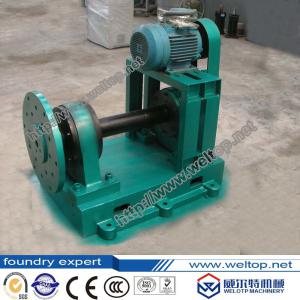

FeatureHost is the core component of cantilever centrifugal casting machine, which makes the turntable rotate. It can realize the centrifugal casting.
With converter motor driving main axle rotate by belt. It has widely speed range. The main axle is stepless speed regulation so that the equipment can be able to meet technical requirements of casting with different diameter.
With using casting lathe bed, the machine runs more smoothly.

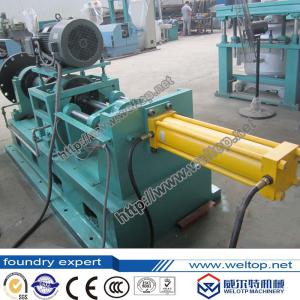

The ejection mechanism is driven by pneumatic linear actuator. When the host stops the casting will be pushed out from the die pipe.
In the casting process, pipe die and mold can be cooling by manual control.

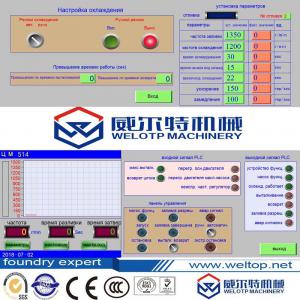

The control unit use PLC. The display unit is touch screen which can set process parameter and store casting process parameters. The process speed and speed time can set up and modify. The touch screen can display speed, working state and alarm information of the machine,

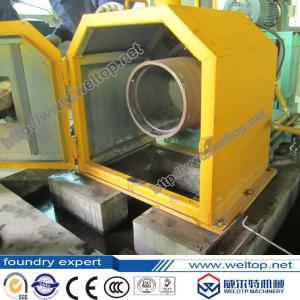

Equipped with safety protection cover it ensures safety in production.
Technical specification
| name of parameter: | parameter values |
| Casting maximum diameter | Ø300 mm |
| Casting maximum length | 400 mm |
| The maximum load(die+mold) | 0.4 Tons |
| Main machine power of motor | 5.5 Kw |
| Speed of mold | 0~2000 rpm |
| Air pressure | 0.6 Mpa |
| Ejector stroke | 100 mm |
