Production description

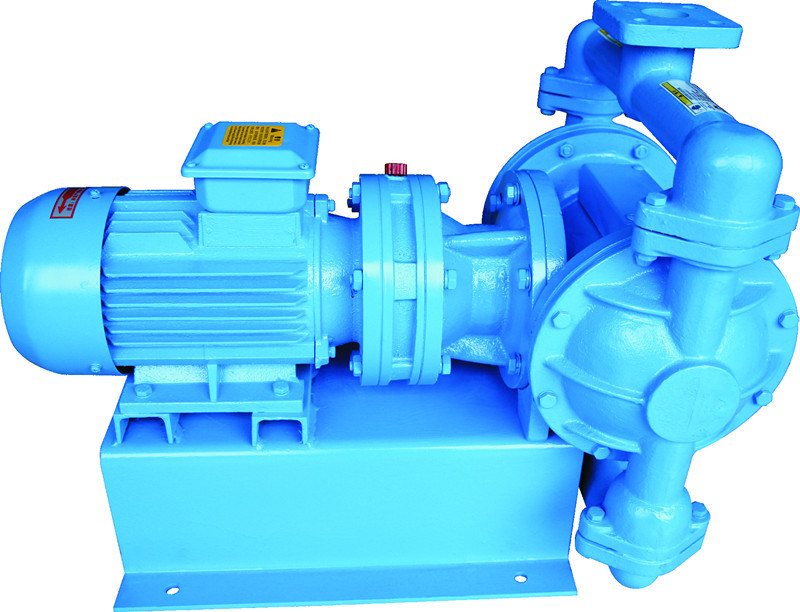

Electric diaphragm pump adopts the cycloidal reducer drive, through the crank slider mechanism drives the double diaphragm for reciprocating motion, make changes alternately working volume so as to achieve the liquid suction and discharge.At the same time, because the diaphragm material breakthrough progress has been made in recent years, greatly extend the service life of the diaphragm, thus replacing part of the centrifugal pump, screw pump has been more and more widely applied in petrochemical, ceramics, metallurgy and other industries.
Production Feature
1. Not need to pour water, self-absorption capacity is 7 meters.
2. With good performance, particles and mud with a diameter of less than 10mm can be passed without difficulty.
3. Since the diaphragm will be separated by the transmission medium and the transmission mechanism, the medium will never leak out.And the pump itself has no shaft seal, the service life is greatly extended.According to different media, the diaphragm is divided into chloroprene rubber, nitrile rubber, fluoro rubber and teflon, etc., which can meet the requirements of different users.
4. The pump medium flows through some parts, and can be divided into cast iron, stainless steel and aluminum alloy according to the requirements of the user. The motor is divided into ordinary motor and explosion-proof motor.
Main Use
1. All kinds of poisonous, flammable, volatile liquid.
2. Various strong acid, strong alkali, strong corrosive liquid.
3. Can transport high temperature of 150 ° C of medium.
4. As a presser for various press filters.
5. Hot water recycling and recycling.
6. Oil tanker, oil depot, oil cargo handling.
7. Pump pickles, jam, mashed potatoes, chocolate, etc.
8. Pump paint, gum, pigment adhesive.
9. Various porcelain glaze, cement grouting, mortar, mud.
10. Various latex latex, organic solvents and fillers.
11. Drain the tank and drain the oil from the tank.
12. Hops and fermented powder, syrup, molasses.
13. Pumping mines, tunnels, tunnels, sewers and sediments.
14. The absorption of various special media.
Main specifications
| Model | Pump | Flow m3/h | Head m | Suction m | Motor power kw | Temperatuer °C | Reducer model | |||
| Inlet | Outlet | CI | SS | Aly | ||||||
| DBY-10 | thread | 3/8 | 0.5 | 40 | 3 | 0.55 | 100 | 150 | 80 | XWD0.55-2-35 |
| DBY-15 | thread | 1/2 | 0.75 | 40 | 3 | 0.55 | 100 | 150 | 80 | XWD0.55-2-35 |
| DBY-25 | 25 | 25 | 3.5 | 40 | 4 | 1.5 | 100 | 150 | 80 | XLD1.5-3-35 |
| DBY-40 | 40 | 40 | 4.5 | 40 | 4 | 1.5 | 100 | 150 | 80 | XLD1.5-3-35 |
| DBY-50 | 50 | 50 | 6.5 | 40 | 4.5 | 2.2 | 100 | 150 | 80 | XLD2.2-3-35 |
| DBY-65 | 65 | 65 | 8 | 40 | 4.5 | 2.2 | 100 | 150 | 80 | XLD2.2-3-35 |
| DBY-80 | 80 | 80 | 16 | 40 | 5 | 3 | 100 | 150 | 80 | XLD3-3-35 |
| DBY-100 | 100 | 80 | 20 | 40 | 5 | 3 | 100 | 150 | 80 | XLD3-3-35 |
Package
