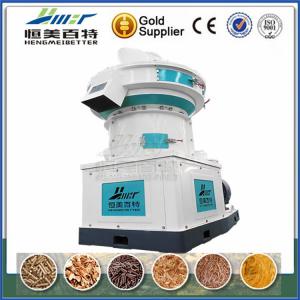

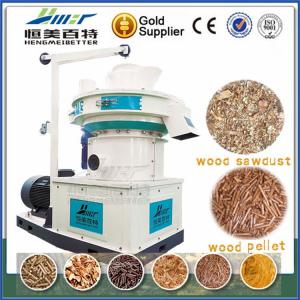

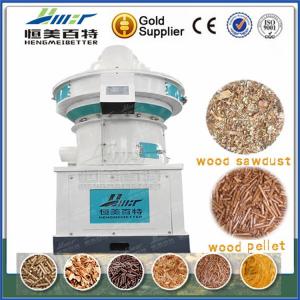

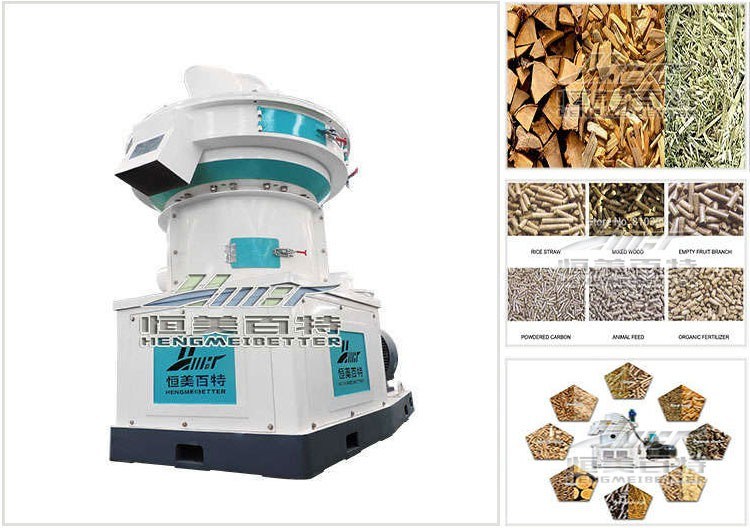

The latest technology pine maize straw briquette machine
Maize straw briquette machine, the oil pump, 20- 24 hrs working ,lubricate the bearing per half an hr automatically, is a new type of maize straw pine briquette machine that the raw material could be various firewood, crop stalks like corn stalk, eat stalk, sunflower stalk, beanstalk etc.
Pine maize straw briquette machine, can be used in feed mill, wood processing plants, fuel plants, fertilizer plants and chemical plants etc.Also the final pellets can be used for industrial boilers and large power plants as well as home heating.
SPECIFICATIONS FOR 1-1.5 TON PELLET MACHINE | |||
Engine | Engine model | model | 560 |
Engine power | kw | 90 | |
Rotate Speed | rpm | 1450 | |
Main performance parameters | Diameter of die | mm | 560 |
Pellet specification | mm | 2-12 | |
Pellet temperature | ºC | 80ºC-100ºC | |
Other | Raw material moisture content | % | 10-15% |
Output | T/h | 1-1.5 | |
Voltage | V | 380 |
Features of pine maize straw briquette machine
1) The latest technology pine maize straw briquette machine .
2) Vertical feeding, directly in place.
3) Die is static, rollers rotarying; materials are evenly distributed around, because of centrifugal force.
4) Doublelayer die. Two layers both can be used independently so the machine reduces the cost; What's more, two layers of the die also can be used at the same time, in this way, the efficiency has been improved greatly, high capacity and save energy.
5) Ring die and vertical structure are useful in cooling pelletizing room.
6) Independent and frequency conversion discharge device can ensure the rate of pellet formation.
7) To ensure security, the feed inlet of this machine adopts self-suction design to avoid serious damage to operators.
How to make your own pellets with our maize straw briquette machine
The complete maize straw pellet making production line is composed the following steps.
Step1:Crushing
1) Before raw materials are made into biomass pellets of wood pellet machine,they are firstly reduced into smaller, uniform- sized particles. When the thickness is larger than 6 mm or size is greater than 50*50 mm, a wood pellet machine is needed to chip these materials into smaller pieces.
Step2:Drying
2) After all the raw material of wood pellet machine are crushed, dryer will be needed since for the most raw materials have the moisture content of about 50%.However, in general the optimal moisture content for pelletiztion is 13%-15%. Therefore, a rotary dryer is included in the wood pellet machine to reduce the moisture content.
Step3:Pelletizing
3) After crushing and drying all the raw materials properly, it is ready for the wood pellet machine. The wood pellet machine or press is the key piece of machine in the wood pellet plant. Wood pellet machine should be mentioned that impurities for the raw materials just like metal or stone, may damage the die and rollers of pellet machine.
Step4:Cooling
4) Usually after pelletizing, the temperature of wood pellet can reach almost60-80degrees, and also the moisture content is close to 15%. For storage purposes, a cooler must be used to reduce the surface temperature and moisture content.
Step5:Packing
5) Finally is the packing process of wood pellet making line. Inorder to protect the wood pellets from getting damaged and to increase storability, proper packing is necessary.
Certifications of The latest technology pine maize straw briquette machine

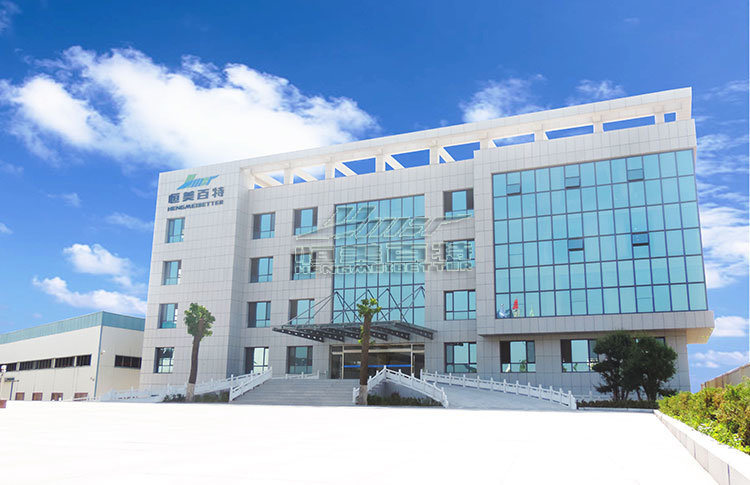

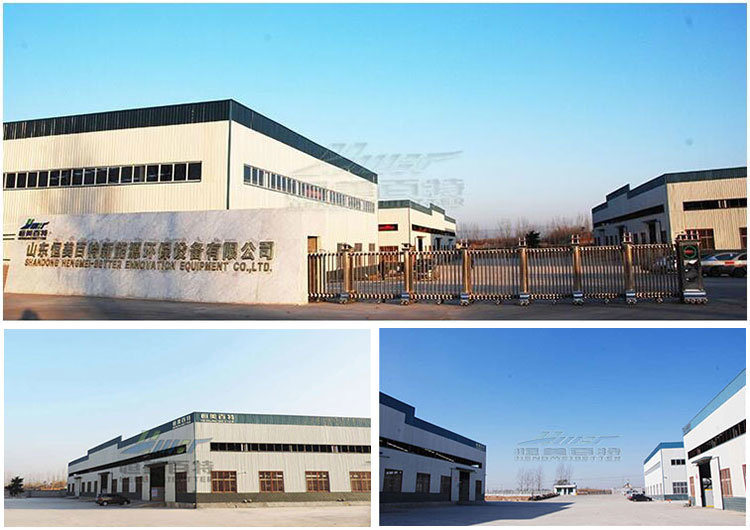

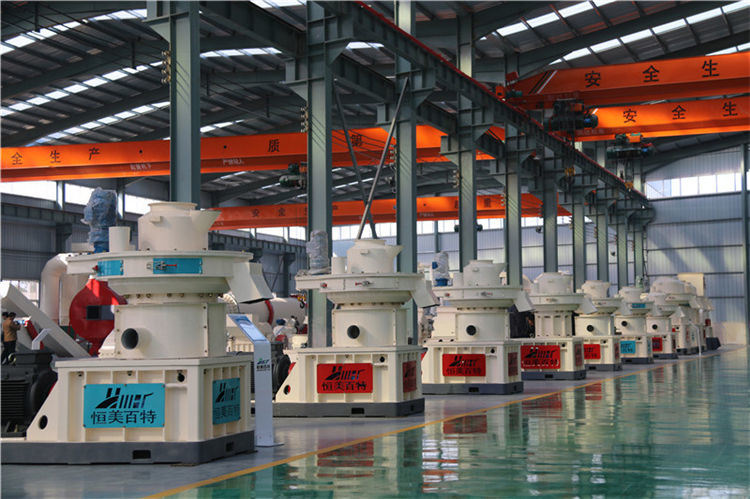

Factory of The latest technology pine maize straw briquette machine
Our company is a domestic large-scale new energy environmental protection equipment manufacturers in China. The registered trademark is "Hengmei Better". Also has an outstanding technical R & D team which has exuberant anufacturing capacity, and we have establish long-term jointly research and development with colleges and university in domestic. Meanwhile, we focus on the trend of industry development in the whole world, expanding technique and innovation cooperation and exchanges with professional R&D institutions in Germany, Finland and other countries. Our main product have maize straw briquette machine,wood pellet mill,wood pellet machine, wood pellet making mill machine,biomass pellet mill machine,sawdust pellet mill machine,straw pellet mill machine,feed pellet mill machine and Construction Waste Crushing and Recycling Workstation, New Energy Particle Machinery, Organic Fertilizer Machinery, Broken machine. Totally, have 56 kinds of products, more than 200 models.
Pre-Sales Service of maize straw briquette machine
* Details of product performance characteristics and uses of the wood pellet machine.
* Provide detailed engineering proposal, quotation and equipment information.
* View our factory and sign the contract terms,welcome to visit and cooperation.
After-Sales Service of maize straw briquette machine
* Providing all-embraced warranty of products quality, worksite installation guidance.
* Providing ample spare parts and training of operation and maintenance.
* Providing timely delivery, standby engineers are ready to solve any of your problem in time.
Which payment method do you support ?
1) We support T/T and L / C payment.After you decide to purchase, we will send you proforma invoice with our bank information,bring this PI to the bank, and ask to make T/T or L/C for the payment. For single set, your machine can be ready within 7-10 days after we getting the payment, we will send to the port and deliver to you by sea.
How can I trust on your quality ?
2) We have obtained CE quality certification and ISO quality certification, and We are alibaba legitimate certification company (VIP), we support payment terms: L/C and T/T, to ensure your safety, We ensure that All of the machine be tested successfully in workshop before shipment.
When we only building one biomass pellet mill , can we use it to produce other sizes of particles?
3) Yes, you can. It depends on your production requirement, different size of ring die can produce particles of different sizes.it can be used to produce a wide range of pellets, such as biomass fuel pellets, wood pellets, animal feed pellets, organic fertilizer pellets, etc.
Will you dispatch the engineer to guide installation the wood pellet production line ?
4) Yes, according to the customer's requirement, we will dispatch the engineer to guide installation the wood pellet production line .
How about you to ensure the pellet mill normal running ?
5) Except the installation engineer, we also provide the production engineer to guide how to keep a good production.
