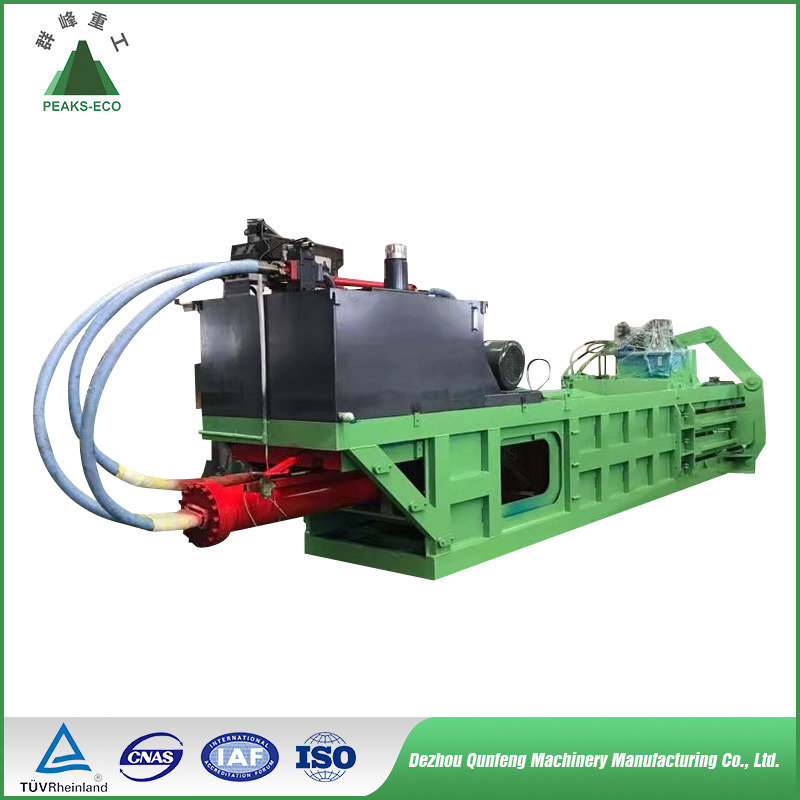

Horizontal mobile square maize straw baler /Full-Automatic Horizontal rice straw balers
Why choose us?
1. Company own factory for better quality control;
2. Original Design Manufacturer for customized service;
3. More than 15 years of successful experiences in recycling industry;
4. Turn-key project and oversea after-sale service.
Waster paper baler machine with ISO certificate:
FDY series Intelligent baler machine is a kind of environment protection equipment, Using the hydraulic principle, it made the waste paper, cardboard, used clothes, straw, tyre and other loose material compressed into a block, so that we can store, transport and utilize them easily expediently.Hydraulic baler machine is widely used in recycling center and packaging plant, which has great effect on environment and resource protection.
It adopted hydraulic transmission, reasonable design, smooth running, simple operation.
Feed opening size, bale size, maximum working pressure and capacity of motor can be customized.
It can reduce storage space, saving up to 80% of stacking space. Reducing transportation and labor costs, also conducive to environmental protection and waste recycling.
Classification for waste paper baler
There are two series: Full automatic baler machine and Semi automatic baler machine.
Loose Material including: waste paper, garbage, cardboard, PET bottle, waste tyre, straw, rice, scrap plastic, palm thread, Mineral wool, hay, cotton, waste paper box, plastic, used clothes, silk, plastic film, yarn, woven bag, etc.
Technical parameters of baling press machine:
| Parameters of 850 full-automatic waste paper baler machine | ||||||
| 1 | Main cylinder | Mode | Φ220 | Travel | 2500mm | Homemade cylinder |
| Nominal force | 1500KN | Amount | 1 set | |||
| 2 | Side plate of main cylinder | 10# | ||||
| 3 | Pressure of hydraulic system | 1500KN | ||||
| 4 | Feed Opening size | 1100*2000mm | ||||
| 5 | Bale size | 1100*850*L(Adjustable:1500-2000) | 3 lines | |||
| 6 | Bale density | 500kg/m³ | ||||
| 7 | Main engine power | 30KW-4+5.5KW+5.5KW | ||||
| 8 | Power supply specification | 25m² soft copper | ||||
| 9 | Packaging line | 12# iron wire | ||||
| 10 | Operation Way | Manual operation / Automatic | ||||
| 11 | Cooler | 8m² | ||||
| 12 | Production capacity | 7-10 bales per hour | ||||
| 13 | Hydraulic pump mode | Plunger pump 160ml/r*1 Gear pump 25ml/r*1 | FWD | |||
| 14 | Capacity of Fuel tank | 1.5m³ | ||||
| 15 | Conveyor (Steel tank Structure) | W2*9 m |
Features of waste paper baler:
- All models are hydraulically driven and can be operated manually or automatically by PLC;
- Including: Mainframe, conveyor, cooling system;
- Compression chamber size and package size can be customized according to customer requirements;
- Horizontal structure, can be fed with conveyor or manual feeding;
- Remote control, Button operation, PLC control, manual operation, safe and reliable;
Characteristics:
1. Hydraulic drive;
2. Reasonable design, smooth operation, flexible to control;
3. Compression strapping for cotton, waste paper, waste plastic, metal and other loose materials;
4. Attractive, reliable and economic.
Advantages:
1. Mainframe
The main frame of machine is combined with shape steel and steel plate Q345, It can not only ensure the compressive capacity of the equipment, but also guarantee the service life of the machine. Besides, it also can save the purchase cost for our customers;
2. Hydraulic system
Our hydraulic systems are patented part. The motor and oil pump are integrated, it helps to minimize the error in assembling, reduce the malfunction and maintenance, low working noise and high efficiency. The pressure of plunger pump has been increased to 31.5mpa, so that the pressure of holistic hydraulic system has been improved also;
3. Controlling System
The controlling system adopted the most advanced operating procedure, both semi-automatic and full-automatic modes are commanded by PLC control and Remote control. And the voltage of semi-automatic mode is also 24 V, it's easy for operating and has high safely performance. These components are world's famous brands, such as CHNT, and Schneider.

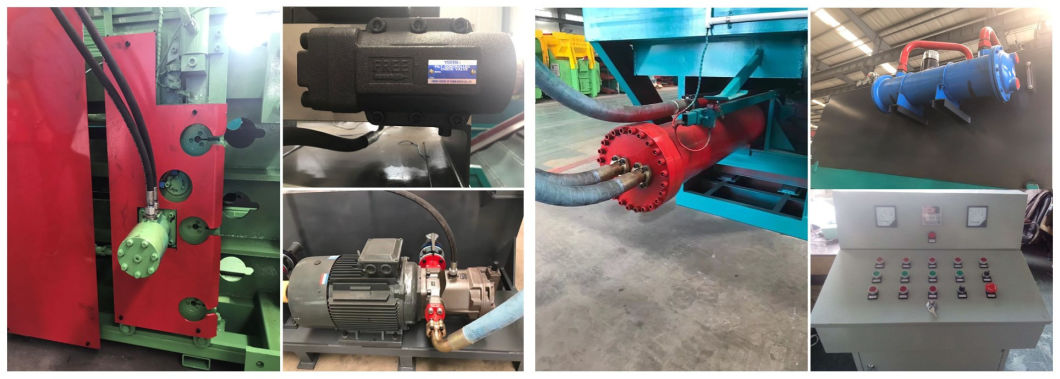

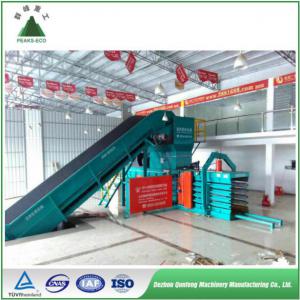

Product Details Show:
Our factory:
* More than 10 years in recycling waste industry.
* One of the largest hydraulic machinery equipment manufacturing enterprise.
* Providing solutions and the equipment to various municipal waste sorting system.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our service
Pre-sale service :
1. Inquiry and consulting support
2. Same testing report
3. View our factory
After-sale service:
1. Training how to install and maintenance the machine, how to use the machine
2. Engineer are available to service machinery overseas.

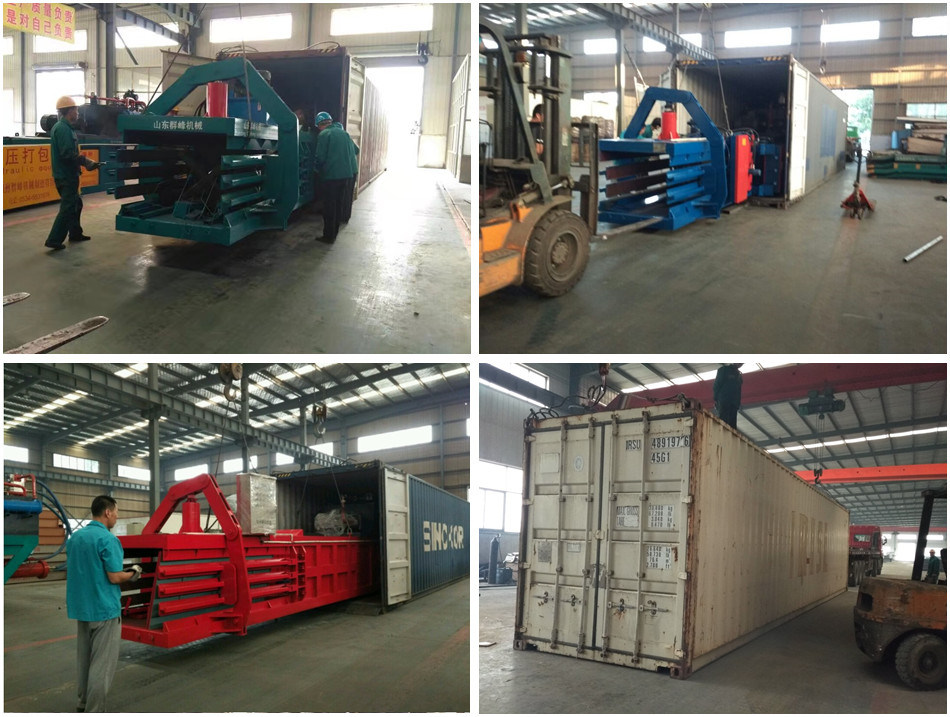

Product Packaging:
Packing details:
Size: 2*40 HC
Weight: 14000~16000KG
Delivery time: Within 30-35 days after order confirmed, based on order quantity.
Port of loading: Qingdao port
FAQ:
1. Why buy a baler?
2. Where to buy a suitable baler?
Qunfeng is a leading manufacturer of recycling equipment, like cardboard baler machine, hay baler, straw baler, waste tyre baler, waste PET bottle baler, metal baler, etc.With CE, TUV and ISO certificated, Quality guaranteed. You submit your requirement, such as: Which kind of material need to be baled? Daily capacity, let's say how many tons per day or per hour? Recycling center or packaging plant? Then, our skilled engineer will make a suitable solution for you, with technical drawing.
3. How to buy a good baler?
As you know, there are many baler provider in the market.
There are several different points from other supplier:
- The improvement of control system helps the baling efficiency increased greatly, compared with other manufacturers of the same model, we could produce 2-3 more bales per hour, it increased by more than 20%.
- System Pressure for FDY-850: 120T
- Electroplate of oil cylinder: 6 procedure (Others just 3-4)
- Filament Winder: Cut off by twining 8 circles
- Oil painting: 2 layer( one for undercoat, another one for waterproof paint)
- Thickness for belt: 5 cm
- Two motors type can be customized
- Drawing can be provided on request, make sure our solution is suitable for your case.
