DHC400 Automatic Discharge Starch Concentration Nozzle Disc Centrifuge Separator Machine
Technical Prameters and Selection Model Form:
| Model Item | DHC400 | DHC500 | |
| Bowl | Diameter(mm) | 400 | 500 |
| Rotate speed(r/min) | 6700 | 5900 | |
| Separation factor | 9700 | 10300 | |
| Throughput(m³/h) | 5 | 10 | |
| Motor power(kw) | 11 | 18.5 | |
| Size(L×W×H)(mm) | 1500×900×1500 | 1805×1400×1720 | |
| Weight(kg) | 1000 | 1500 |
Main Features:
DHC400 Continuous Flow Disc Stack Centrifuge ,It can realize liquid-liquid-solid separation. it can be operated manually or automatically or remotely. This machine is widely used for many industries, such as dairy, beverage, pharmacy, chemials, petrol, metallurgy and biology, etc.
Application:
DHC400 Continuous Flow Disc Stack Centrifuge is widely used for many industries, such as dairy, beverage, pharmacy, chemials, petrol, metallurgy and biology, etc.
Structure and principle:
The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged, controlled by the sliding bowl, out of the sediment outlet.

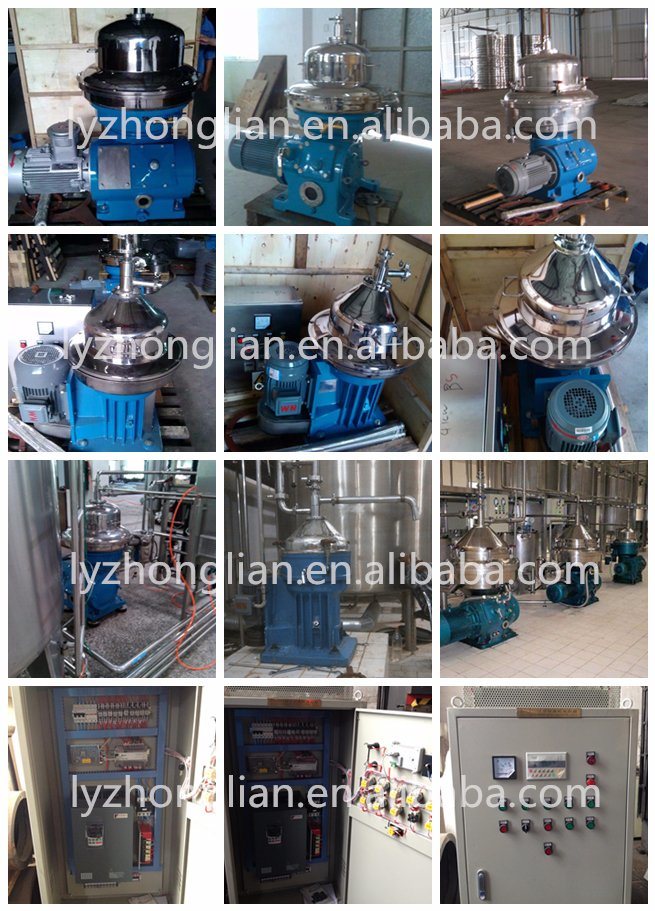

Pictures:
Company Information:
Liaoyang Zhonglian Pharmaceutical Machinery Co., Ltd is situated in Liaoyang City of Liaoning
Province, earliest engaged in the production of pharmaceutical machinery in China.Zhonglian is specially engaged in the production of pharmaceutical machinery, centrifugal equipment and packaging machine,owns
many years of experience in professional production, enjoys advanced technology and high quality equipment,
developed and manufactured multiple pharmaceutical machine, multiple packaging machine and multiple hi-tech
centrifugal equipment, including centrifugal separator machine, mixing machine, dryer machine, coating machine, powder packaging machine, granular packaging machine, blister packaging machine. disc centrifuge, tubular centrifuge, tripod series centrifuge and flat plate centrifuge, which are widely applied in pharmaceutical, chemical, food, smelting and other industries. Our company is supported and well received by a wide range of users with reliable quality and excellent after-sales service.
What's up: +86 15140990256
