Turbine Oil Purifier, Engine Oil Centrifugal Water Separator

PRIMARY PARAMETERS

Model NO.

Cleaness

<Nas 6 Grade

Water Content(Ppm)

<100

Gas Content(%)

<0.1

Trademark

NAKIN

Transport Package

Wooden Case

Specification

CE/ISO9001

Origin

Chongqing, China(Mainland)

HS Code

8421

DETAIL DESCRIPTION

Unqualified Oil Recycling Machine,Turbine Oil Purifier With Demulsification

Application:
Turbine oil is widely applied in industries, TY vacuum turbine oil purifier is mainly used for purifying unqualified turbine oil, especially for serious emulsion turbine oil, it can quickly and efficiently demulsify, separate water, gas, particles from oil, make sure quality of treated oil to achieve new oil's standard, ensure whole turbine system work safely. This equipment use the special polymer materials as filter medium combined with vacuum separating technology to break emulsification, dewater, degas, remove acid and particles, make the badly turbid turbine oil becomes clear transparent. Series TY is a perfect turbine oil purifier for live line work; also it can purify low viscosity hydraulic oil and lube oil.

Features:

1.Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles;

2.Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

3.Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technology.

4.Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

5.Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.

6.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

7. Work online with stream turbine, hydraulic turbine.

Technical Parameters:

Index Name	Unit	TY-10	TY-20	TY-30	TY-50	TY-100	TY-150	TY-200	TY-300
Flow rate	L/H	600	1200	1800	3000	6000	9000	12000	18000
Working vacuum	MPa	-0.06~-0.095
Working pressure	MPa	≤ 0.4
Temperature range	C	20 ~80
Demulsifying value	min	≤ 15/min(GB/F7035)
Water content	ppm	≤ 80
Gas content	%	≤ 0.1
Cleanness		≤ NAS 6 grade
Power supply		380V 50HZ 3Ph (As per user's option)
Working noise	dB(A)	≤65~80
Heating power	Kw	24	24	24	30	45	60	72	84
Total power	Kw	27	27	27	33	48	66	81	97
Inlet(Outlet)	mm	Φ25	Φ25	Φ25	Φ32	Φ42	Φ50	Φ50	Φ60
Weight	kg	400	450	500	600	800	1000	1100	1550

Production Flow:
Turbine Oil Purifier, Engine Oil Centrifugal Water Separator

Company Information:
Nakin Electromechanical Co., Ltd is leading machinery manufacture, our products are mainly transformer oil purifier, turbine oil purifier, lube oil filtration, engine oil regeneration machine in high quality and competitive price. We has the strong technology and experience in the vacuum oil purifier developing, our machine have been exported to many countries, and service in many industries.

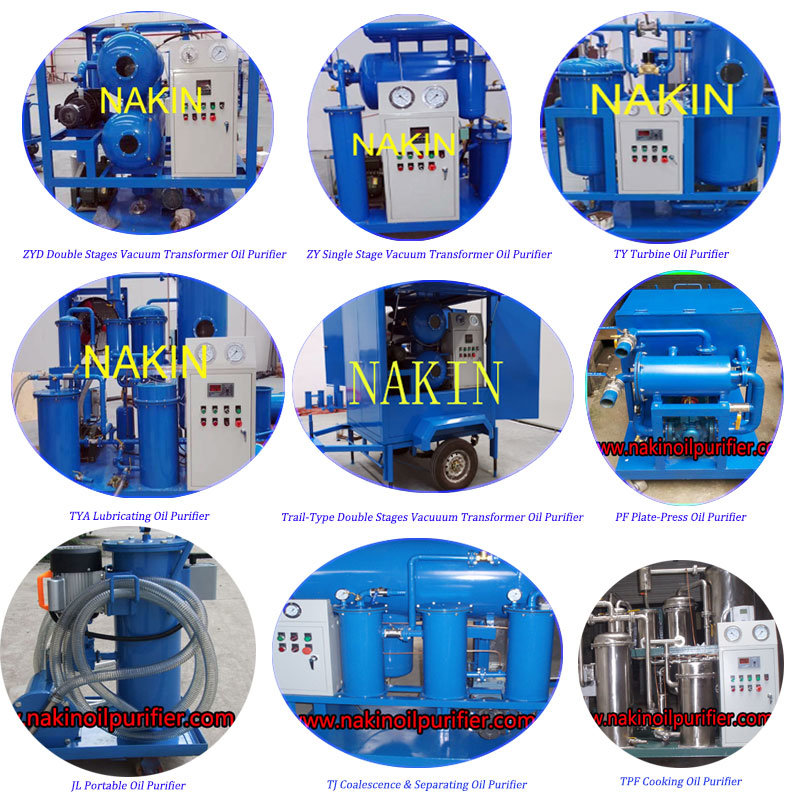

Our products list as following:
Turbine Oil Purifier, Engine Oil Centrifugal Water Separator

High effective vacuum transformer oil purifier, oil filtration
Double stages insulating oil purifier,oil treatment,oil purification
Mobile/trailer type transformer oil treatment,oil filtration mnachine
Air dryer for dring electric equipments
Turbine oil purifier,oil treatment
Coalescence and separating oil filter,oil purifier machine
Lubricating oil purifier/hydraulic oil purification
Phosphate ester fire-resistant oil purifier, oil filtration machine
Engine oil regeneration system, waste oil recycling
Transformer oil regeneration device,oil pruifier
Plate pressure oil filter, oil purifier machine
Portable oil piurifier,oil filtering,oil filter
BDV oil tester,insulating oil dielectric strength tester
Oil moisture sensor,water content tester

Certificates:

Workshop & Warehouse:

Company Information:
Chongqing Nakin oil purifier Manufacture Co., Ltd is leading machinery manufacture, our products are mainly transformer oil purifier, turbine oil purifier, lube oil filtration, engine oil regeneration machine in high quality and competitive price. We has the strong technology and experience in the vacuum oil purifier developing, our machine have been exported to many countries, and service in many industries.

We will always adhere to the business philosophy of "Responsible for product, Responsible for user, Responsible for self ", Keep the faith to create the national brand, keep innovation, keep improving and Keep making the high quality products with first-class after-service for getting the customer's trust and love. Really building a new era in Brand-NAKIN with our customers.

Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience

Packing and delivery way:
Wooden case Suitable for sea transportation and air transportation
