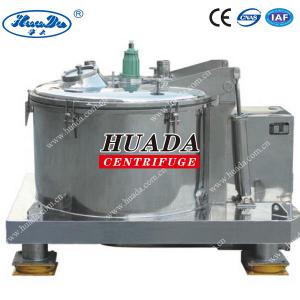

PSB Platform Base Top Discharge Centrifuges
_________________________________________________________________________________Manual Top Discharge Centrifuge in Production Video:
_________________________________________________________________________________
Product Description
Manual Top Discharge Centrifuge in Production Video:
http://www.huada-video.com/PSD-Series
Once the materials to be separated enter the fast-spinning basket, it will be filtrated by the filter liner under the centrifugal force. The liquid flows out through the liquid outlet, but solids deposit on the internal wall of the basket. Once the solid cake reaches the rate capacity, feeding stops. Wash the solids cake, and then drain out the washing water. Finally stop the machine. The solid cake is discharged manually and move to next batch.
Main features
Well-designed structure and polished surface leaves no residual heel. With big hinged cover, it is easy to clean the gap between the case and the basket. |
Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform. |
Big hinged cover, feeding pipe, washing pipe, observation glass and light. |
Automatic CIP system cleans the internal surface of the case, the basket and liquid slot to meet the clean requirement in accordance with GMP standards. |
Wide range of applications. No damage to the particle shape. |
Inverter start-up, smooth starting, adjustable relative centrifugal force. |
Tightness structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system (optional) is for anti-explosion applied to poisonous, flammable and explosive environment. |
Model PBZ centrifuge has applied direct shaft connected motor, which eliminates frictional dust from belt drive. In the meantime, the motor is installed at the bottom of the machine, which requires minimum installation space. |
Parameters
Items | Models | |||||
PSB600 | PSB800 | PSB1000 | PSB1200 | PSB1250 | PSB1500 | |
Basket Dia (mm) | 600 | 800 | 1000 | 1200 | 1250 | 1500 |
Basket Volume (L) | 45 | 120 | 200 | 330 | 400 | 600 |
Max. Load (kg) | 60 | 150 | 250 | 410 | 500 | 800 |
Max. Rotating speed (r/min) | 1500 | 1200/1500 | 1100/1200 | 1100/1200 | 1000/1200 | 850 |
Centrifuge Force | 755 | 645/1006 | 680/806 | 670/968 | 700/1008 | 607 |
Motor (kW) | 3 | 7.5 | 11 | 18.5 | 18.5/22 | 30 |
Dimension (L*W*H) (mm) | 1300*1050*1150 | 1720*1200*1300 | 2000*1400*1500 | 2550*1800*1780 | 2550*1800*1780 | 2600*2300*1800 |
Weight (kg) | 1100 | 1500 | 2500 | 3800 | 4000 | 6000 |
Production site
China
