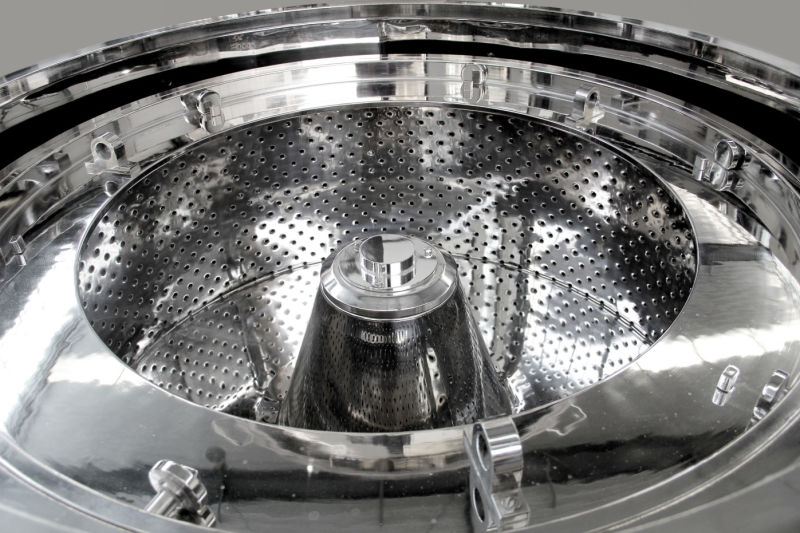

PDTop Discharge Centrifuges with Filter Bag
MAIN FEATURES
Frequency converter starting, stable starting, adjustable separation factor.
Hanging bag discharge, low labor intensity, high work efficiency
The reasonable structure design effectively eliminates dead corner of sanitation. The structural parts adopt smooth transition and the surfaces are subjected to polishing treatment. The external structural parts, fasteners and bowl are all made of stainless steel. The housing adopts flap type cover, so that the space between the housing and bowl can be cleaned thoroughly.
It is equipped with the spray cleaning system to carry out CIP cleaning of the centrifuge, including cleaning of inner walls of the housing, interior and exterior surfaces of the bowl, surfaces of the liquid collector and other invisible parts inside the centrifuge. It complies with the requirements in the GMP standard.
Simples structure, convenient operation.
The grains are not easy to break.
It is equipped with the nitrogen protection system to ensure air isolation between the inside cavity and the outside of the centrifuge.
Good versatility and wide application range.
Closed structure. The seal is made of silicone rubber or fluorine rubber to meet the requirements of sealing and anti-explosion. It is suitable for poisonous, inflammable and explosive applications.
1. Shock absorber
2. Frame
3. Shell
4. Bowl part
5. Bearing pedestal
6. Cover
7. Oblique sight glass
8. Explosion-proof light
9. Washing pipe
10. Feeding pipeline
11. Flap turning device
12. Motor
13. Liquid discharging pipe
1. Shock absorber
2. Fram
3. Shell
4. Bowl part
5.Direct-connected motor
6. Cover
7. Oblique sight glass
8. Explosion-proof light
9. Washing pipe
10. Feeding pipeline
11. Flap turning device
12. Liquid discharging pipe

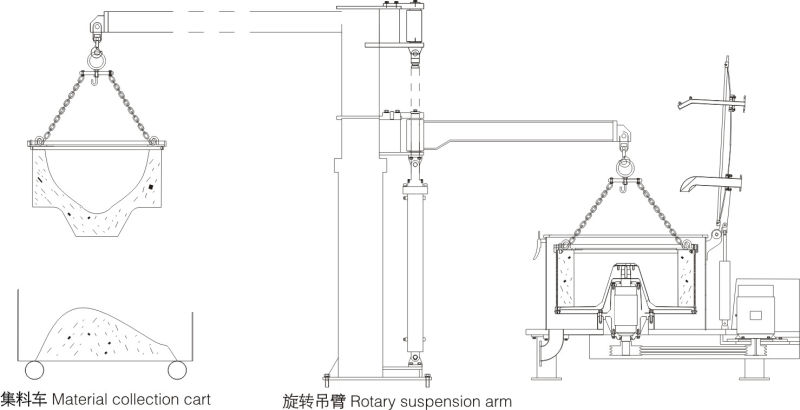

HANGING BAG DISCHARGING SCHEMATIC DIAGRAM
