PSLQ/PSFQ FLAT PLATE FULL FLAP TURNING CENTRIFUGE
PRODUCT CHARACTERISTICS & USAGE

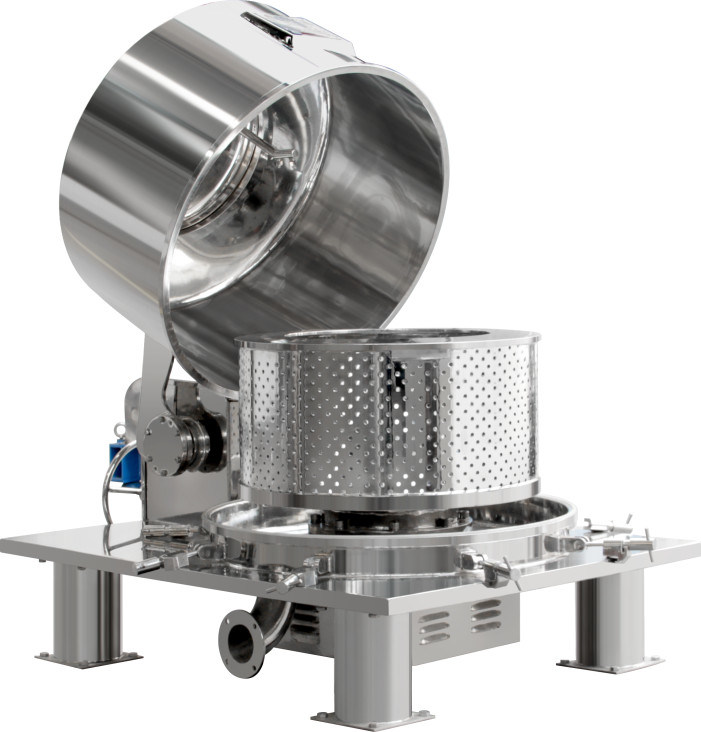

The PSLQ/PSFQ series centrifuge is a piece of flat plate type clean filtering equipment with intermittent operation. The materials enter the bowl from the feeding pipe on the closed housing. Under the action of centrifugal force, the liquids are discharged outside the machine after passing through the filter media. The solids are retained in the bowl and discharged from the top when the cover is opened after the machine stops. The cover can be turned totally at a turning angle higher than 90° through manual, hydraulic driving or pneumatic driving mode, so that all the parts of the bowl are exposed, making it convenient to carry out discharging, cleaning, filter bag replacement, etc. The whole machine is manufactured in accordance with the requirements in GMP and FDA. It is subject to polishing treatment without any dead corner. The PSFQ model centrifuge adopts motor direct driving and avoids dust that may be caused by triangular belts and mechanical braking. It is especially suitable for inflammable, explosive and poisonous applications.
STRUCTURE & PRINCIPLE
It is widely used for separation and dehydration of suspensions containing solids of middle or fine granularity such as food additives, chemical condiments, MSG, pesticides, antibiotics, pharmaceutical intermediates, vitamins, Chinese patent medicines, activated carbon, dye intermediates, pigments, etc. in pharmacy, light industry, food, chemical industry, etc.

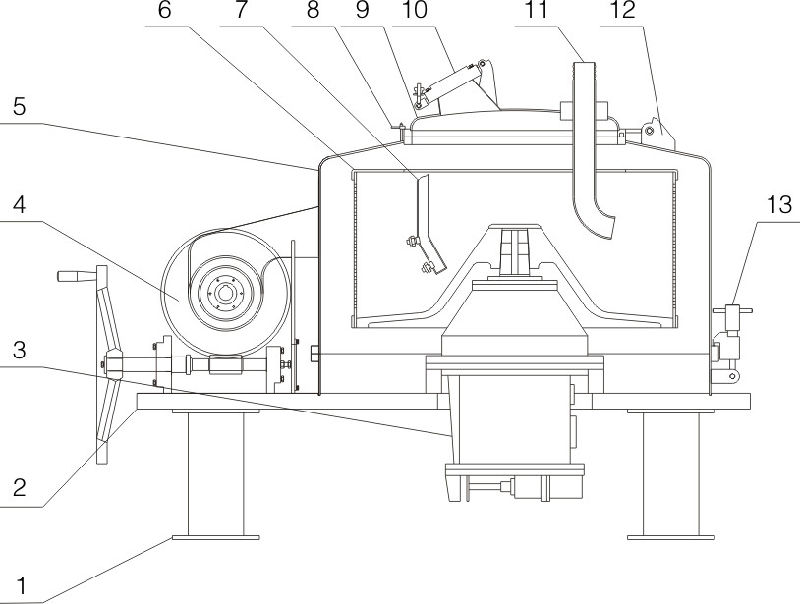

PSLQ/PSFQ STRUCTURAL DIAGRAM OF PSLQ/PSFQ MODEL FLAT PLATE DIRECT-CONNECTED TOP DISCHARGE CENTRIFUGE
1. Damping shock absorber
2. Flat panel base
3. Manual housing turning device
4. Shell
5. Bowl part
6.Small flap locking device
7. Small flap
8. Oblique sight glass
9. Washing pipe
10. Feeding pipe
11. Small flap turning device
12. Housing locking device
13. Motor
14. Spray ball
15. Nitrogen-filled tube
16. Mother liquor outlet
17. Explosion-proof lamp
1. Damping shock absorber
2.Flat panel base
3. Direct-connected motor
4. Manual housing turning device
5. Shell
6. Bowl part
7. Washing pipe
8.Small flap locking device
9.Small flap
10. Oblique sight glass
11. Feeding pipe
12. Small flap turning device
13. Housing locking device
14. Nitrogen-filled tube
15. Mother liquor outlet

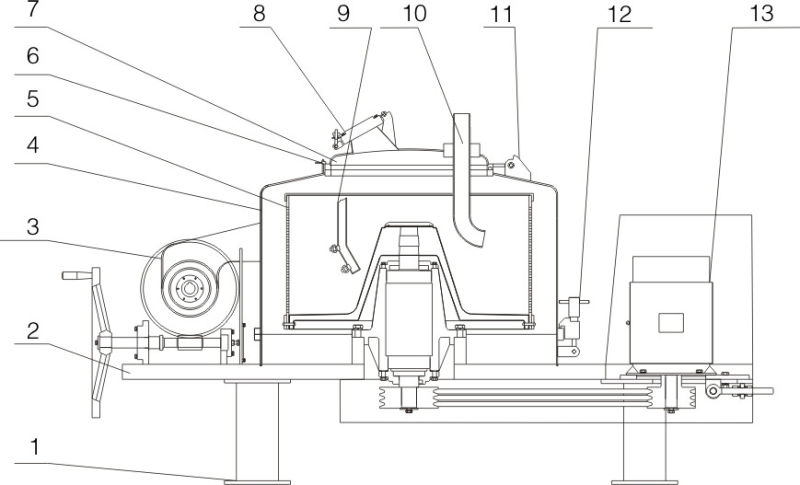

PSLQ/PSFQ TURNING WORK STRUCTURAL DIAGRAM OF PSLQ/PSFQ MODEL FLAT PLATE DIRECT-CONNECTED TOP DISCHARGE CENTRIFUGE
PRODUCT CHARACTERISTICS & USAGE
The PSLQ/PSFQ series centrifuge is a piece of flat plate type clean filtering equipment with intermittent operation. The materials enter the bowl from the feeding pipe on the closed housing. Under the action of centrifugal force, the liquids are discharged outside the machine after passing through the filter media. The solids are retained in the bowl and discharged from the top when the cover is opened after the machine stops. The cover can be turned totally at a turning angle higher than 90° through manual, hydraulic driving or pneumatic driving mode, so that all the parts of the bowl are exposed, making it convenient to carry out discharging, cleaning, filter bag replacement, etc. The whole machine is manufactured in accordance with the requirements in GMP and FDA. It is subject to polishing treatment without any dead corner. The PSFQ model centrifuge adopts motor direct driving and avoids dust that may be caused by triangular belts and mechanical braking. It is especially suitable for inflammable, explosive and poisonous applications.
STRUCTURE & PRINCIPLE
It is widely used for separation and dehydration of suspensions containing solids of middle or fine granularity such as food additives, chemical condiments, MSG, pesticides, antibiotics, pharmaceutical intermediates, vitamins, Chinese patent medicines, activated carbon, dye intermediates, pigments, etc. in pharmacy, light industry, food, chemical industry, etc.
PSLQ/PSFQ STRUCTURAL DIAGRAM OF PSLQ/PSFQ MODEL FLAT PLATE DIRECT-CONNECTED TOP DISCHARGE CENTRIFUGE
1. Damping shock absorber
2. Flat panel base
3. Manual housing turning device
4. Shell
5. Bowl part
6.Small flap locking device
7. Small flap
8. Oblique sight glass
9. Washing pipe
10. Feeding pipe
11. Small flap turning device
12. Housing locking device
13. Motor
14. Spray ball
15. Nitrogen-filled tube
16. Mother liquor outlet
17. Explosion-proof lamp
1. Damping shock absorber
2.Flat panel base
3. Direct-connected motor
4. Manual housing turning device
5. Shell
6. Bowl part
7. Washing pipe
8.Small flap locking device
9.Small flap
10. Oblique sight glass
11. Feeding pipe
12. Small flap turning device
13. Housing locking device
14. Nitrogen-filled tube
15. Mother liquor outlet
PSLQ/PSFQ TURNING WORK STRUCTURAL DIAGRAM OF PSLQ/PSFQ MODEL FLAT PLATE DIRECT-CONNECTED TOP DISCHARGE CENTRIFUGE
