Paut Bottom Discharge Scraper Minerals Processing Centrifuges

PAUT Scraper Bottom Discharge Centrifuge Machine with Top Mounted MotorBottom Discharge Scraper Centrifuge with top mounted motor

Technical Feature

  • 1 Set
  • Shanghai, China
  • 100 Sets/Month
  • L/C, T/T, Western Union
  • Centrifuge
  • Solid-Liquid Slurry
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
PAUT
Pressure
Low Pressure
Condition
New
Control
PLC Control
Technical Service and Training
Offer by Seller
Operation
Automatic Batch Operation Centrifuge Machine
Model
Paut
Centrifugal Type
Screen Centrifuge
Guarantee
12 Months
Discharge
Scraper Bootom Discharge Centrifuge
Usage
Industrial Centrifuge
Product Type
Chemical Centrifuge
Trademark
Huada
Transport Package
Standard with Wooden Pallet and Poly Film Wrapping
Specification
CE
Origin
China
HS Code
8421199090

DETAIL DESCRIPTION

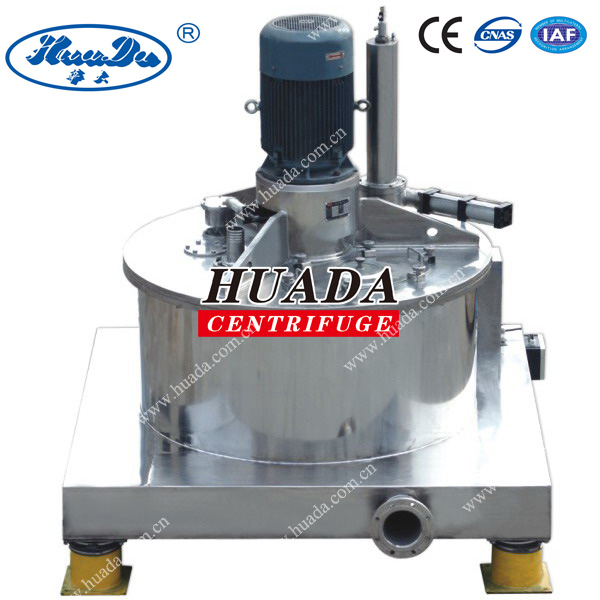

PAUT Scraper Bottom Discharge Centrifuge Machine with Top Mounted Motor
Bottom Discharge Scraper
Centrifuge with top mounted motor

Product Description

Automatic Bottom Discharge Centrifuge in Operation Video:

http://www.huada-video.com/pld-bag-pulling-bottom-discharge-scraper


Paut Bottom Discharge Scraper Minerals Processing Centrifuges



Main features
Upper type direct driving for motor; rotating center for drive and drum coincide with machine center, with smooth and stable operation.
Liquid damping vibration absorber: No foundation for installation facilitates operation and maintenance.
Large length-diameter ratio, big loading capacity.
Rigidly joint between base and case, offering simple and compact construction.

Independent bearing seat, large bearing support span, low basket gravity center, larger carrying capacity.
Driving without belt, ensures no friction dust.
Fully-automatic operation program control, ensuring reliable and safe operation.
Nitrogen protection system is available for explosion-proof application.

Configurations
Paut Bottom Discharge Scraper Minerals Processing Centrifuges


Optional configurations

Feed type: Side feed through single or multiple nozzles
Scraper discharge: hydraulic
Motor drive: Motor driving General motor, explosion-proof motor, frequency conversion motor
Safety protection: Nitrogen protection (anti-explosion) system, vibration protection, mechanical and electrical interlocking protection, overload protection, material level detection
Surface treatment: Mirror finishing, matt finishing, and dulling
Outlet hopper: Diameter and height can be configured according to the requirements of customers
Residual solid cake treatment: Roller-aided scraper, Air counter-blowing, Air blow device on scraper
Program control: Programmable control
Nitrogen protection system: Automatic nitrogen supply device, oxygen detection device, hydraulic sealing device and gas-liquid separator
Coating treatment: HALAR lined and PE lined

Parameters
Items
Models
PAUT1250A
PAUT1250B
PAUT1320
PAUT1500
PAUT1600
Basket Dia (mm)
1250
1250
1320
1500
1600
Basket Volume (L)
281
450
490
653
970
Max. Load (kg)
380
610
660
880
1300
Max. Rotating speed (r/min)
970
970
900
850
850
Centrifuge Force
658
658
598
607
647
Motor (kW)
22
30
30
37
45
Dimension (L*W*H) (mm)
2100*2000*2235
2100*2000*2600
2100*2000*2600
2600*2350*2700
2700*2350*2900
Weight (kg)
4500
5000
5500
8500
10000

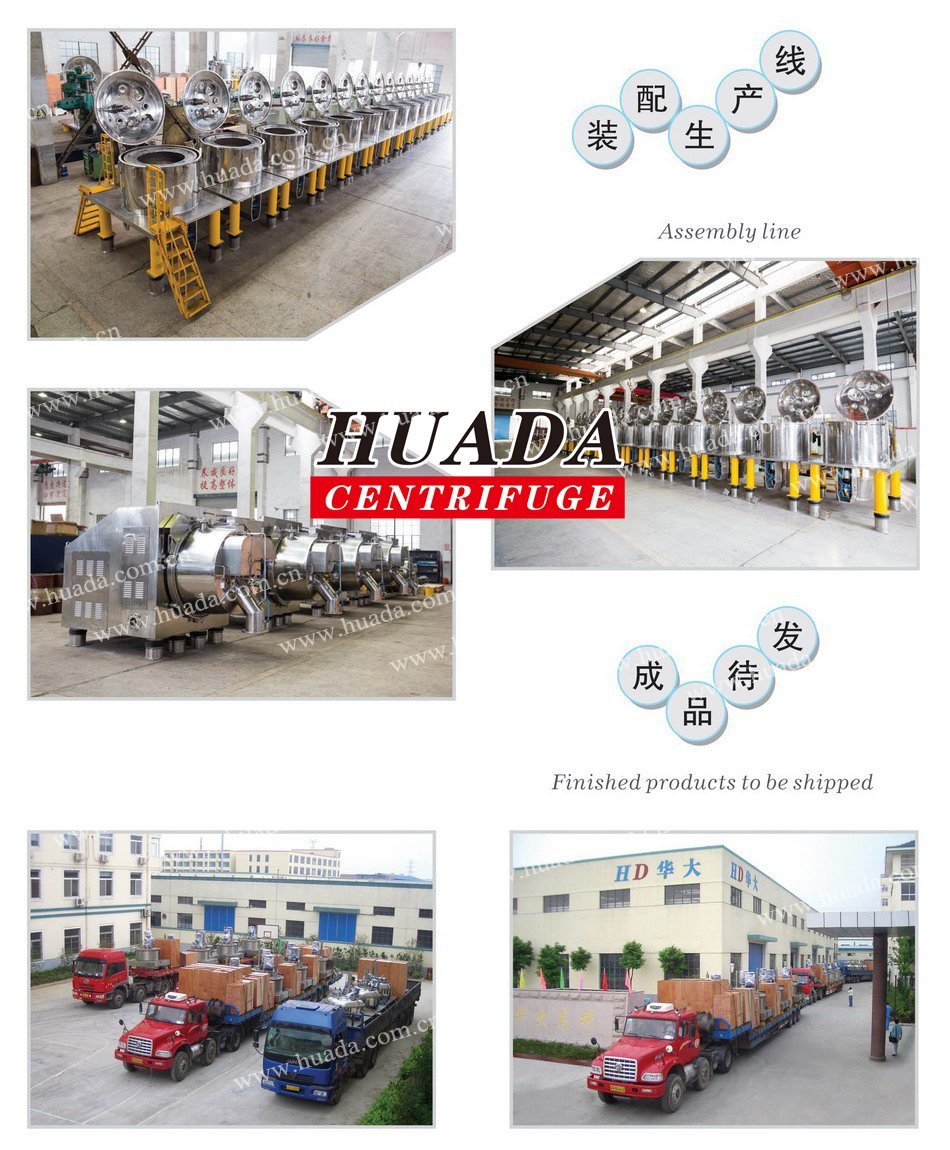

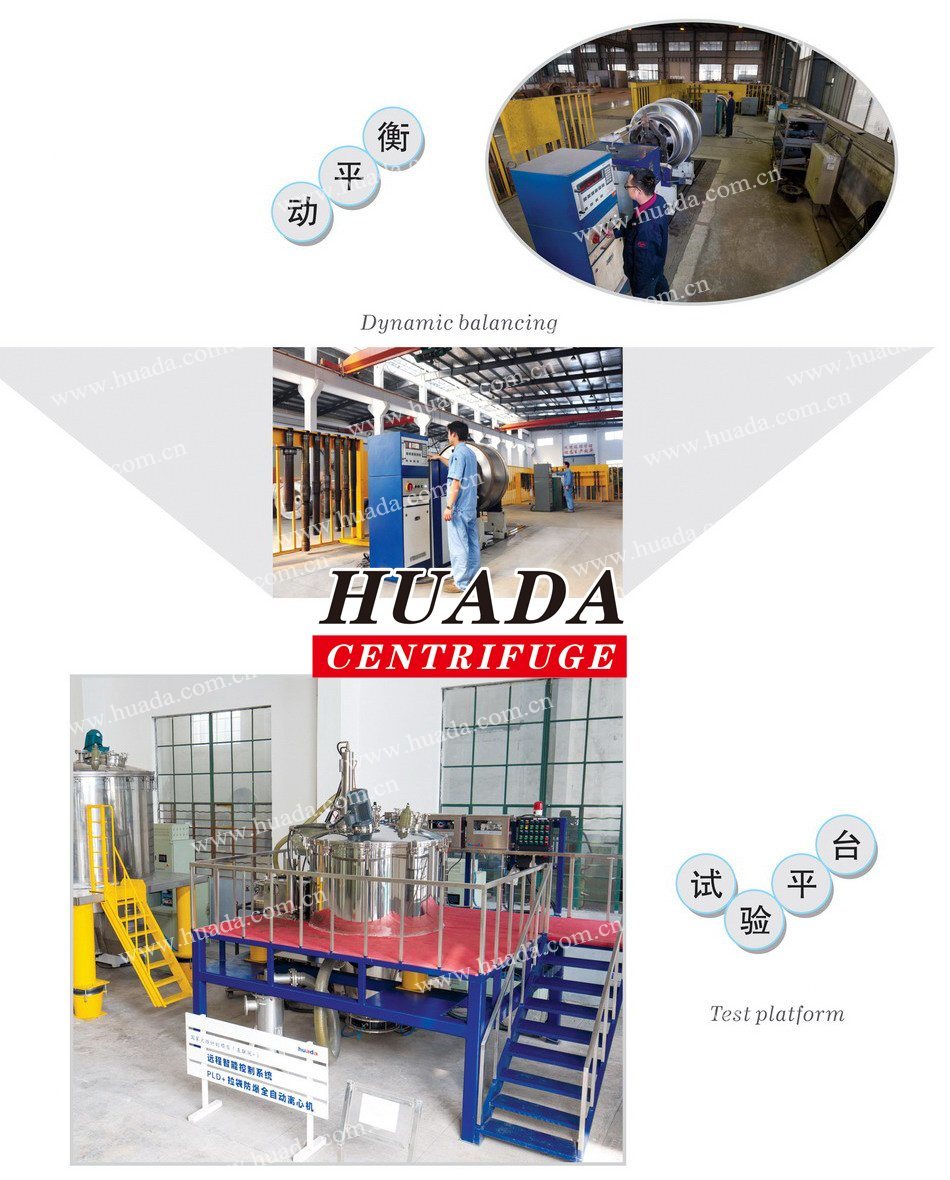

Production site
Paut Bottom Discharge Scraper Minerals Processing Centrifuges

Paut Bottom Discharge Scraper Minerals Processing Centrifuges
Paut Bottom Discharge Scraper Minerals Processing Centrifuges
Paut Bottom Discharge Scraper Minerals Processing Centrifuges
