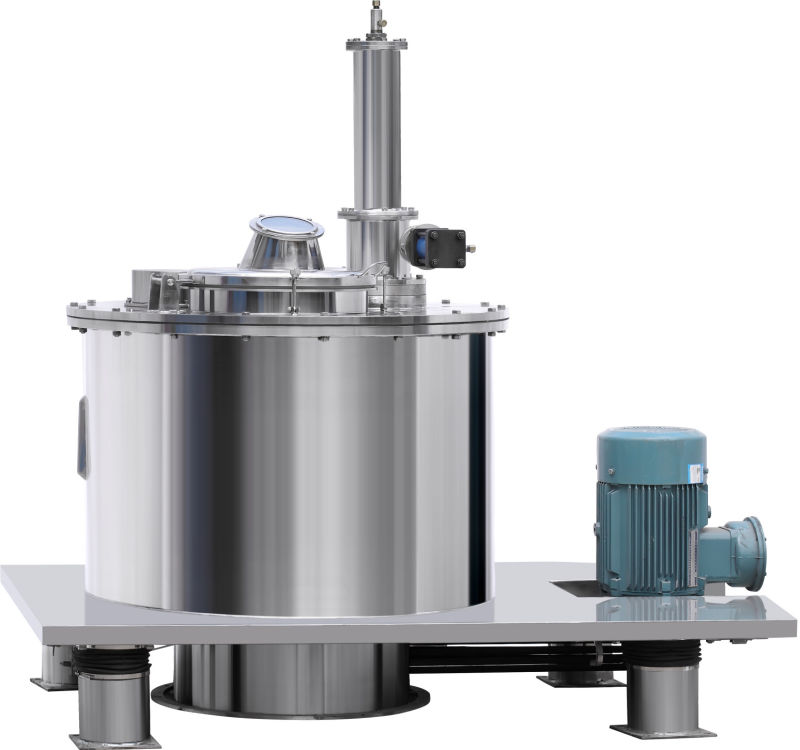

PGZ FLAT PLATE SCRAPER BOTTOM DISCHARGE AUTOMATIC CENTRIFUGE
MAIN FEATURES
It adopts PLC control, program setting, unattended automatic operation, and whole-course monitoring of feeding, primary filtering, washing, fine filtering and discharging.
Variable frequency speed control, stable starting, adjustable separation factor.
Dynamic braking, non-contact braking mode, without friction and dust pollution.
Fully closed structure. The seal is made of silicone rubber or fluorine rubber. The centrifuge cavity is provided with nitrogen protection to meet the requirements of sealing and anti-explosion.
Reasonable structure design. The CIP cleaning system (spraying system) ensures the requirements for cleanliness and conforms to the GMP standard.
The automatic actuating elements adopt the pneumatic system, which is clean and sanitary.
Electromechanical material layer control..
The optional gas-assisted scraper ensures there is no residual cake in the bowl after discharge.
Foundation-free installation, simple structure, beautiful appearance, convenient cleaning.
Vibration damping and isolation system with scientific and reasonable design. The balancing block and imported high-precision liquid damping agent type vibration isolator is adopted. The equipment vibration is totally absorbed by the vibration isolation system without vibration interference to foundation grounds and surroundings.
The equipment foundation balance plate can serve as an operation platform with more convenient operation and maintenance.
Safety protection: rotation speed detection, over-vibration protection, uncapping protection, motor overload and overheat protection, scraper turning and lifting machinery electric dual-control, linked locking of scraper and bowl.
STANDARD MANUFACTURING FORM
Structure: The housing is equipped with the feeding pipe, washing pipe, sight glass, exhaust port, and lighting hole. The closed structure, bowl, housing and cover are made of stainless steel SUS304. The machine base is made of castings. The surface is coated with stainless steel. The interior and exterior surfaces of bowl and housing, and the surface of exposed parts in the machine are all subjected to polishing treatment.
All fasteners are made of stainless steel.
PLC control is adopted.
Electromechanical material process control.
Driving and braking: ordinary motor (or explosion-proof motor) + frequency converter + dynamic braking.
Pneumatic system or hydraulic system.
Foundation-free type (balancing block + imported high-precision liquid damping agent type vibration isolator).

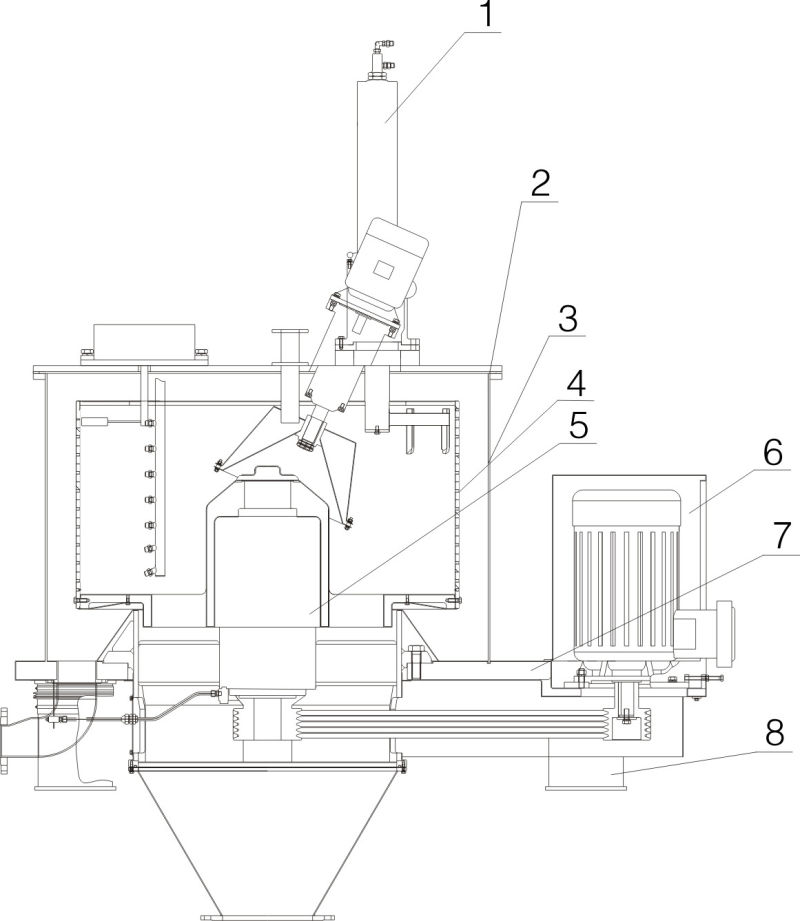

1. Scraper cylinder
2. Cover
3. Shell
4. Drum
5. Bearing pedestal
6. Motor
7. Frame
8. Shock absorber
9. Feeding pipeline
10. Manhole
11. washing pipe
12. Nitrogen pipe
13. Level detector
14. Water outlet pipe
MAIN TECHNICAL PARAMETERS
All right is reserved for amendment with improvement of technology
