GK(F) AUTOMATIC HORIZONTAL SCRAPER CENTRIFUGE
PRODUCT FEATURES AND USES

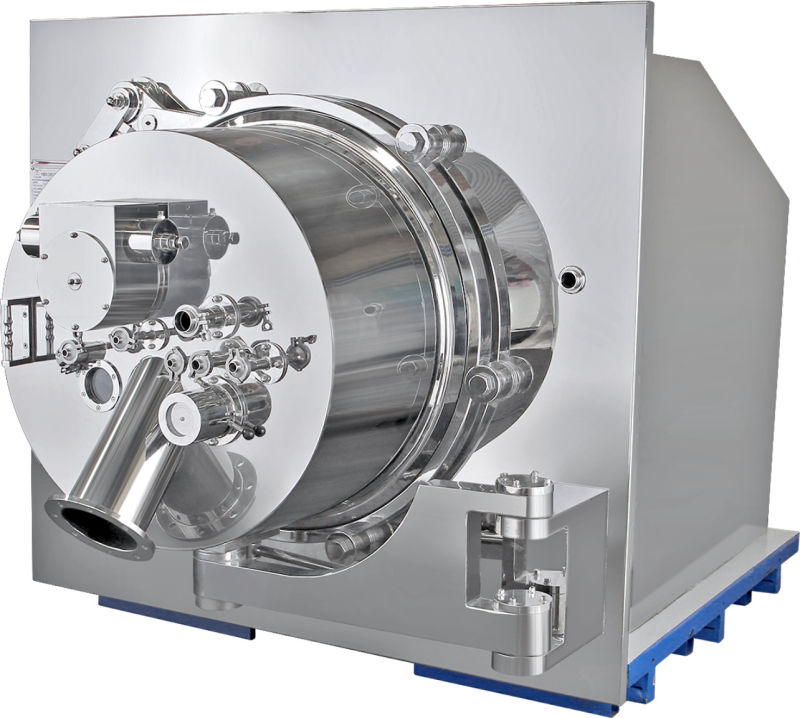

The machine is a horizontal filtering centrifuge with automatic cycle and scraper discharge. Screen washing, feeding, separating, washing, dehydrating and discharging can be carried out when the machine is making full-speed running. Automatic control or semi-automatic control can be realized in all procedures. It is featured by novel design, stable running, accurate action, convenient operation and simple maintenance. The parts that contact the materials are all made of stainless steel. It is suitable for solid-liquid separation of suspensions that contain fine solid particles, and is especially suitable for solid crystal grains that do not have high requirements for the shape of edges, such as polyvinyl chloride, caustic soda, anthracene, starch and other materials in chemical industry, plastics, fertilizers, food and other industries.

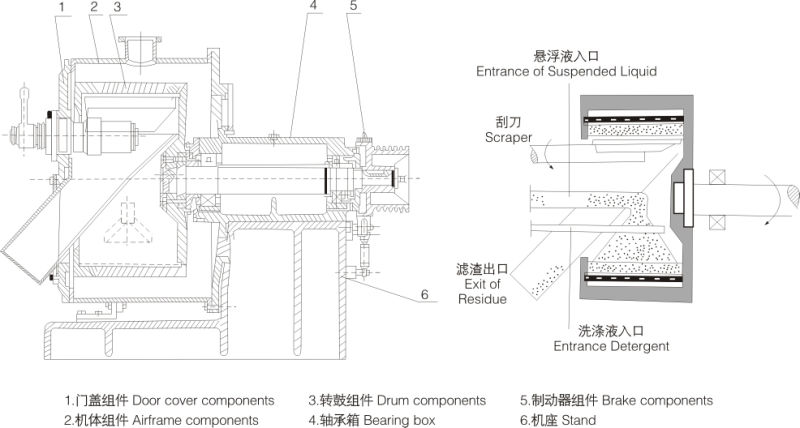

1. Door cover components
2.Airframe components
3.Drum components
4. Bearing box
5. Brake components
6. Stand
ORDER NEED TO KNOW

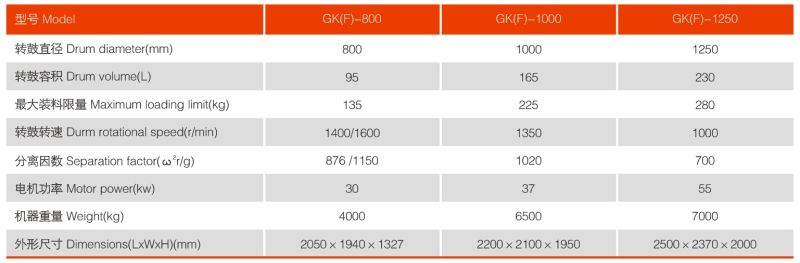

Technical parameters on product specification shall prevail.
Inquire, please give customer detailed against material characteristic parameters and working condition requirements.
According to customers' special needs, we can take personalized design and manufacturing.
Material: material contact part of the material can be for ordinary stainless steel, special stainless steel, aluminum alloy and titanium alloy, etc.
Peel ways: can use oil cylinder, cylinder, electric cylinder or mechanical balance device, etc.
Can be designed by GMP, manufacturing.
Other technical requirements can be agreed.
PRODUCT FEATURES AND USES
The machine is a horizontal filtering centrifuge with automatic cycle and scraper discharge. Screen washing, feeding, separating, washing, dehydrating and discharging can be carried out when the machine is making full-speed running. Automatic control or semi-automatic control can be realized in all procedures. It is featured by novel design, stable running, accurate action, convenient operation and simple maintenance. The parts that contact the materials are all made of stainless steel. It is suitable for solid-liquid separation of suspensions that contain fine solid particles, and is especially suitable for solid crystal grains that do not have high requirements for the shape of edges, such as polyvinyl chloride, caustic soda, anthracene, starch and other materials in chemical industry, plastics, fertilizers, food and other industries.
1. Door cover components
2.Airframe components
3.Drum components
4. Bearing box
5. Brake components
6. Stand
ORDER NEED TO KNOW
Technical parameters on product specification shall prevail.
Inquire, please give customer detailed against material characteristic parameters and working condition requirements.
According to customers' special needs, we can take personalized design and manufacturing.
Material: material contact part of the material can be for ordinary stainless steel, special stainless steel, aluminum alloy and titanium alloy, etc.
Peel ways: can use oil cylinder, cylinder, electric cylinder or mechanical balance device, etc.
Can be designed by GMP, manufacturing.
Other technical requirements can be agreed.
