Application and Features:
Type BL. BM,.BH slurry pumps are cantilevered, horizontal, centrifugal slurry pumps.They are designed for the handling highly abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc.The pumps of this type also may be installed in multistage series.
The frame plates for the typeBL, BM, BH pumps have replaceable wear-resistant metal liners or rubber liners.The impellers are made of wear-resistant metal or rubber.
The shaft seals for type BM, BH, pumps may be adoptable of gland seal or expeller seal.The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
Brief Introcustion to Pump Type Selection:
Refering to the performance curves of the pump the selected capacity range should be as follows:
Pump Type BM, BH: 40-80% for higher density, strong abrasive slurries
40-80% for medium density, medium abrasive slurries
40-120% for lower density, lower abrasive slurries
The pump type BL should be selected by reference to its performance curves and the selection of capacity range is between 40%~100%.(The corresponding capacity against the max.efficiency point at one speed is 100%.)

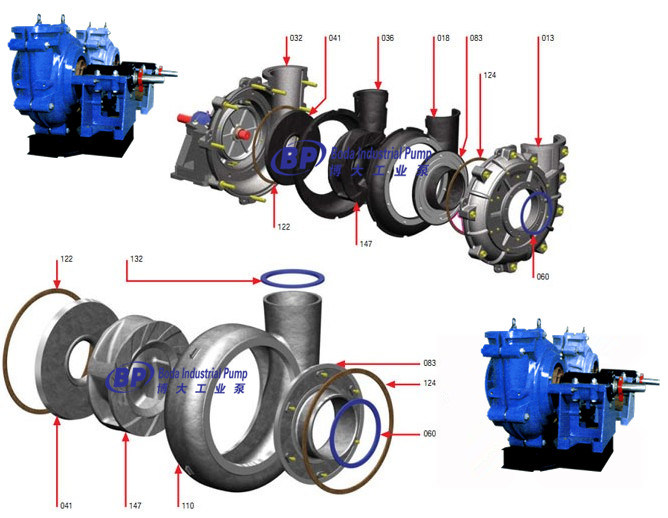

Structure Drawing:
| Type BM BH | Allowable Mating Max.Power (kw) | Clear Water Performance | Impeller | ||||||
| Capacity Q | Head H (m) | Speed n (r/min) | Max EFF η(%) | NPSH) (m) | No of Vanes | Impel Dia(mm) | |||
| (m 3 /h) | (L/S) | ||||||||
| 1.5/1B-BH | 15 | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 |
| 2/1.5B-BH | 15 | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 184 |
| 3/2C-BH | 30 | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 214 |
| 4/3C-BH | 30 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 |
| 4/3D-BH | 60 | ||||||||
| 6/4D-BH | 60 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 5 | 365 |
| 6/4E-BH | 120 | ||||||||
| 6/4D-BH | 60 | 180-396 | 50-110 | 7-61 | 600-1600 | 55 | 3-8 | 4 | 372 |
| 6/4E-BH | 120 | ||||||||
| 8/6E-BH | 120 | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 |
| 8/6R-BH | 300 | ||||||||
| 8/6E-BH | 120 | 360-828 | 100-230 | 7-52 | 400-1000 | 70 | 2.5-6 | 4 | 536 |
| 8/6R-BH | 300 | 360-828 | 100-230 | 7-52 | 400-1000 | 70 | 2.5-6 | 4 | 536 |
| 10/8ST-BH | 560 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 5 | 686 |
| 12/10ST-BH | 560 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 5 | 762 |
| 14/12ST-BH | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 |
| 16/14ST-BH | 560 | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 5 | 1067 |
| 16/14TU-BH | 1200 | ||||||||
| 10/8E-BM | 120 | 540-1440 | 150-400 | 14-60 | 600-1100 | 73 | 4-10 | 5 | 549 |
| 10/8R-BM | 300 |
| Type BL | Allowable Mating Max. Power (Kw) | Clear Water Performance | Impeller | |||||
| Capacity/ Q m ³ /hr | Head/m | Speed /rpm | Max Efficiency /% | NPSH /m | Nos of Vane s | Impeller Diameter /mm | ||
| 20A-BL | 7.5 | 2.34-10.8 | 6--37 | 1400--3000 | 30 | 4 | 152.4 | |
| 50B-BL | 15 | 16.2--76 | 9--44 | 1400--2800 | 55 | 3.5--8 | 5 | 190 |
| 75C-BL | 30 | 18-151 | 4--45 | 900--2400 | 57 | 3--6 | 4 | 229 |
| 100D-BL | 60 | 50-252 | 7-46 | 800--1800 | 60 | 2--3.5 | 4 | 305 |
| 150E-BL | 120 | 115--486 | 12-51.5 | 800--1500 | 65 | 2--6 | 4 | 381 |
| 200E-BL | 120 | 234--910 | 9.5--40 | 600--1100 | 64 | 3-6 | 4 | 457 |
| 250E-BL | 120 | 396--1425 | 8--30 | 500--800 | 77 | 2--10 | 5 | 550 |
| 300S-BL | 560 | 468--2538 | 8--60 | 400--950 | 79 | 2-10 | 5 | 653 |
| 350S-BL | 560 | 650--2800 | 10--59 | 400--840 | 81 | 3--10 | 5 | 736 |
| 400ST-BL | 560 | 720--3312 | 7--51 | 300--700 | 80 | 2--10 | 5 | 825 |
| 450 ST-BL | 560 | 1008--4356 | 9--48 | 300--600 | 80 | 2--9 | 5 | 933 |
| 550 TU-BL | 1200 | 1980-7920 | 10-50 | 250-475 | 86 | 4-10 | 5 | 1213 |
