Overview

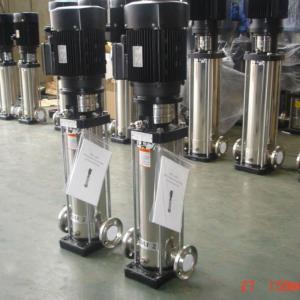

Non self-priming type vertical multistage centrifugal jockey pump, the motor is directly connected with the pump through shaft couplings, impeller guide vane is made of stamping stainless steel plate or precision casting stainless steel, smooth surface, hydraulic flow loss is small, and easily for cleaning, is very favorable for conveying pure medium. Pump inlet and outlet in a straight line(can be equipped with IEC or NEMA motor).
Operating Conditions
Thin, clean, non inflammable and explosive liquid not containing solids or fiber.
The liquid temperature: Normal temperature type - 15 º C to 70 º C hot water type to + 120 º C
Environmental temperature: Highest + 40 º C
Height: Highest 1000m
Motor
Motor is fully enclosed, air-cooled type 2 pole standard motors.
Protection grade: IP55
Insulation grade: F
Standard voltage: 1pH 220-230/240V
3pH 200-220/346-380V
3pH 220-240/380-415V
3pH 380-415V
Typical Application
Water supply: Water filtration and conveying, waterworks water supply, pipe pressurization, high-rise building pressurization.
Industrial pressurization: Process water system, cleaning system, high pressure flushing system, fire control system.
Industrial liquid transportation: Cooling and air conditioning system, the boiler feed water and condensation system, machine tool accessory, acid and alkali.
Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator.
Irrigation: Farm irrigation, sprinkler, drip.
Non self-priming type vertical multistage centrifugal jockey pump, the motor is directly connected with the pump through shaft couplings, impeller guide vane is made of stamping stainless steel plate or precision casting stainless steel, smooth surface, hydraulic flow loss is small, and easily for cleaning, is very favorable for conveying pure medium. Pump inlet and outlet in a straight line(can be equipped with IEC or NEMA motor).
Operating Conditions
Thin, clean, non inflammable and explosive liquid not containing solids or fiber.
The liquid temperature: Normal temperature type - 15 º C to 70 º C hot water type to + 120 º C
Environmental temperature: Highest + 40 º C
Height: Highest 1000m
Motor
Motor is fully enclosed, air-cooled type 2 pole standard motors.
Protection grade: IP55
Insulation grade: F
Standard voltage: 1pH 220-230/240V
3pH 200-220/346-380V
3pH 220-240/380-415V
3pH 380-415V
Typical Application
Water supply: Water filtration and conveying, waterworks water supply, pipe pressurization, high-rise building pressurization.
Industrial pressurization: Process water system, cleaning system, high pressure flushing system, fire control system.
Industrial liquid transportation: Cooling and air conditioning system, the boiler feed water and condensation system, machine tool accessory, acid and alkali.
Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator.
Irrigation: Farm irrigation, sprinkler, drip.
