Vane Pump for Oil Station with Fuel Dispenser B/D

Product Description                                             YH1000 Air-eliminator dispenser vane pump Air-eliminator dispenser vane pump is one of the devices that provide pressure oil for fuel oilin

Technical Feature

  • Ningbo, China
  • 60000 Sets/Year
  • L/C, T/T, Western Union, Paypal
  • Double-Acting
  • Vane Pump
  • Dosing Pumps
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
YH1000 B/D
Trademark
Galaxy/ Yinhe/OEM
Specification
345*270*380mm
Origin
Wenzhou City, China
HS Code
84249090

DETAIL DESCRIPTION

Product Description

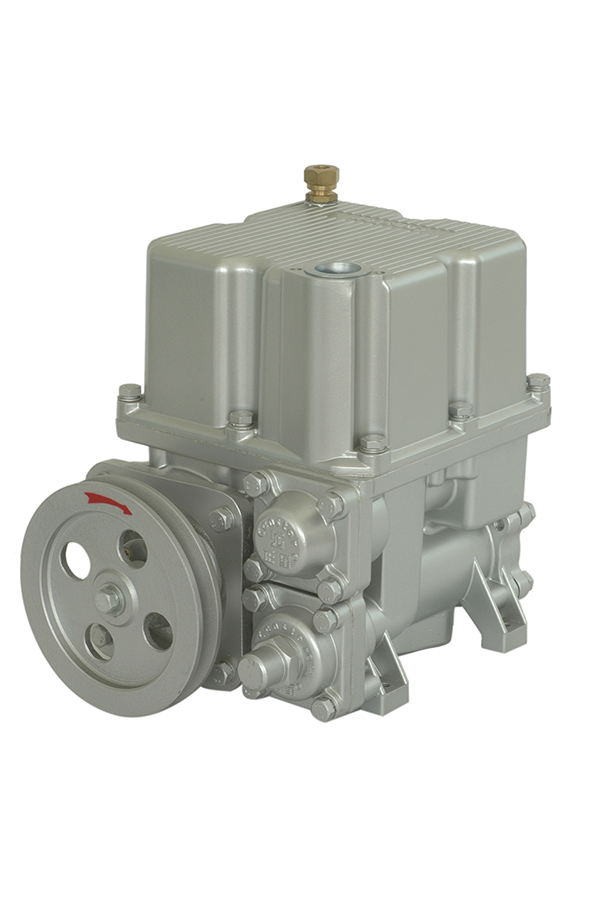

                                            YH1000 Air-eliminator dispenser vane pump
 Air-eliminator dispenser vane pump is one of the devices that provide pressure oil for fuel oiling machine, continually separate and eliminate the gas in tested gasoline, kerosene, diesel oil and other mixed liquid. It  is the combination of pressure regulating type single-acting vane pump and whirl type oil-gas separator.

Basic Parameters
Basic ParametersYH1000A,CYH1000B,D
Nominal flux  L/minWhen indicated valve of vacuum is 0.54Mpa5070
When indicated valve of vacuum is 0.04Mpa5580
When indicated valve of vacuum is 0.1Mpa6090
Vacuum degree of oil inlet Mpa0.0540.054
Pressure resistance Mpa0.50.5
Speed rpm520660
Noise dB(A)6872
Applicable motor power kw0.751.1
Capacity of oil-gas separation %Viscosity of oil is 1 mpas or less20%20%
10%10%
Working life L5×1065×106
Theoretic displacement L/r0.200.23


Features
l. Reasonable design and compact structure; body case is made of aluminum alloy sprayed with flash sliver lacquer, portable and beautiful.
2. Durable pump body of HT2003. Vane is made of hard graphite with advantages of self lubricated, good wear resistance and long using life.
4. Sealing materials is made of Chemigum and fluoroelastomer with advantages of oil resistance, cold resistance and reliable seal.
5. Excellent processing and low noise.
6. Oil-gas forced separation and strong capacity of oil-gas eparation.
7. High vacuum degree and suction lift.
8. Reasonable design of structure and large theoretic displacement.
9. Models A and C inlet: 1 1/2' ' . outlet: 3/4' ' ; Models B and D inlet: 2", outlet l' ' ; and many models for your option.
IO. Models A and B are directly flanged with flow meter while Models C and D are connected with flow meter via S pipe. It is of wide applicability.


Vane Pump for Oil Station with Fuel Dispenser B/D



Sample Shipping:

By express (UPS,DHL, FedEx, , etc.)

Sample's lead time: 2-5 days

Mass productions' lead time: 7-31 days

By sea shipping when bulk order




Vane Pump for Oil Station with Fuel Dispenser B/DVane Pump for Oil Station with Fuel Dispenser B/DVane Pump for Oil Station with Fuel Dispenser B/DVane Pump for Oil Station with Fuel Dispenser B/D

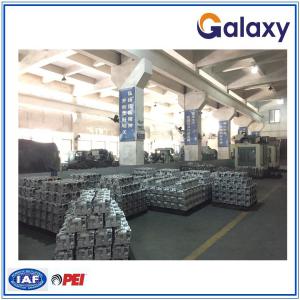

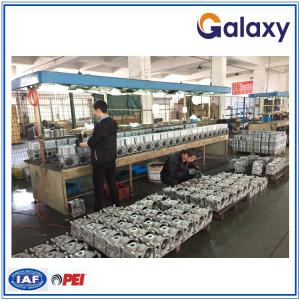

Company Profile
