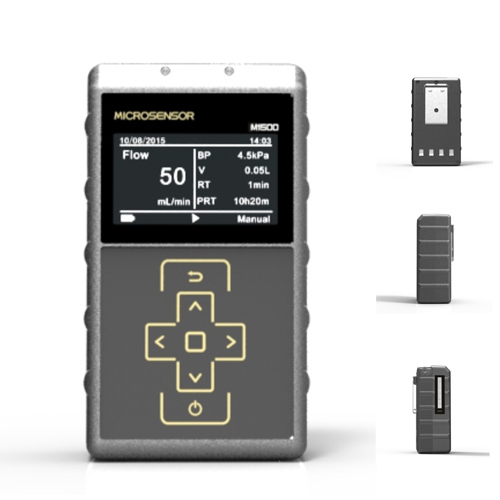

Explosion-Proof Smart Occupational Health Air Samping Pump M1500
Features
Flow range: 20mL/min~1500mL/min
Over 4kPa back pressure compensation at 1500mL/min flow point
Real-time temperature and pressure compensation
Sampling mode: manual, time-fixed and volume-fixed
Real-time resistance, electricity detection and system protection
Real-time detection for environmental temperature and atmosphere
Time and data recording function
Can charge or communicate with many sets of sampling pump by conjoined charging base simultaneously
Float flow display

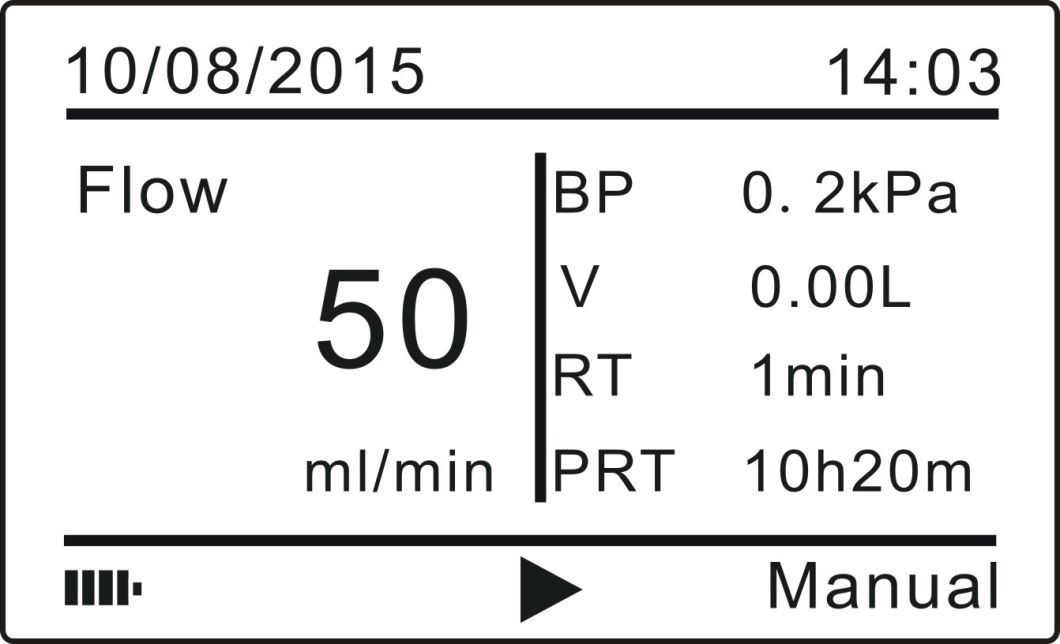

Digital OLED display with 180° visual range
Wear by buckle or install by tripod
Protection: IP54
Explosion proof: Ex ia IIC T4 Ga
Real-time temperature and pressure compensation
Sampling mode: manual, time-fixed and volume-fixed
Real-time resistance, electricity detection and system protection
Real-time detection for environmental temperature and atmosphere
Time and data recording function
Can charge or communicate with many sets of sampling pump by conjoined charging base simultaneously
Float flow display
Digital OLED display with 180° visual range
Wear by buckle or install by tripod
Protection: IP54
Explosion proof: Ex ia IIC T4 Ga
Introduction
M1500 Air Sampling Pump is a high stable individual air sampling system based on ARM core. It uses international advanced power system and relies on MEMS sensor technology to complete the layout of haptic system. With high degree of intelligence, it could realize high accurate and high stable sampling for air, dust and toxic or harmful gases according to the set flow.
The sampling pump is suitable for environmental workers from the enterprises like environmental monitoring station, epidemic prevention, engineering quality indoor test, R&D institution, mining industry, etc., and it is used to collect the gases or aerosol samples like organic, inorganic and metallic toxicant in the air.

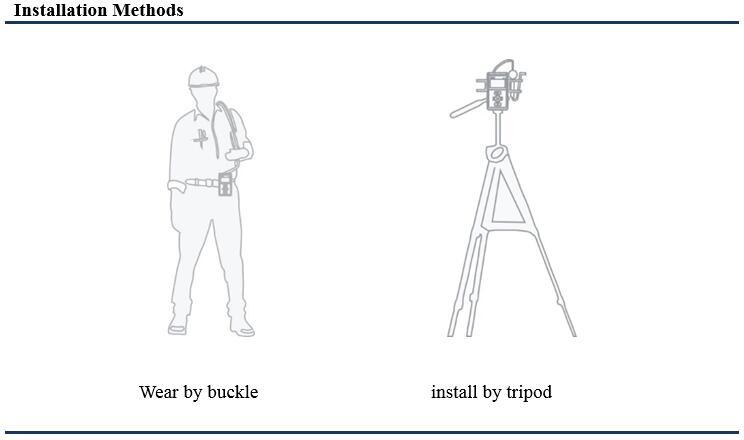

Install Method
Interface
