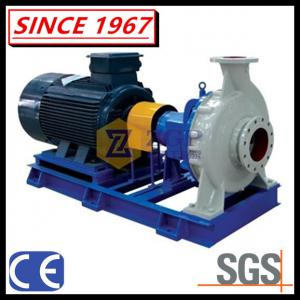

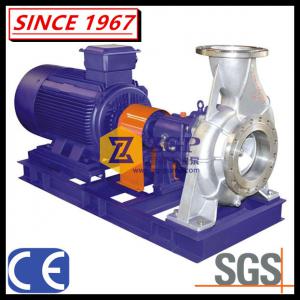

Electrical Horizontal Stainless Steel Chemical Process Centrifugal Pump

Brief introduction:ZXF small capacity chemical process pump is a centrifugal pump of single stage,single suction and cantilever type. It is mainly applicable for processes of petrochemical,chemical,synthetic fiber,fertilizer,power plant,metallurgy,fo

Technical Feature

  • Shanghai, China
  • 11000 PCS/Year
  • L/C, T/T
  • 120 M
  • 6.3 M3/H
  • Motor
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~30

PRIMARY PARAMETERS

Model NO.
HZ
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Radial Split Casing
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Circulating Pump, Chemical Pump
Materials
SS304, SS316, SS316L, Titanium, Monel, 2205, CD4MCU
Manufacturer Level
Top Level
Shaft Sealing
Mechanical Seal and Packing
Pump Arrangement
Pipe Hung, Horizontal
Pump Transmission
Direct Coupled, Gear Box, V-Belts, Universal Joint
Flange Standard
Customized
Motor Brand
ABB, Siemens or Reputed Chinese Brands
Pump Bearing
SKF, NSK or Reputed Chinese Brands
Trademark
Gaofeng
Transport Package
Standard Seaworthy Packing
Specification
Customized
Origin
China
HS Code
8413709990

DETAIL DESCRIPTION

Brief introduction:

ZXF small capacity chemical process pump is a centrifugal pump of single stage,single suction and cantilever type. It is mainly applicable for processes of petrochemical,chemical,synthetic fiber,fertilizer,power plant,metallurgy,food and medicine...And it is suitable to pump clean fluids,fluids of low temperature or high temperature,and corrosive fluids. Its design temperature range is -20ºC~150ºC.

Parameters:

Flow rate:Q=1.6~6.3 (m³/h)
Total head:H=20~120 (m)
Speed:n=1450rpm/2950rpm
S.g.:γ ≤1.84
Temperature:T=-20~150ºC
Diameter:15~32mm

Features:
  1. Comforts to API610,with high reliability,stability and long life.
  2. Special pump passage design to eliminate loss of second reflux,enables the high efficiency at small flow rate.
  3. Cone sealing chamber design with good self flush performance,simplified the auxiliary system of the mechanical seal.
  4. Big capacity oil reservoir and big oil reflux passage prolong the life of bearings.
  5. Heavy duty shaft design with better strength performance.
  6. High universalization,standardization and interchangeability
  7. Various anti-corrosive material for different processes.

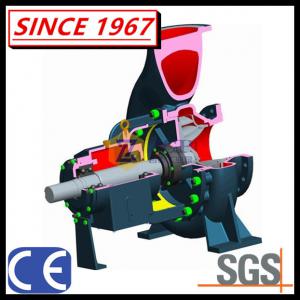

Structure:
  1. Single stage,single suction,cantilever type chemical centrifugal pump.
  2. Both foot mounted and centerline mounted structure are available;Radial split casing.
  3. Bearings are adjustable rotary part installed in the bearing housing.
  4. Pump outlet on one side of casing.
  5. Mechanical seal is adopted as the shaft sealing.
  6. Direct coupled by claw type couplings or flexible couplings.
Configuration:
Electrical Horizontal Stainless Steel Chemical Process Centrifugal Pump

Application:
  1. Mainly applicable for processes of petrochemical,chemical,synthetic fiber,fertilizer,power plant,metallurgy,food and medicine...
  2. Suitable to pump clean fluids,fluids of low temperature or high temperature,and corrosive fluids.
Performance:
Electrical Horizontal Stainless Steel Chemical Process Centrifugal Pump

Electrical Horizontal Stainless Steel Chemical Process Centrifugal Pump
