Main benefits
Main applications
Main design features
Performance range

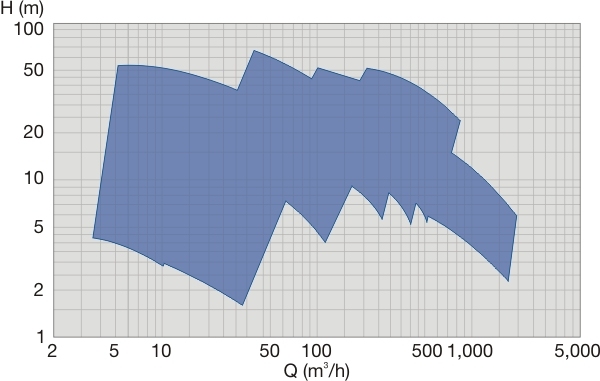

Performance Range Chart, 50 Hz
- Long and trusted experience in all industrial segments
- Excellent performance
- Exceeds standard requirements of international ISO 5199 standard
- Suitable for the most demanding industrial applications
- Unique, patented and superior design features minimize life-cycle costs
- Quick and easy installation, safe operation, easy maintenance and service
Main applications
- Large solids containing liquids
- Large solids containing fibrous slurries
Main design features
- Versatile, reliable, high-efficiency hydraulics and material options
- Innovative PSI shaft sealing solutions for reliable operation and reduced cost
- Reliable and heavy-duty bearing unit with a range of lubrication options
- Modular design minimize the spare part inventory costs
| Capacities | Up to 700 l/s (11,000 US gpm) |
| Heads | Up to 65 m (215 ft) |
| Pressures | Up to 1.6 MPa (230 psi) |
| Temperatures | Up to 190°C (374°F) |
| Discharge sizes | From 25 mm (1 in) to 300 mm (12 in) |
| Maximum speed of rotation | 1,800 rpm |
Performance range
Performance Range Chart, 50 Hz
