Product Description
| Type | Volume (L) | Effective Volume (L) | Mixing time (min/batch) | Rotate speed (r/min) | Motor (Kw) | Capacity (kg/hour) |
| SHR-5 | 5 | 3 | 6-8 | 1500 | 1.1 | 10 |
| SHR-10 | 10 | 7 | 6-8 | 1500 | 3 | 20 |
| SHR-25 | 25 | 20 | 6-8 | 1500 | 5.5 | 50 |
| SHR-50 | 50 | 35 | 6-10 | 750/1500 | 7/11 | 100 |
| SHR-100 | 100 | 75 | 6-10 | 650/1300 | 14/22 | 200 |
| SHR-200 | 200 | 150 | 6-10 | 475/950 | 30/42 | 400 |
| SHR-300 | 300 | 225 | 6-10 | 430/860 | 40/55 | 500 |
| SHR-500 | 500 | 375 | 8-12 | 330/660 | 55/75 | 800 |
| SHR-800 | 800 | 520 | 8-12 | 395/790 | 83/110 | 1400 |
| SHR-1000 | 1000 | 650 | 8-14 | 330/660 | 90/132 | 1600 |
| SHR-1300 | 1300 | 850 | 8-14 | 330/660 | 132/200 | 2100 |
plastic material high speed hot mixer , SRL-W plastic horizontal mixter , plastic mixer , plastic high speed mixter
1.composed of high speed hot mixer, cold mixer...
2.mixing fast and even
3.easily cleaning, compact.

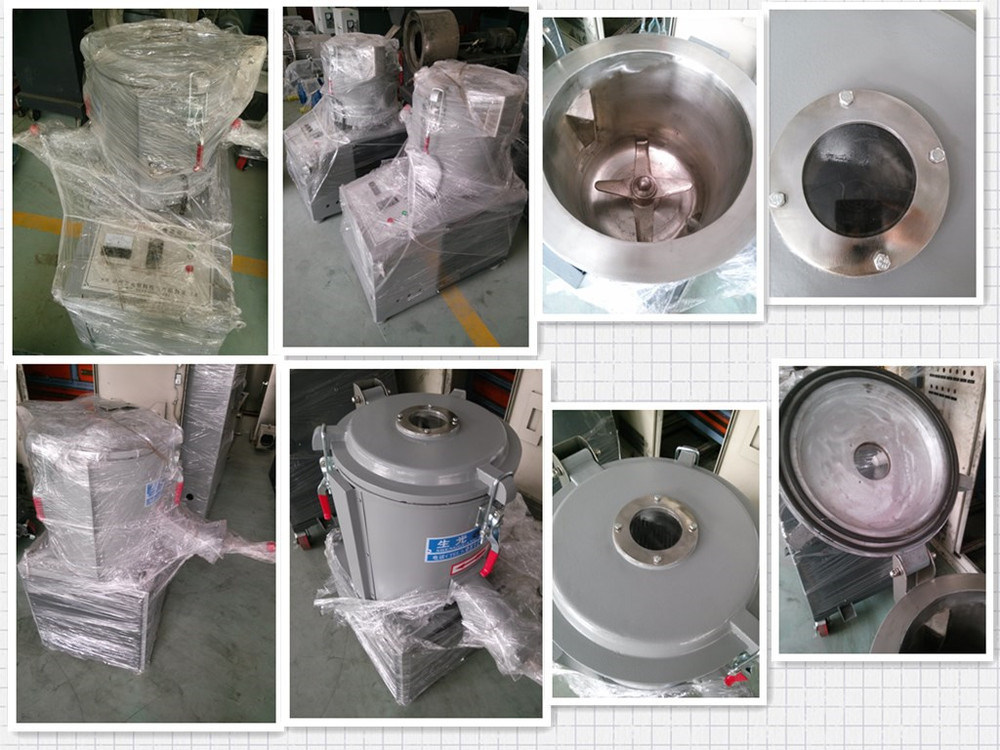

Mainly composed of high speed hot mixer, cold mixer, and electric control components etc. It is widely used in drying mixing blending and cooling the powder, liquid, granulate of plastics, rubber, dyestuffs, foodstuffs, chemical, Caco3 etc.
Application:
SRL mixed machine unit is mainly applied to burdening, mixing, coloring and drying of various resins such as polyethylene, polypropylene and polrvinyl chloride, drying, dehydration and so on before contour machining of engineering plastics such as ABS and polycarbonate, and mixing of phenol and formaldehyde resins.
The machine set combines hot mixing technology with cold mixing technology. Material which has subjected to hot mixing automatically enters the step of cold mixing and is then cooled, so that residual gas is exhausted and agglomeration is prevented.

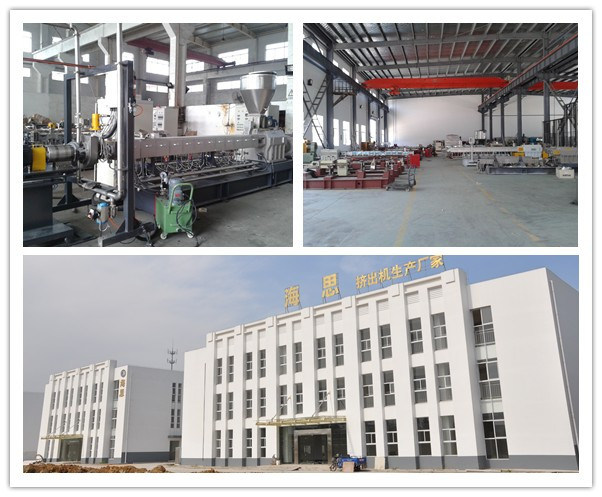

Company information
