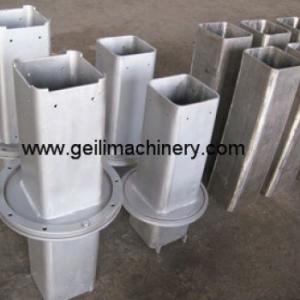

Steel making crystallizer/billet mould plays role in steel making
Working Process:
Mechanical part:
1) Ladle turret/ladle moving car/ladle fixed support (determined by customers)
2) Tundish
3) Tundish car
4) Mould
5) Mould vibration device
6) Vibration drive device
7) Protecting cover for vibration device
8) Secondary coolings spraying frame
9) Secondary coolings spraying pipe

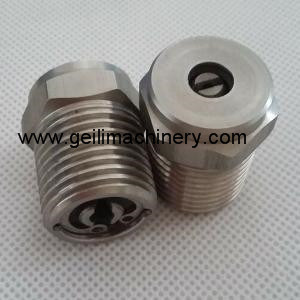

10) Spraying nozzle for secondary cooling water
11) Support roller device for secondary and thirdly cooling
12) Withdrawal straightening machine
13) Transmission device for withdrawal straightening machine
14) Universal joint
15) Rigid dummy bar
16) Dummy bar storage device
17) Guide roller for dummy bar storage device
18) Billet delivery roller table
19) Hydraulic billet pusher
20) Platform for billet collection
21) Flame cutting machine/hydraulic shear (determined by customers)
22) Electrics control system
23) Control system for mould vibration
24) Control system for withdrawal straightening machine
25) Effective control system for dummy bar
28) Control system for billet delivery roller table
29) Control system for billet out
30) Control system for central hydraulic station
31) Steel structure
32) Casting platform
33) Platform for dummy bar storage
Auxiliary system
34) Hydraulic system
35) Discharging device for secondary coolings steam
36) Control system for secondary cooling water
37) Suspended operation box for withdrawal straightening part
38) Special configuration can be provided in accordance with customers requirements
Our Plant
Our Service:1) Providing professional proposal of suitable production line as per customers' invest and capacity requirement
2) Providing turn-key service of designing, manufacturing, installation and commissioning for the whole production lines to meet customers requirement
3) Providing foundation layout and arrangement diagram for your plant
4) Providing technical support. We will send various technical staff to the site until the final products are meet to customers' own request.
5) Good after-sales service will be provided. Our long-term technical service will be provided if you want to adjust the production line, develop new products or improve the equipment.
6) Quality warranty will be promised.
We are one of leading manufacturers in rolling mills and continuous casting machines. With more than 20 years's experience and professional service, we can supply the whole production lines, from induction furnace, CCM to rolling mills, cooling bed and packing.
If you want to build steel-making factory or the whole production lines, or enlarge the production lines, please don't hesitate to contact us for more information. Professional and prompt proposal will be given you when receipt of your details requestSincerely welcome you to come and visit our plant!!!
