JiangYin QinYe Chemical Machinery was established in 2000, locating in the Yangtze River Delta, connecting Taihu Lake in the south, Yangtze River in the North, within two-hour driving distance from Shanghai and Nanjing.
The company is a professional manufacturer integrating mechanical designing, manufacturing, selling and service. The products are widely applied to fine chemicals such as painting, dyeing, new energy material, ink, glue, food, medical, cosmetics, pesticide, paper, leather coating and etc.
QinYe has become the domestic largest manufacturer and R&D center of machinery of dispersing, mixing, and wet nano-grinding in fine chemical industry, and owns multiple patents.
Characteristics:
- Cylinder inside is made of silicon carbide ceramics, of good heat-conducting and wear-resisting property, D90 fineness below 100nm.

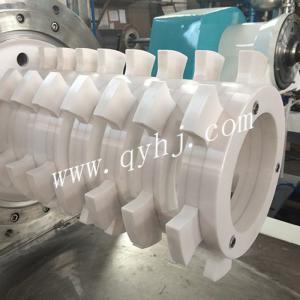

- Grinding rotor is turbo or pin-typed, made of zirconia, with long service life.
- Dynamic and static separately device, with high flow rate, no block, and high grinding efficiency.
- Applicable of PLC, frequency conversion, per customers' requirements.
- Automatic controlled of temperature, pressure and circulating water, good security performance.
- Well-designed complete machine structure, stable running with on shaking and noise.
Technical parameters
NMT
CNMT
| Model | 1.0 | 6 | 10 | 50 | |
| Volume | L | 1.0 | 10 | 18 | 50 |
| Motor power | kw | 4 | 15 | 22 | 37 |
| Medium Size | mm | 0.1-3.0 | 0.1-3.0 | 0.1-3.0 | 0.1-3.0 |
| Weight | kg | 260 | 650 | 850 | 1100 |
| Dimension | mm | 700*700*1300 | 1800*800*1350 | 2000*800*1400 | 2000*1100*1400 |
| Flow Capacity | kw/h | 20-100 | 120-600 | 200-1000 | 500-2500 |
Partner And Customer
Certificate
JiangYin QinYe Chemical Machinery was established in 2000, locating in the Yangtze River Delta, connecting Taihu Lake in the south, Yangtze River in the North, within two-hour driving distance from Shanghai and Nanjing.
The company is a professional manufacturer integrating mechanical designing, manufacturing, selling and service. The products are widely applied to fine chemicals such as painting, dyeing, new energy material, ink, glue, food, medical, cosmetics, pesticide, paper, leather coating and etc.
QinYe has become the domestic largest manufacturer and R&D center of machinery of dispersing, mixing, and wet nano-grinding in fine chemical industry, and owns multiple patents.
