Disc separator is mainly used in the starch production that coming from maize, manioc, wheat, potatoes or other material sources for separating, concentrating and washing of starch and protein. The machine can also be applicable to the pharmaceutical, chemical and food industries for producing of material sources which are adapted to the functions of this machine.
Applications disc separator in wheat starch line:
1.Starch and gluten separation in corn starch line
2.Gluten concentration in corn starch line
3.A and B-starch separation in wheat starch line
4.B-starch concentration in wheat starch line
5.Starch concentration in wheat, potato and cassava starch line

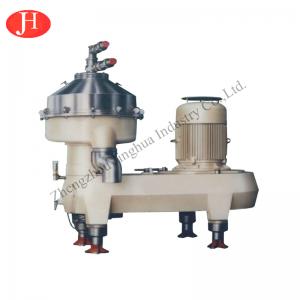

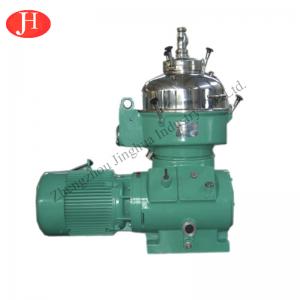

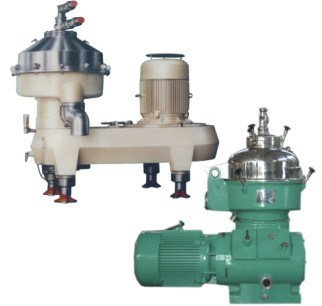

Product show of disc separator in wheat starch line:
Specification of disc separator in wheat starch line:
Main parameter | DPF445 | DPF530 | DPF550 |
Bowl Inner Diameter | 445 mm | 530 mm | 550 mm |
Disc Number | 73 | 80 | 110 |
Bowl Rotating Speed | 5100 rpm | 4650 rpm | 4500 rpm |
Separating Factor | 6480 | 6400 | 6230 |
Disc: Diameter | 310 mm |
| 429 mm |
Throughput Capacity | 35000~40000 L/h | 45000 L/h | 75000 L/h |
Starting Time | ≈2 min | ≈ min | ≈4 min |
Motor Power | 37 Kw | 37 Kw | 55 Kw |
Nozzle | 10 | 10 | 12 |
Overall Dimension (L×W×H) mm | 1503×1129×1516 | 1430×1174×1544 | 2044×1320×1954 |
Weight (kg) | 1100 | 1550 | 2100 |
Main parameter | DPF500 | DPF800 | DPF1000 |
Bowl Inner Diameter | 470 mm | 810 mm | 1000 mm |
Bowl Rotating Speed | 5100 rpm | 3000 rpm | 2700 rpm |
Nozzle | 10 | 20 | 30 |
Separating Factor | 6900 | 4950 | 4150 |
Throughput Capacity | 50000 L/h | 130000 L/h | 240000 L/h |
Motor Power | 37 Kw | 110 Kw | 250 Kw |
Overall Dimension (L×W×H) mm | 2013×786×1714 | 2808×1575×2319 | 3950×2050×3050 |
Weight | 1900kg | 6550kg | 1000kg |
Company Information
Zhengzhou Jinghua Industry Co.,Ltd. is a specialized starch engineering technology company that is engaged in a variety of starch engineering design , equipment manufacture ,engineering installation and commissioning , technical staff training and so on .
Depending on the unique advantage and strong strength of Henan University of Technology, ZZJH produces machine making all kinds of starch . Such as potato starch making machine , sweet potato starch machine , cassava starch machine , garri machine , corn starch machine .
Our customers
Our service
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout .
Sales service
1.Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services;
After-sales service
1. Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3. One year warranty and Providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to service machinery overseas.
6. Provide English Version of Installation/Operation/Service/Maintenance Manual.
Contact us
Welcome to visit our factory!
Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
Website:http://www.starchmachine.com
China
