100LPH Milk cream separator centrifugal separator
Milk cream separator comes with different working capacity (flow rate) ranging from 50L/H to 8000L/H. 50L/H milk cream separator usually used in small farm or home use. 100L/H and 200LPH milk cream separator are widely used in milk shop to separate cream from fresh milk. After separation, you get skimmed milk and milk fat or cream.
500L to 1000L per hour milk cream separator are commonly used in milk factory and yogurt or cheese processing lines.
2000LPH milk cream separator also widely adopted in dairy processing line all over the world.
Here below are the main specification of our 50L and 100L cream separators

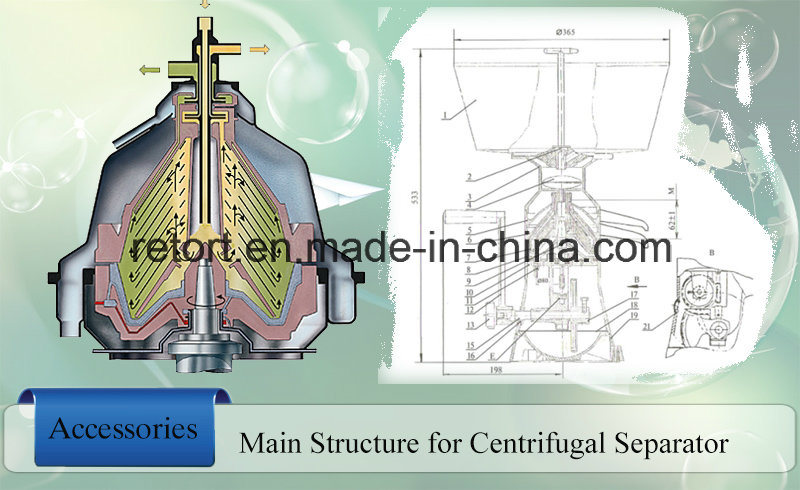

Centrifugal separator structure
Disk separators adopt a stack of conical disks to create a large equivalent clarification area within a relatively small bowl volume. These separators are likewise available as versions for clarification and separation.
1000LPH fresh milk separator can be designed into 3 phase separation.
As we all know, in dairy processing line, cream separator need to clean every period of tine such as one batch, one shift or every day. 1T flow rate fresh milk separator can be designed into manual clean or automatic clean.
For separators with 2000liter flow rate or more, automatic cleaning function is default configuration.
Separators with self-cleaning bowl are able to periodically discharge the separated solids at full speed. For this purpose, several ports are spaced evenly around the bowl periphery. These ports are opened and closed by means of a movable sliding piston located in the bowl bottom. The opening mechanism is actuated hydraulically. Water is normally used as a control medium; in special cases, low-viscous organic fluids can also be used.
This opening mechanism enables both partial ejections and total ejections. Total ejections involve discharging the entire contents of the bowl with closed feed valve. In the case of a partial ejection, by contrast, only part of the bowl contents is ejected with open feed valve.
Packing and Package of our milk cream separator
100LPH milk cream separators usually send to buyers via air express while 200L cream separator and other big capacity separation equipment such as 500L, 1000L separator and 2000L separators will need to use sea transportation due to its weight and dimension.
For more detailed information of our hot sell milk separator, please get in touch with us directly.
Milk cream separator comes with different working capacity (flow rate) ranging from 50L/H to 8000L/H. 50L/H milk cream separator usually used in small farm or home use. 100L/H and 200LPH milk cream separator are widely used in milk shop to separate cream from fresh milk. After separation, you get skimmed milk and milk fat or cream.
500L to 1000L per hour milk cream separator are commonly used in milk factory and yogurt or cheese processing lines.
2000LPH milk cream separator also widely adopted in dairy processing line all over the world.
Here below are the main specification of our 50L and 100L cream separators
| Model | S50 | S100 |
| Capacity | 50 L/H | 100 L/H |
| Fat percentage after separation | ≤0.03% | ≤0.03% |
| Rotate speed | 1:3~1:12 | 1:3~1:12 |
| Separating Value | 8500~9700rpm | 10500~11500rpm |
| Type of drive | 4000 | 6000 |
| Motor | DC Motor | DC motor |
| Measurement | 480×340×280 | 580×390×370 |
| Weight | 15 KGS | 30 KGS |
| Lead time | 10 days | 10 days |
| Price FOB shanghia | Price listed in this site may not be the latest price for small milk separator. For the latest separator price, please get in touch with us directly |
Disk separators adopt a stack of conical disks to create a large equivalent clarification area within a relatively small bowl volume. These separators are likewise available as versions for clarification and separation.
1000LPH fresh milk separator can be designed into 3 phase separation.
- Skimmed milk
- Cream or milk fat
- Dust and solid item in fresh milk
As we all know, in dairy processing line, cream separator need to clean every period of tine such as one batch, one shift or every day. 1T flow rate fresh milk separator can be designed into manual clean or automatic clean.
For separators with 2000liter flow rate or more, automatic cleaning function is default configuration.
Separators with self-cleaning bowl are able to periodically discharge the separated solids at full speed. For this purpose, several ports are spaced evenly around the bowl periphery. These ports are opened and closed by means of a movable sliding piston located in the bowl bottom. The opening mechanism is actuated hydraulically. Water is normally used as a control medium; in special cases, low-viscous organic fluids can also be used.
This opening mechanism enables both partial ejections and total ejections. Total ejections involve discharging the entire contents of the bowl with closed feed valve. In the case of a partial ejection, by contrast, only part of the bowl contents is ejected with open feed valve.
Packing and Package of our milk cream separator
- For 50LPH milk cream separator, the package will be paper case.
- 100Liter per hour separator use wooden package
100LPH milk cream separators usually send to buyers via air express while 200L cream separator and other big capacity separation equipment such as 500L, 1000L separator and 2000L separators will need to use sea transportation due to its weight and dimension.
For more detailed information of our hot sell milk separator, please get in touch with us directly.
