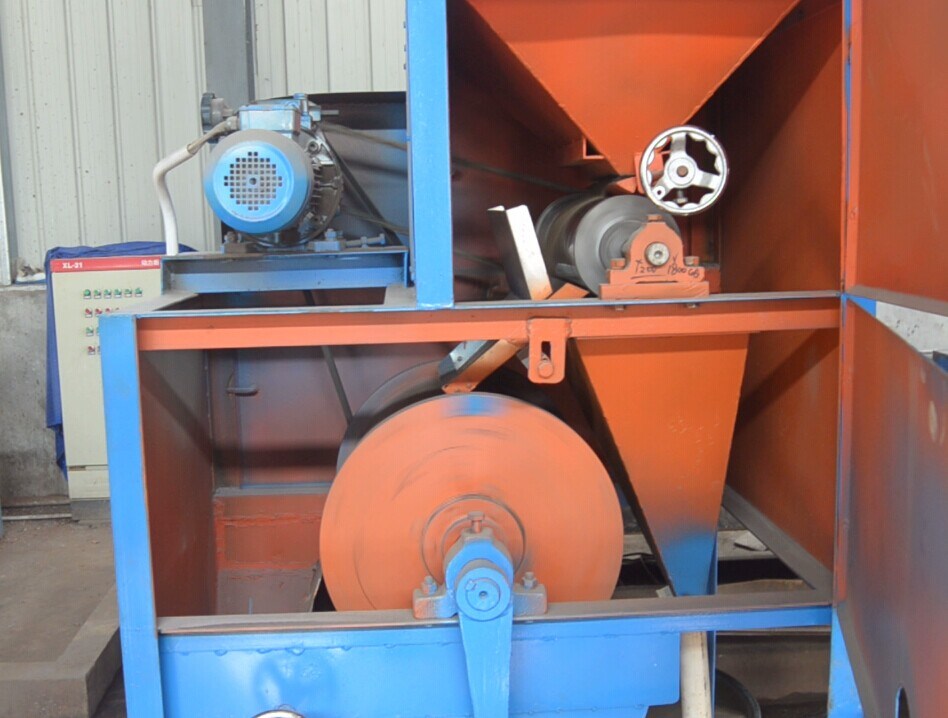

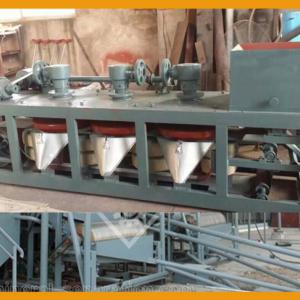

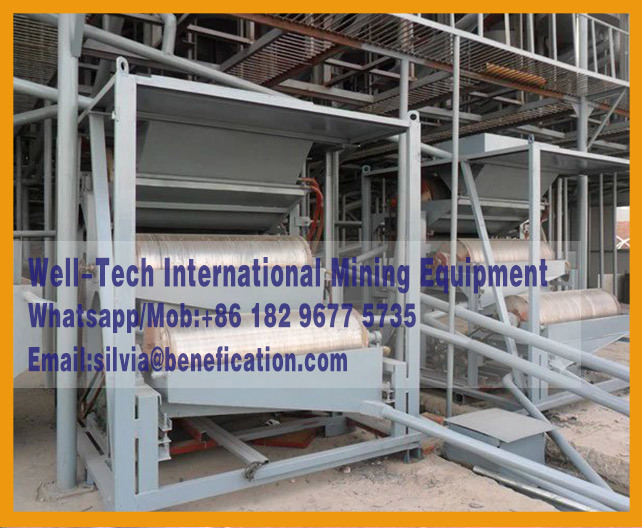

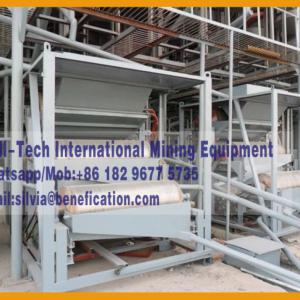

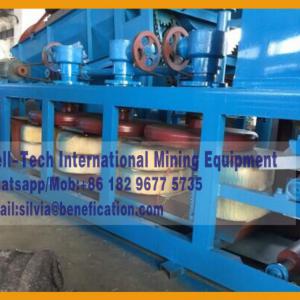

Three Disc Dry Magnetic Separator
Working Principle
This machine consists of two sections, i. e. Host unit (mechanical) and electrical unit (control cabinet). When the minerals to be separated are loaded into the bin, adjust the clearance between magnetic disc tooth tip and conveying belt to a desirable range (generally about 1mm) and adjust the DC current of control cabinet to appropriate value (generally 4 6 A), depending on the mineral properties, particle size and separation requirements. Feed the materials into the permanent magnetic feeding drum, where the high-conductivity minerals will be removed. Through a feeding plate, the minerals will be uniformly sprayed onto the belt conveyor (The mineral thickness generally between 0.2 0.8mm). When the machine is running, the belt conveyor will send the minerals down below the magnetic disc, where the paramagnetic minerals will be soon absorbed onto the tip of magnetic teeth. When the magnetic disc rotates to the low-intensity magnetic area, they will fall into the concentrate bin under the function of their gravity weight and centrifugal force. The diamagnetic minerals will be conveyed to the tailings bin via belt conveyor and discharged).
Application
This equipment is mainly used for dry separation of weak magnetic minerals, e. G. Tungsten, titanium, manganese and rare earth elements, which have a specific magnetization strip >40× 10
Technical Specifications
Processing capacity: 1~1.8(t/h)
Particle Size of Processing: <6mm
Magnetic Field Intensity: 18000guass
Diameter of Magnetic Disc: 885mm
Rotating Speed of Magnetic Disc: 30, 42, 50(r/min)
Speed of Belt Conveyor: 17, 19, 21 (m/min)
Exciting Current: 0~6A
Exciting Coil: 8~10 (double glass fiber
Round copper wire)
Exciting Power: 0~2kw
Coil Temperature: <80
Complete Power Consumption: 4 kilowatts
Power Supply: Three-phase four
Working Length: Continuously
Overall Size: 2980× 830× 850mm
Weight: 3600kg
Provide high quality, best service and competitive price mining plants with flowchart and design diagram. Such as shaking table, jig, gold trommel, gold sluice, rotary screen, sand washer, spiral chutes, screening equipment, stone crusher, rock crusher, impact crushers, sand cleaning machine, belt conveyor, vibration screen etc which passed ISO9001: 2008 Certification.
We can make a special mineral processing approach for you with least cost & simplest way. We also provide all small/lab testing mining equipment, welcome to contact me for the details. Please do not hesitate to contact for possible business co-operation on below E-mail.
Mobile: +86-18296775735
