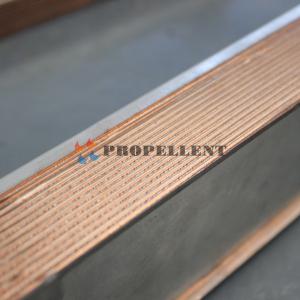

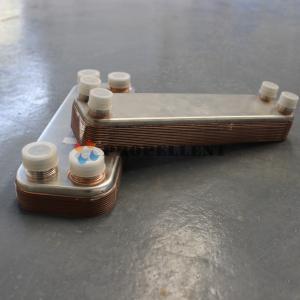

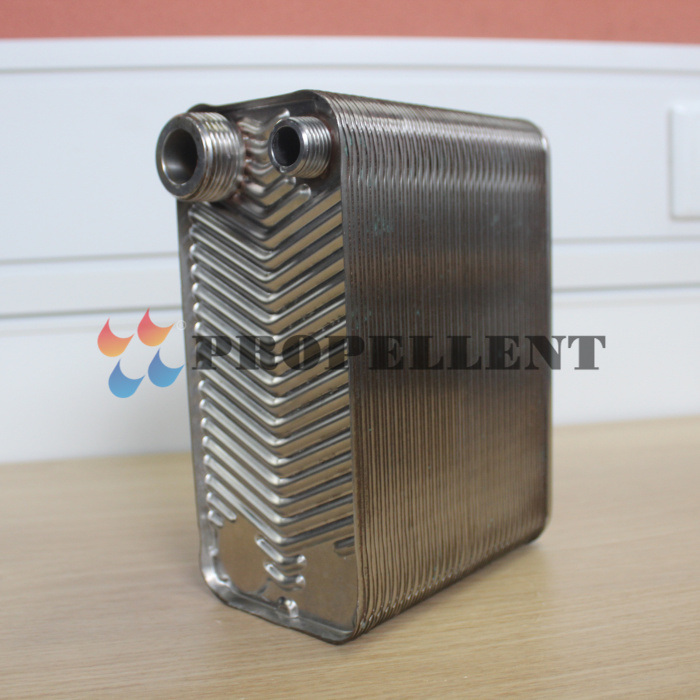

Brazing plate heat exchanger is composed of a lot of stainless steel plates and front and rear covers, it is separated copper sheet (or nickel) with high purity and brazed in high temperature furnace. In order to achieve the best heat transfer effect, All corrugated plates will be combined with velocity heat transfer plate with high, middle and low level according to the clients' requirements. It has a compact structure without gasket and outer frame to operate in the condition of high temperature and high pressure.

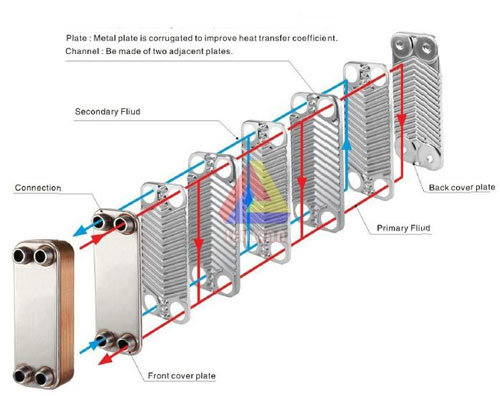

features:Brazing plate heat exchanger is a kind of corrugated welding plate specially designed to improve the heat transfer coefficient to reduce potential pollution. The whole machine is composed of corrugated channel plate, they combine to a complex soldering heat exchanger channel to distribute cool and heat medium. The cool and heat medium is divided into the both sides of corrugated plate, the two mediums will be as close as possible but do not mix. The heat will be transmitted from one medium to another medium. when they flow side by side.
Model:

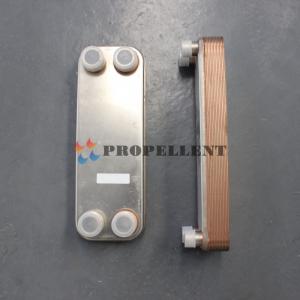

Copper Brazed Plate Heat Exchanger
| Material | Stainless steel(304.316) |
| Welded Material | Copper.Ni |
Model:
Copper Brazed Plate Heat Exchanger
| Product Model | Height (mm) | Width (mm) | Thickness (mm) | Vertical Pitch (mm) | Horizontal Pitch (mm) | Single Channel Volume(L) | Weight (kg) | Heat Transfer Area (m2) | Maximum Flow (m3/h) | Pessure Level (bar) | Maximum Number of Plates | Maximum Size of Welded Pipe | Minimum Size of Welded Pipe | Maximum Size of Outer-Spiral-Fin Tube | Minimum Size of Outer-Spiral-Fin Tube | Maximum Size of Internally-Spiral-Fin Tube | Minimum Size of Internally-Spiral-Fin Tube |
| PLQ014 | 208 | 78 | 2.30N+9 | 170 | 40 | 0.02 | 0.4+0.04*N | 0.014*(N-2) | 4 | 30/45 | 100 | 7/8" | 3/8" | 3/4" | 1/2" | 3/4" | 1/2" |
| PLQ020 | 317 | 78 | 2.30N+9 | 280 | 42 | 0.04 | 1.0+0.08*N | 0.020*(N-2) | 4 | 30/45 | 100 | 7/8" | 3/8" | 3/4" | 1/2" | 3/4" | 1/2" |
| PLQ026 | 310 | 111 | 2.40N+9 | 250 | 50 | 0.05 | 1.0+0.12*N | 0.026*(N-2) | 18 | 30/45 | 120 | 1 1/2" | 3/8" | 1 1/2" | 1/2" | 1" | 1/2" |
| PLQ030 | 325 | 95 | 1.55N+9 | 269 | 39 | 0.03 | 1.0+0.09*N | 0.030*(N-2) | 10 | 30/45 | 100 | 1 1/8" | 3/8" | 1" | 1/2" | 1" | 1/2" |
| PLQ050A | 525 | 111 | 2.40N+9 | 466 | 50 | 0.09 | 2.4+0.2*N | 0.050*(N-2) | 15 | 30/45 | 120 | 1 3/8" | 3/8" | 1 1/4" | 1/2" | 1" | 1/2" |
| PLQ050B | 525 | 111 | 2.40N+9 | 466 | 50 | 0.09 | 2.4+0.2*N | 0.050*(N-2) | 18 | 30/45 | 120 | 1 1/2" | 3/8" | 1 1/2" | 1/2" | 1" | 1/2" |
| PLQ060 | 526 | 119 | 2.30N+9 | 470 | 63 | 0.11 | 2.4+0.17*N | 0.060*(N-2) | 18 | 30/45 | 100 | 1 5/8" | 5/8" | 1 1/2" | 1/2" | 1" | 1/2" |
| PLQ095A | 616 | 191 | 2.40N+11 | 519 | 92 | 0.21 | 5.2+0.39*N | 0.095*(N-2) | 35 | 30/45 | 160 | 2 1/8" | 5/8" | 2" | 1 1/2" | 2" | 1/2" |
| PLQ095B | 616 | 191 | 2.80N+11 | 519 | 92 | 0.25 | 5.5+0.39*N | 0.095*(N-2) | 35 | 30/45 | 180 | 2 1/8" | 5/8" | 2" | 1 1/2" | 2" | 1/2" |
| PLQ100A | 490 | 250 | 2.20N+11 | 400 | 155&166 | 0.19 | 6.5+0.40*N | 0.117*(N-2) | 45 | 30/45 | 240 | 2 5/8" | 5/8" | 2 1/2" | 1/2" | 2" | 1/2" |
| PLQ100B | 490 | 250 | 2.85N+11 | 378 | 138 | 0.25 | 6.5+0.42*N | 0.136*(N-2) | 60 | 30/45 | 240 | 3 1/8" | 5/8" | 3" | 1/2" | 2" | 1/2" |
| PLQ110 | 528 | 246 | 2.36N+13 | 456 | 174 | 0.21 | 7.2+0.52*N | 0.114*(N-2) | 45 | 30/45 | 250 | 2 1/8" | 5/8" | 2 1/2" | 1/2" | 1 1/2" | 1/2" |
| PLQ190 | 696 | 307 | 2.65N+11 | 567 | 179 | 0.43 | 10.0+0.51*N | 0.190*(N-2) | 150 | 30/45 | 300 | 3 7/8" | 1 1/8" | 3" | 2" | 2" | 1" |
| PLQ210 | 739 | 321 | 2.78N+13 | 628 | 232&211 | 0.41 | 13.0+0.82*N | 0.210*(N-2) | 100 | 30/45 | 250 | 3 1/8" | 5/8" | 3" | 1 1/2" | 2" | 1/2" |
| PLQ300 | 1008 | 365 | 2.62N+16 | 872 | 229 | 0.65 | 57.0+1.26*N | 0.300*(N-2) | 150 | 20/30 | 280 | 3 7/8" | 1 1/8" | 3" | 2" | 2" | 1" |
Nickle Brazed Plate Heat Exchanger
| Product Model | Height (mm) | Width (mm) | Thickness (mm) | Vertical Pitch (mm) | Horizontal Pitch (mm) | Single Channel Volume (L) | Weight (kg) | Heat Transfer Area (m2) | Maximum Flow (m3/h) | Pessure Level (bar) | Maximum Number of Plates | Maximum Size of Welded Pipe | Minimum Size of Welded Pipe | Maximum Size of Outer-Spiral-Fin Tube | Minimum Size of Outer-Spiral-Fin Tube | Maximum Size of Internally-Spiral-Fin Tube | Minimum Size of Internally-Spiral-Fin Tube |
| PLQ014N | 194 | 80 | 2.2N+11 | 154 | 40 | 0.03 | 0.67+0.05*N | 0.014*(N-2) | 4 | 15/20 | 80 | 7/8" | 1/2" | 3/4" | 1/2" | 1/2" | 1/2" |
| PLQ026N | 306 | 106 | 2.4N+9 | 250 | 50 | 0.06 | 1.48+0.12*N | 0.026*(N-2) | 10 | 15/20 | 80 | 1 1/8" | 1/2" | 1 1/4" | 1/2" | 1" | 1/2" |
| PLQ030N | 304 | 124 | 2.4N+9 | 250 | 70 | 0.07 | 1.65+0.13*N | 0.030*(N-2) | 18 | 15/20 | 80 | 1 3/8" | 1/2" | 1 1/2" | 1/2" | 1" | 1/2" |
| PLQ050N | 522 | 106 | 2.4N+10 | 466 | 50 | 0.1 | 3.10+0.22*N | 0.050*(N-2) | 18 | 15/20 | 80 | 1 1/8" | 1/2" | 1 1/4" | 1/2" | 1" | 1/2" |
| PLQ052N | 504 | 124 | 2.4N+10 | 444 | 64 | 0.11 | 3.49+0.24*N | 0.052*(N-2) | 18 | 15/20 | 80 | 1 3/8" | 1/2" | 1 1/2" | 1/2" | 1 1/4" | 1/2" |
| PLQ095N | 613 | 186 | 2.4N+14 | 441 | 78 | 0.21 | 8.04+0.40*N | 0.095*(N-2) | 45 | 15/20 | 80 | 2 1/8" | 1/2" | 2 1/2" | 1" | 1 1/2" | 1" |
| PLQ110N | 528 | 246 | 2.4N+14 | 456 | 174 | 0.23 | 8.04+0.48*N | 0.110*(N-2) | 45 | 15/20 | 80 | 2 1/8" | 1/2" | 2 " | 1" | 1 1/2" | 1" |
1.Reference data only, The accurate data is subject to the product design book and product drawing of our company
2.Above products is normal type of our company,we also can provide some non-standard customized products, For more details please contact our company technology department.
3.Our company can provide the clamp, flange and other non-standard adapter tubes according to the clients' requrements, For more details please contact our company technology department.
Our Certification:
Propellent, is he Booster and leader of effective heat exchange technology in all industries.Our branch companied located in Shandong province, Beijing province, Anhui province, Dalian, Tianjin, and Xinjiang provide one-stop heat exchange technology services to industrial and enterprise users all over the country. Meanwhile, Propellent actively explore the global industrial market, we have achieved industrial heat exchange technology and finish turn-key projects in the African market such as Ethiopia, Zambia, guinea and Southeast Asian markets such as Vietnam, Thailand, Laos, Cambodia, Also, we have realized heat exchange equipment sales in industrial markets of developed countries, such as Germany, the United States, Hungary, the Czech republic.
Propellent can be able to offer a full range of heat exchange design calculation in full working condition. We have accumulated rich experience in heating, cooling and waste heat recovery for complex process mediums. Propellent never views separately in the selection of heat exchange equipment applications, but put it in the whole process production line, Therefore, we find the best balance to consider the whole initial investment in equipment and long-term operating costs. We optimize manufacturing processes of our clients and reduce the use of fresh energy to provide our customers maximum value when we find reasonable main points in high heat transfer efficiency and pressure loss.
We will look for insights into your technology and have an effective communication with your engineer to settle down a perfect solution, this solution will be more accurate and apply to users' working condition, it will be in favor of reducing purchase cost and energy consumption (water, electricity and gas)
Our technical engineer can provide professional selection solution and drawings for our clients by calculation software according to users' working condition, we will select fitting solution to give you stable and efficient service.
We will be more responsible for your working conditions to reduce your equipment procurement costs and energy consumption of your process operation(water, electricity, gas).
